Electromagnetic Flowmeter
Precision Flow Measurement for Every Conductive Liquids
Whether your process fluid is drinking water, sulfuric acid, or abrasive slurry—the HBLD series delivers ±0.5% accuracy across all pipe diameters, installation types, and process conditions, and no sensitivity to changes in fluid density, viscosity, or temperature.
Request for QuoteTechnical Consultation
Technology Selection
Is Electromagnetic Right for Your Application?
Confirm your technology before you specify a meter — because the wrong meter is more expensive than no meter.
Choose magnetic flowmeter when
Any fluid with conductivity ≥ 5 μS/cm
Your fluid properties fluctuate — and accuracy can't
Your process cannot tolerate pressure drop
Your fluid contains suspended solids, abrasives or fibers
Your flow rate varies widely
Large pipe diameter — DN300 and above
Consider an alternative technology when
Any non-conductive liquids or < 0.5 μS/cm
Any gaseous medium
Mass flow (not volumetric) is required
Significant bubble entrainment or foam
Existing pipe, no welding or cutting allowed
High Differential Pressure Applications
Not sure whether magnetic flowmeter fits your application?
Submit your medium and process conditions — we'll confirm the right technology, or recommend a better fit solution for you.
Request Selection Help
Find Your Installation Match
Explore our electromagnetic flowmeter series
Accurate Flow Measurement Starts with an Accurate Specification
Integrated Magnetic Flowmeter
Compact all-in-one design for reliable flow measurement in industrial pipelines.
Pipe Size
DN100~DN3000
Accuracy
±0.5% (±0.2% opt.)
Pressure
0.6~42 MPa
Protection
IP65/IP67/IP68
- Ideal for water treatment, municipal water, chemical processing and general industrial applications.

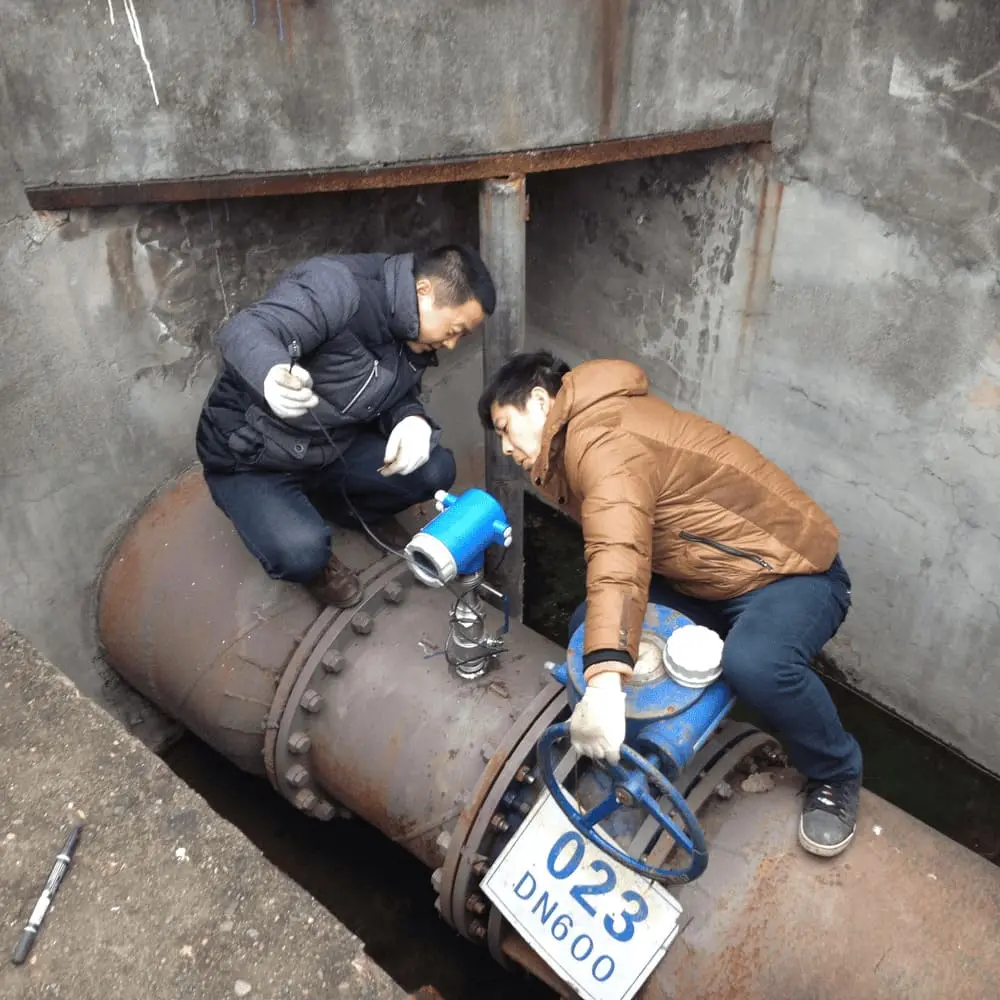

Insertion Magnetic Flowmeter
Cost-effective flow monitoring for large pipelines without full pipe modification.
Pipe Size
DN100~DN3000
Accuracy
±1.5% ~ ±2.5%
Pressure
0.6~42 MPa
Protection
IP65/IP67/IP68
- Best for large-bore existing main, retrofit metering, cast iron and cement pipes
Split-Type Magnetic Flowmeter
Design for installations with vibration, heat, or limited access.
Pipe Size
DN100~DN3000
Accuracy
±0.5% (±0.2% opt.)
Max Pressure
Up to 42 MPa
Separation
Up to 100m
- Best suited for high-temperature zones, hazardous areas, buried pipelines

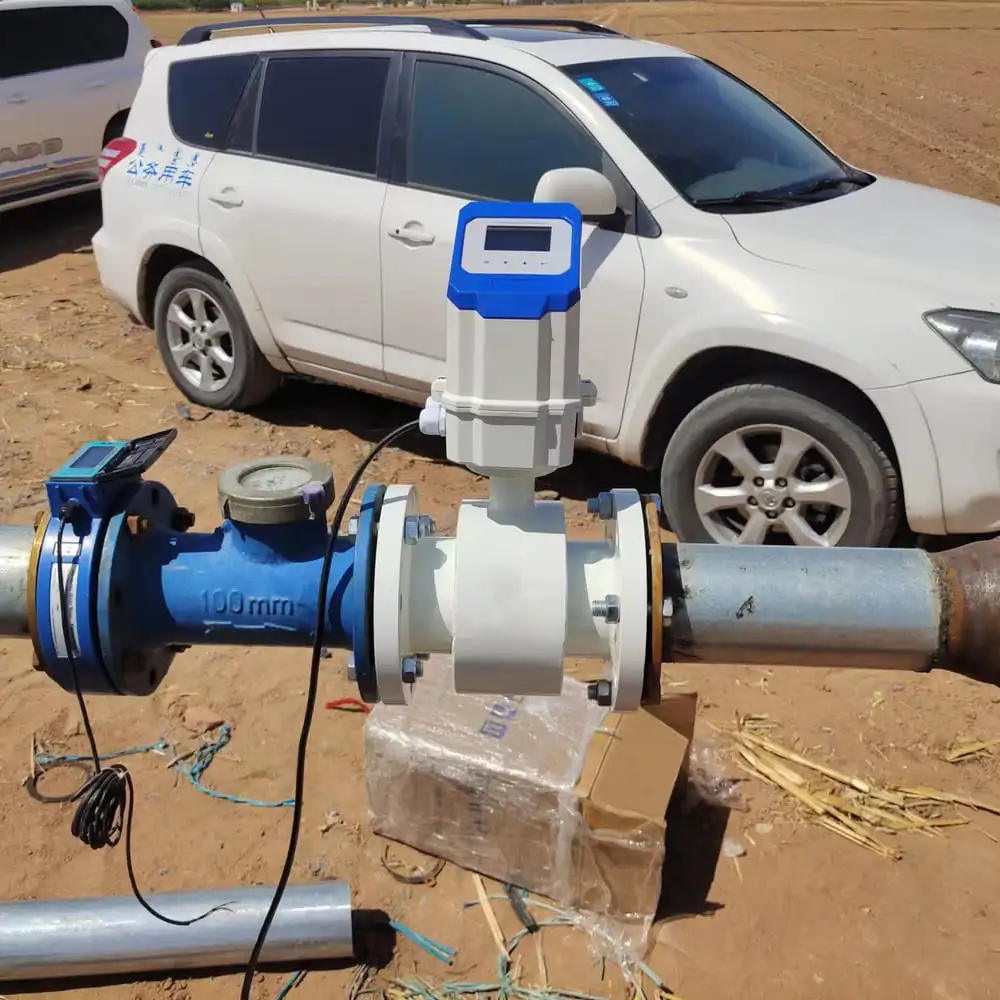

Battery-Powered Magnetic Flowmeter
Independent power design for remote locations without external electrical supply
Pipe Size
DN100~DN3000
Accuracy
±0.5% / ±1.5%
Output
RS485 + GPRS
Power
Battery, no grid
- Ideal for remote irrigation, rural distribution networks, buried meter monitoring.
Threaded Magnetic Flowmeter
Design for small-bore lines where space and connection simplicity are constraints.
Pipe Size
DN6~DN100
Accuracy
±0.5%
Pressure
0.6~4.0 MPa
Protection
PTFE / F46 / PFA
- Best for laboratory, pharmaceutical dosing, reagent lines, small-bore process
Sanitary Magnetic Flowmeter
Hygienic flow measurement designed for strict cleanliness and process control.
Pipe Size
DN5~DN200
Accuracy
±0.5%
Lining
PTFE/F46/PFA
Cleaning
CIP/SIP ready
- Best suited for high-temperature zones, hazardous areas, buried pipelines
Scraper Magnetic Flowmeter
Maintaining measurement accuracy in scaling and fouling media.
Pipe Size
DN50~DN600
Accuracy
±0.5%
Design
No Liner+Scraper
Medium
Fouling Fluids
- Pefect for Scaling slurries, fouling media, adhesive liquids, wastewater
Magnetic BTU / Energy Meter
Combined heat and flow measurement for energy accounting
Pipe Size
DN10~DN3000
Accuracy
±0.5%
Temp Sensors
PT100/PT1000
Measurement
Thermal Energy
- Best for district heating/cooling, HVAC metering, heat exchanger monitoring
Slurry Magnetic Flowmeter
Hygienic tri-clamp design for food, beverage, and pharma
Pipe Size
DN10~DN3000
Accuracy
±0.5%
Temp Sensors
PT100/PT1000
Measurement
Thermal Energy
- Best for district heating/cooling, HVAC metering, heat exchanger monitoring

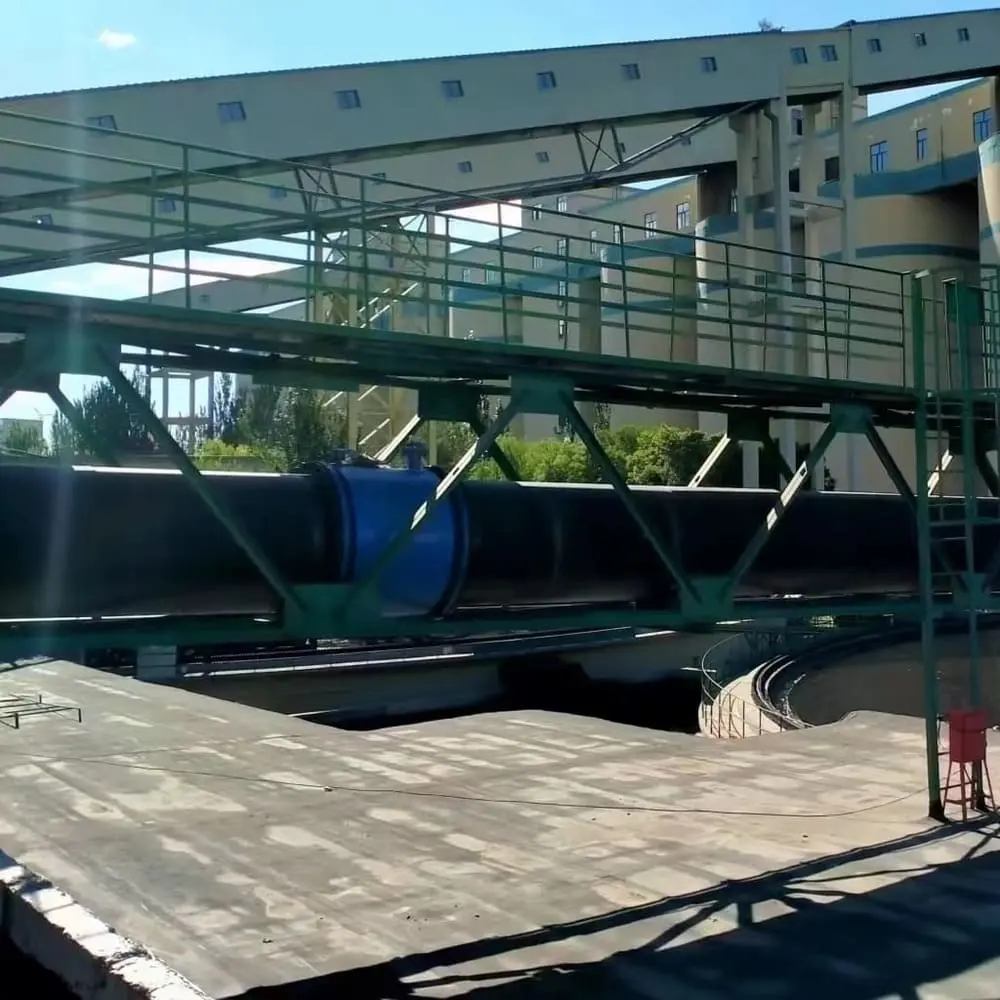

Partially Filled Magnetic Flowmeter
Accurate area-velocity measurement without requiring a full pipe or positive pressure.
Pipe Size
DN100 ~ DN3000
Accuracy
±1.5% ~ ±2.5%
Pressure
0.6 ~ 42 MPa
Protection
IP65/IP67/IP68
- Large transmission mains, retrofit measurement, cement pipes
Get Accurate Flow Measurement
Specify the Right Meter for Your Application
Our engineers will review your process conditions and recommend the optimal electromagnetic flowmeter variant — with a specification sheet and quotation within 24 hours.
Industry Applications
Industries & Applications
Proven Across Every Sector That Moves Conductive Liquid
Chemical & Petrochemical
Acid and alkali distribution lines, solvent transfer, reagent dosing, chemical blending systems, and process fluid accounting.
Food & Beverage
Liquid ingredient metering, dairy processing, brewing and fermentation, juice concentration lines, and CIP circuit flow verification.
Pharmaceutical & Biotech
Purified water and WFI distribution, buffer and media preparation, formulation dosing, and cleaning validation flow measurement.
HVAC & District Energy
Building energy management, district heating and cooling networks, and chiller plant metering, etc
Mining & Metallurgy
Ore slurry and concentrate pipelines, tailings transfer, process water circuits, and mineral separation feed lines.
Pulp & Paper
Pulp stock lines, white water circulation, chemical additive metering, and effluent treatment flow monitoring.
Power & Energy
Boiler feedwater, cooling water makeup, demineralized water circuits, and district heating and cooling distribution networks.

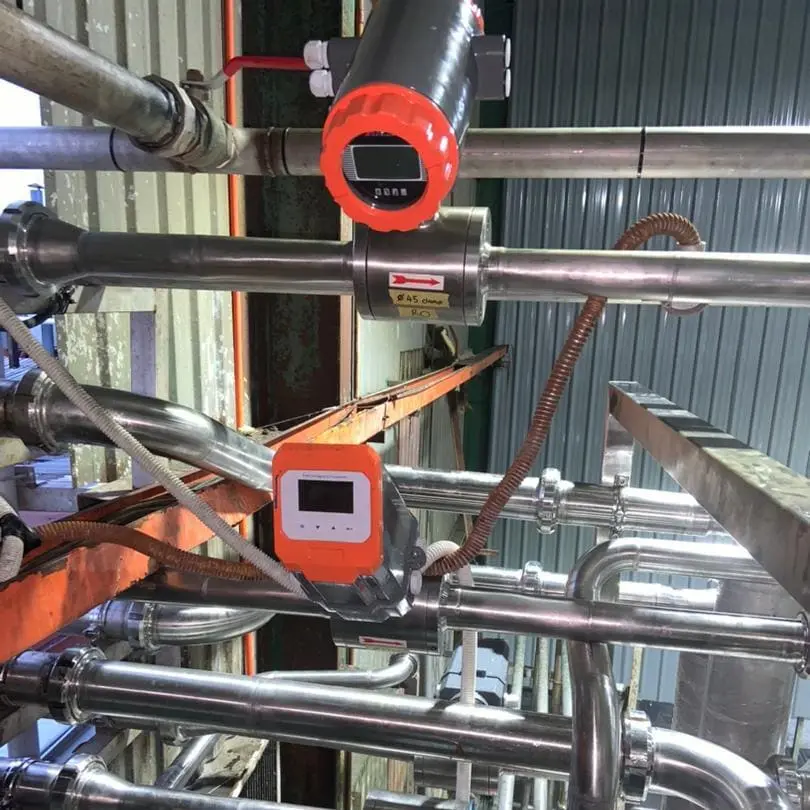

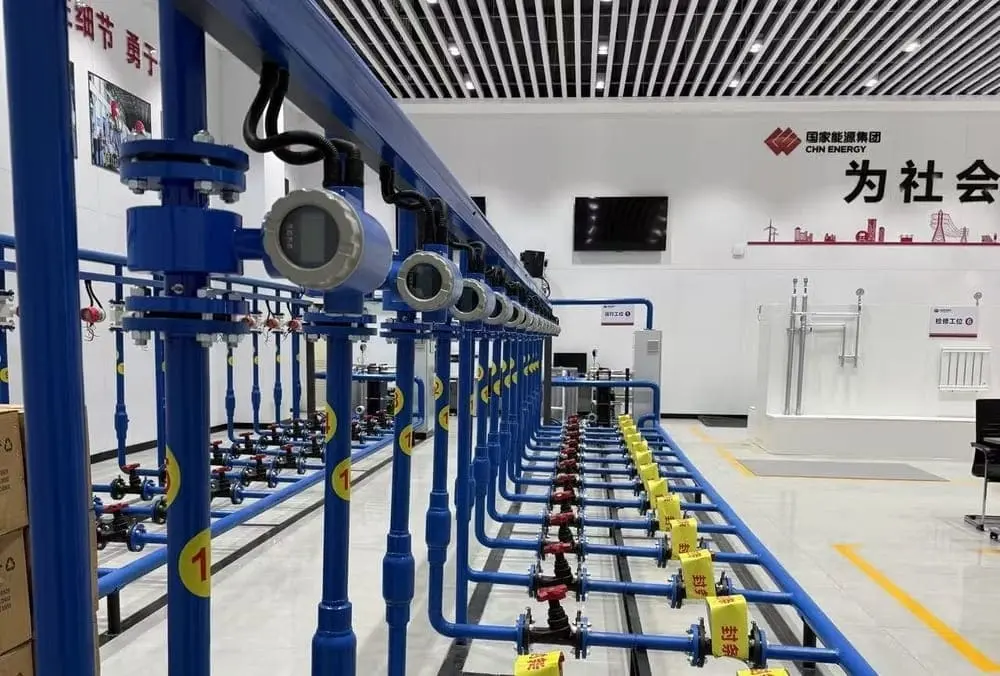

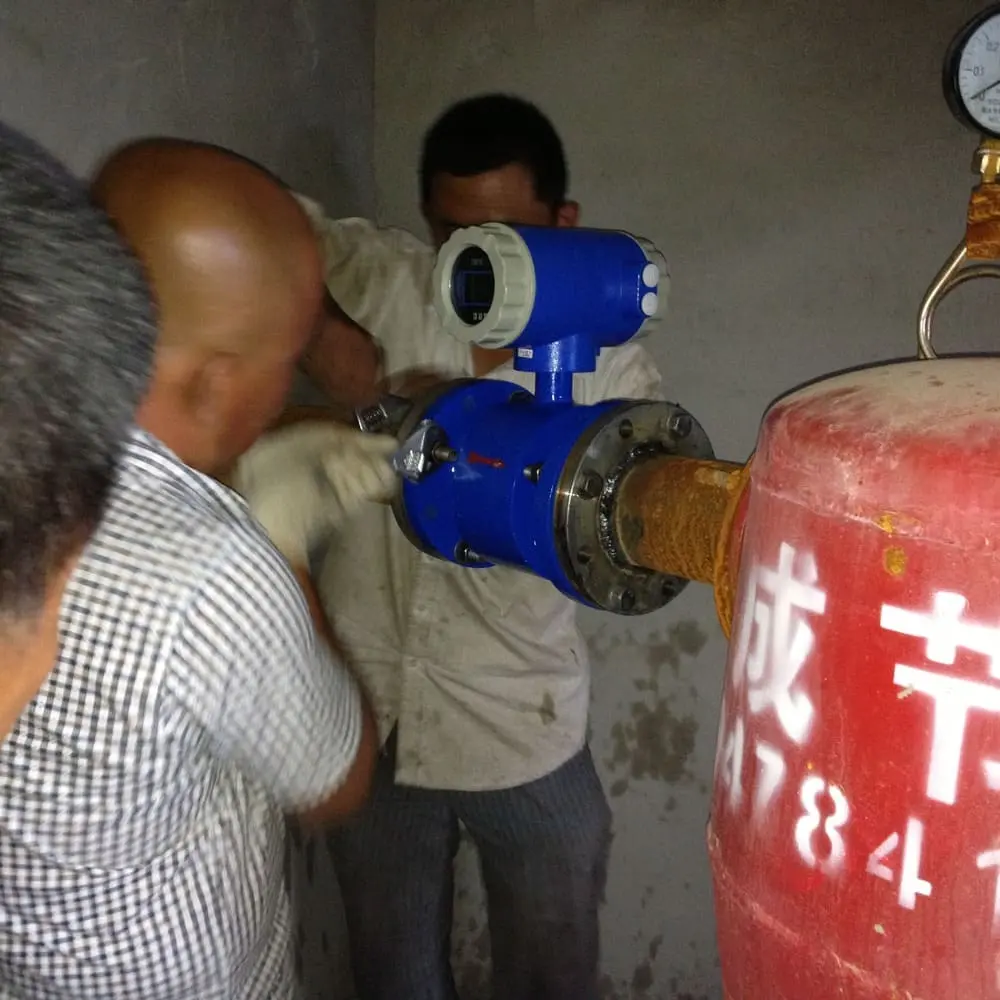

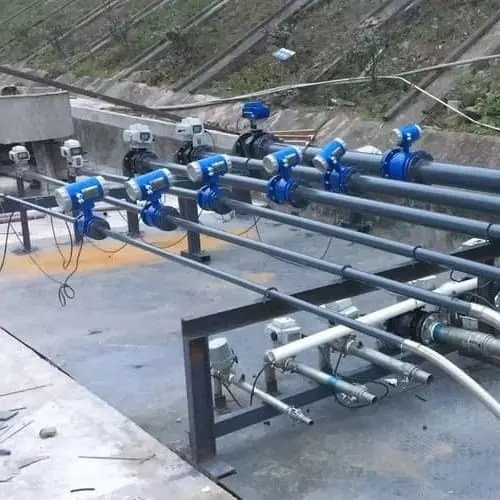

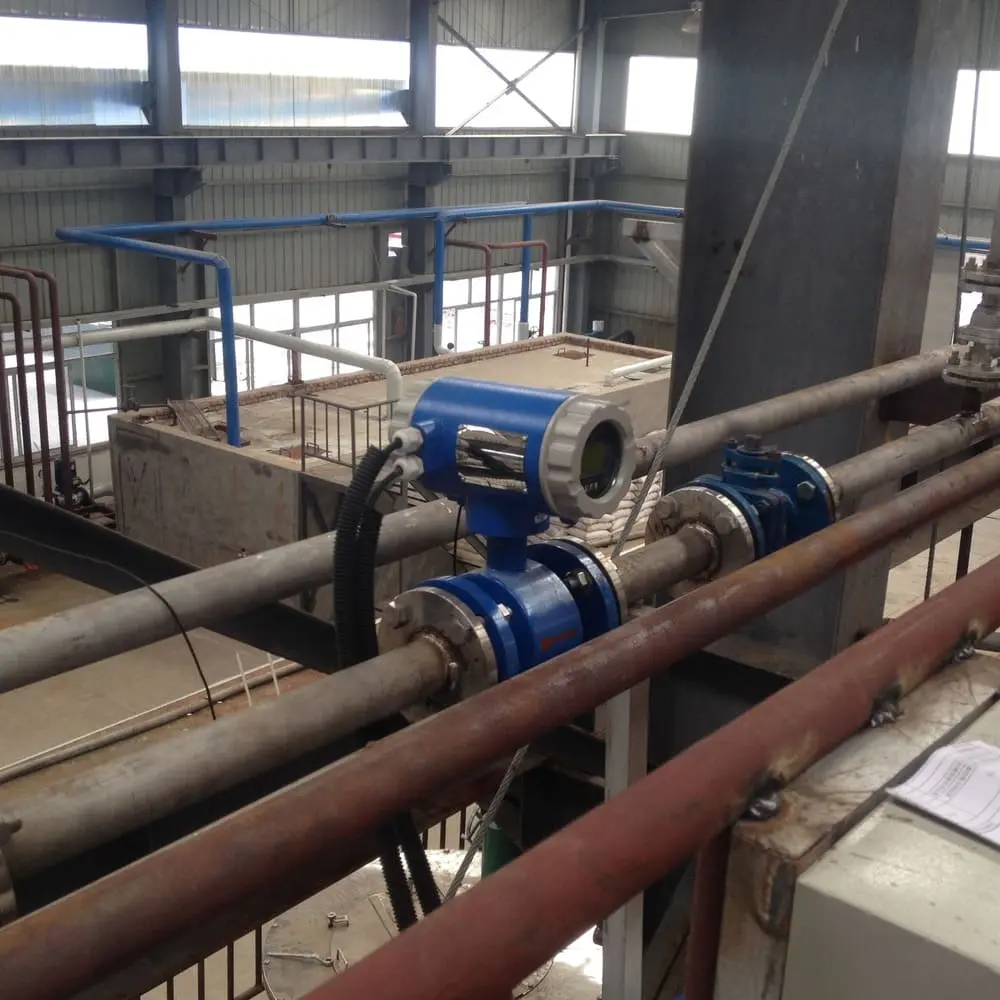

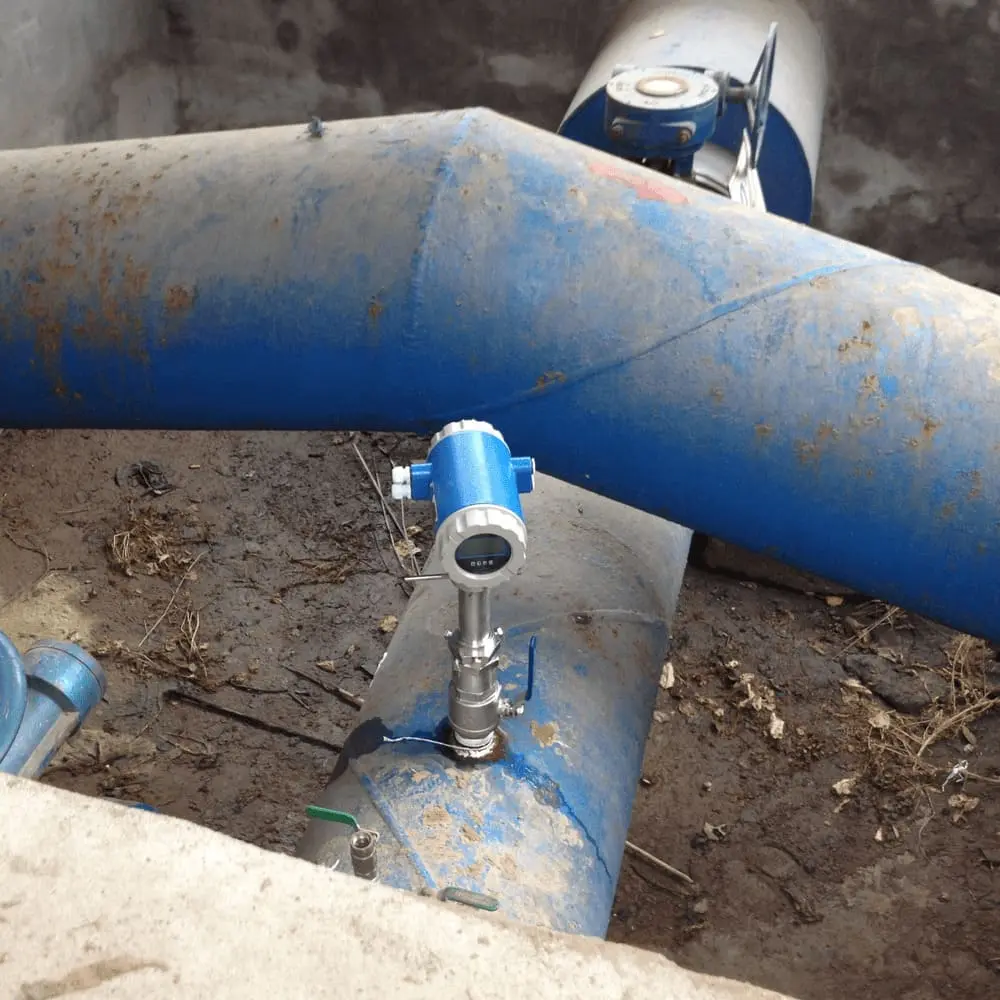

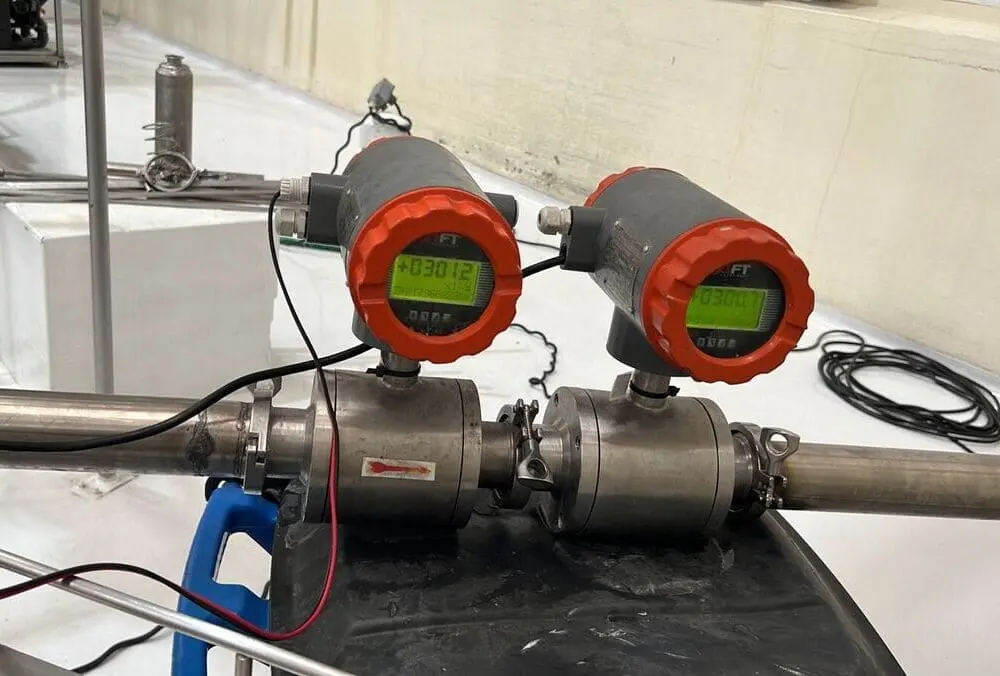

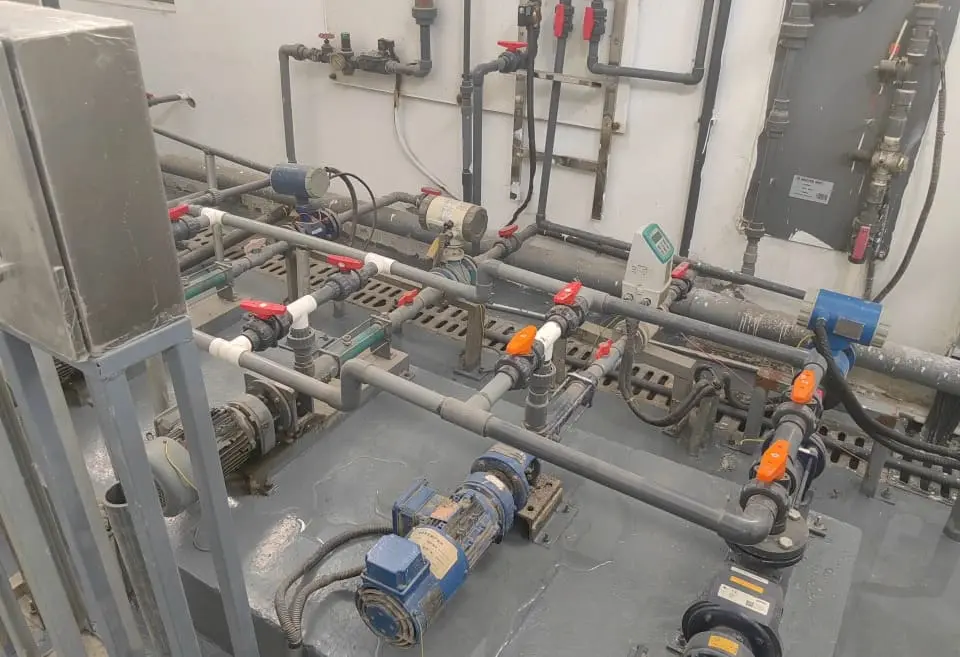

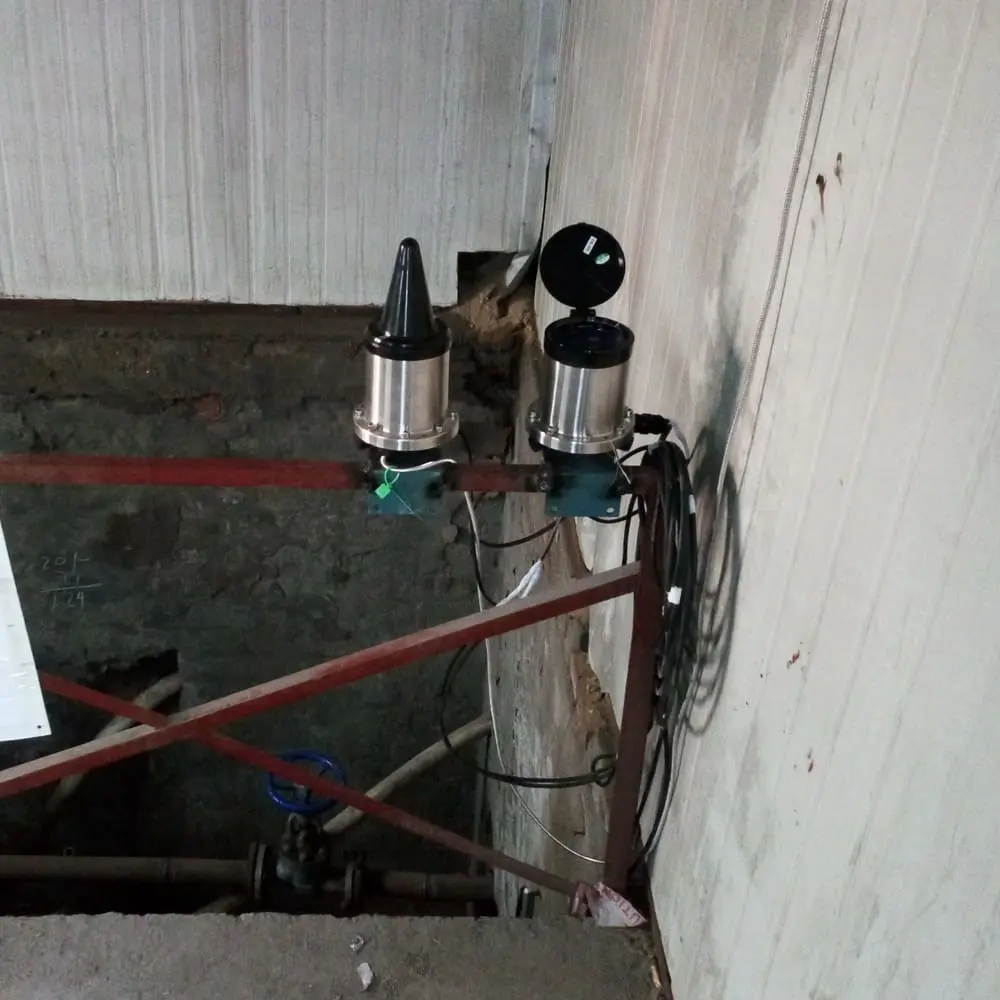

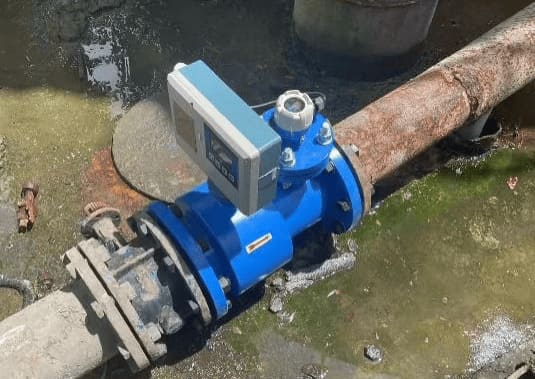

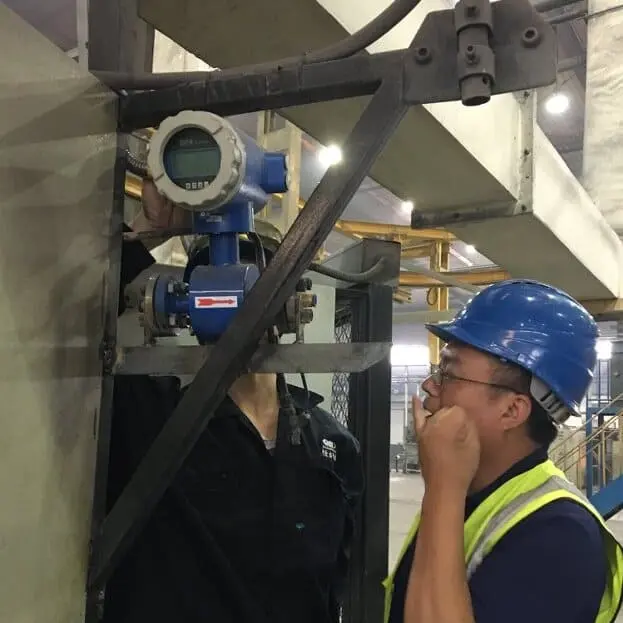

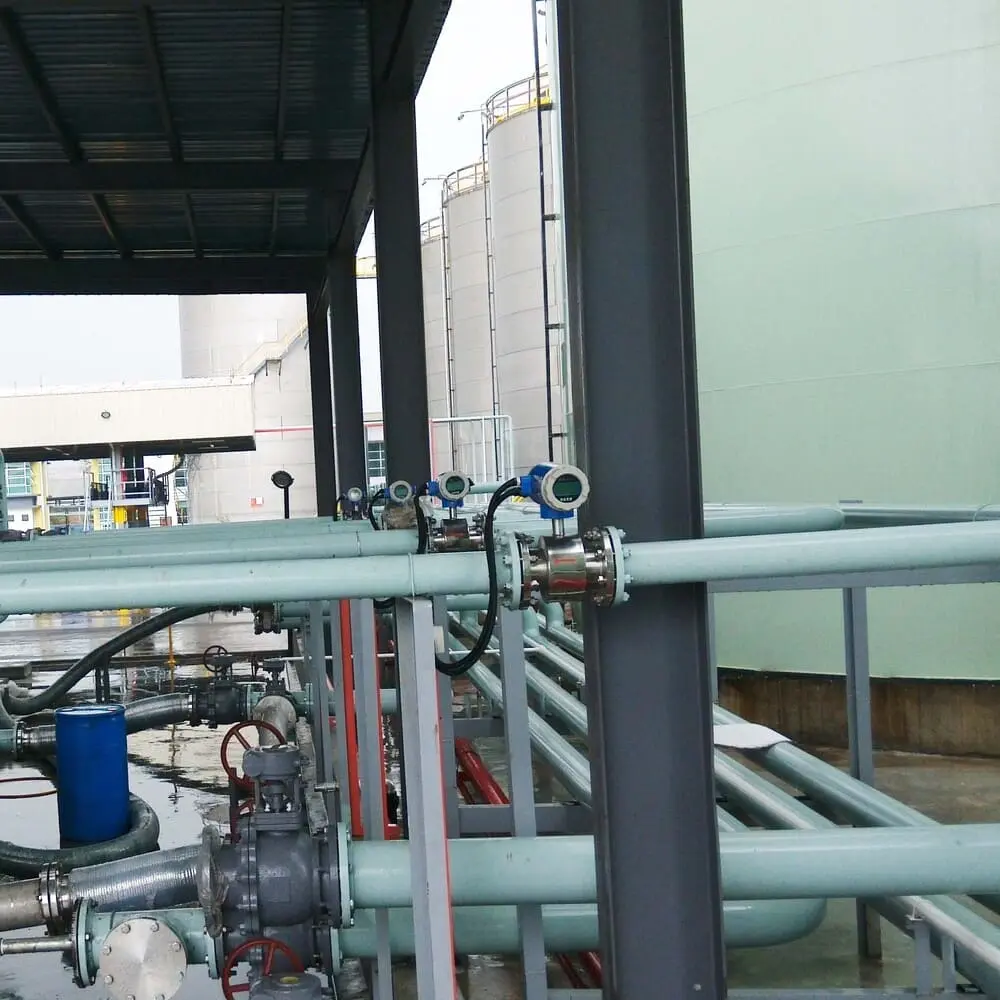

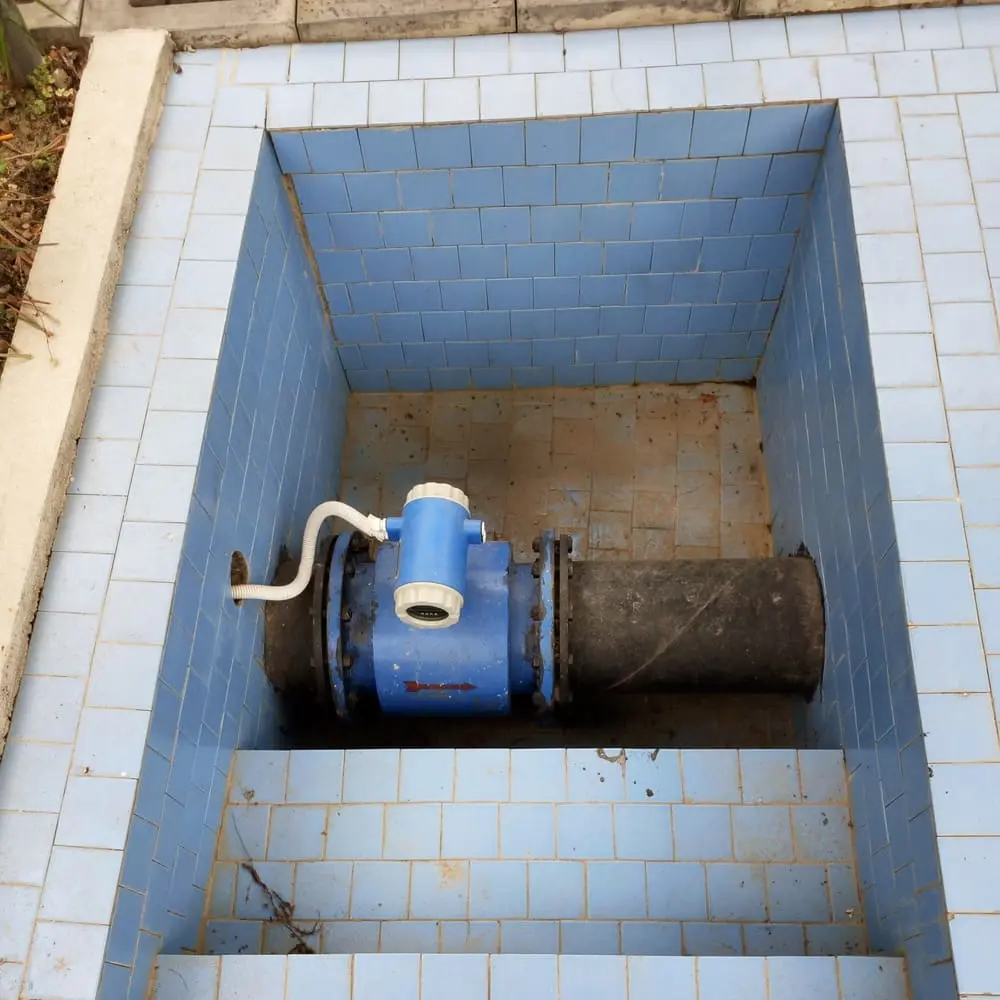

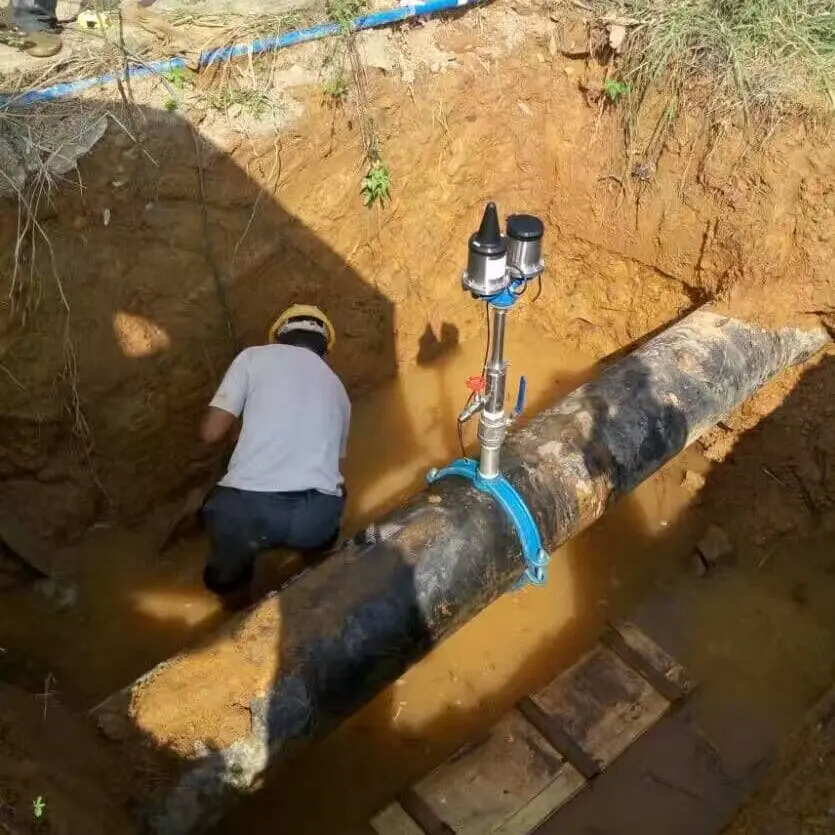

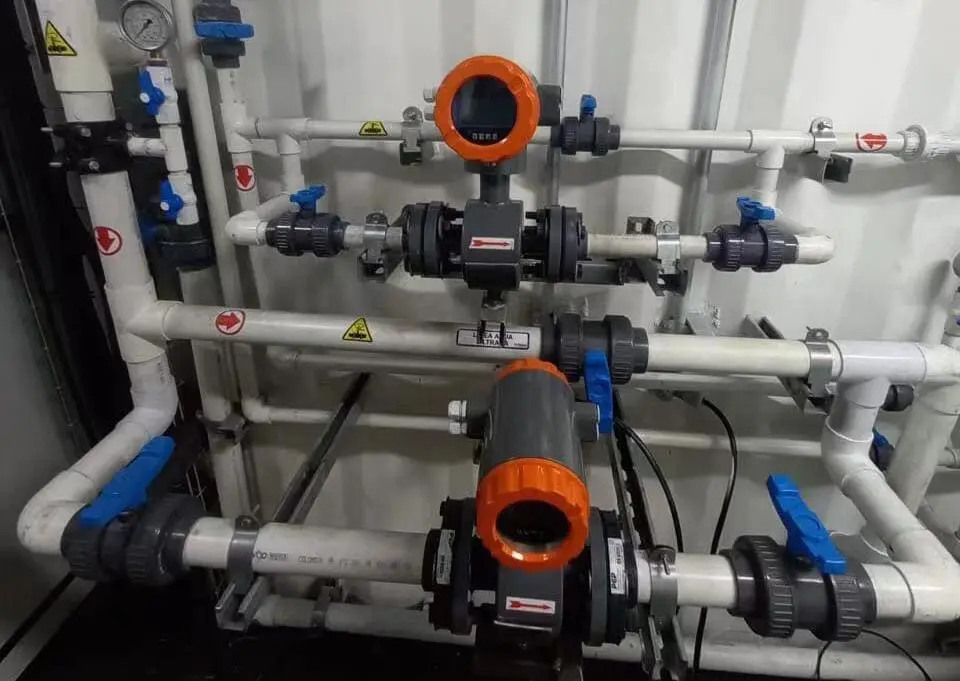

Installation and Application Cases
Field-Tested Across Global Industries
Why Industrial Buyers Choose HBYB Instrument
20+ years of advanced industrial flow measurement & monitoring
Accurate flow measurement depends on both technology and expertise. We combine practical engineering knowledge with reliable manufacturing to support demanding industrial applications.
Deep Expertise in Flow Measurement Engineering
Our engineers understand the real challenges of industrial flow measurement, and recommend solutions based on process conditions, not just specifications, helping users avoid costly mistakes.
Reliable Manufacturing and Quality Control
Every instrument is produced under a controlled manufacturing process with calibrated testing equipment to ensure measurement accuracy and product reliability.
Flexible Customization for Complex Applications
We provide custom configurations, material selections, and signal interfaces to ensure the flowmeter integrates seamlessly into each customer's system.
Global Experience Across Diverse Industries
Our instruments are used across water, chemical and energy projects worldwide, the experience empowers us to deliver reliable solutions in real-world operating conditions.
Not Ready to Order?
Start with the Right Specification, Not a Product Guess.
Industrial instrumentation decisions don't happen in a single session. These three paths move you from evaluation to confidence — without committing to a purchase.
Request Selection Help
A technical selection guide that helps users choose the right magnetic flowmeter based on process conditions, installation constraints, and media characteristics.
Request Selection Help Submit your application conditions
Share your medium, temperature, pressure, pipe diameter and flow range. Our engineer returns a optimized solutions and material configuration suggestions within 24 hours.
Get Technical ConsultationSpeak with Our Engineers
For complex applications, unusual process conditions, or urgent matters — call our engineering team directly. 24-hours response for urgent requirements.
