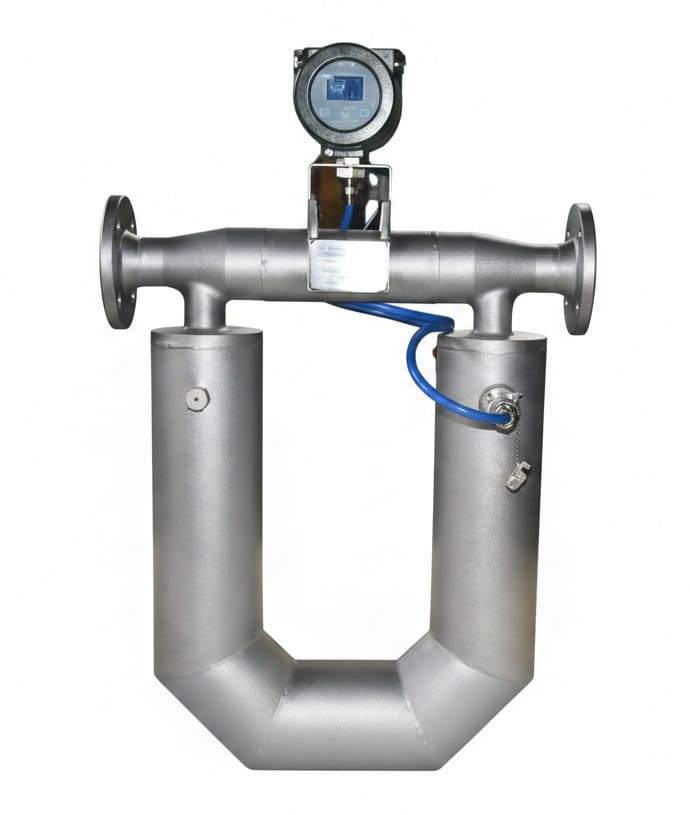

U-Shaped Coriolis Flowmeters
Custody-transfer accuracy for high-capacity liquid and slurry pipelines — no external compensation required.
When your process involves precise ingredient dosing, high-value chemical injection, or small-batch blending, indirect flow measurement introduces unacceptable uncertainty. The triangle-tube Coriolis meter eliminates that uncertainty entirely — measuring mass flow directly from the Coriolis force acting on the fluid itself, independent of fluid properties, viscosity, or temperature shifts. Simultaneous density output makes it equally capable as an inline concentration or quality monitor.
- Pipe Size: DN20 ~ DN150
- Flow Range: 600 ~ 480,000 kg/hr
- Mass Flow Accuracy: ±0.1%
- Density Accuracy: ±0.002 g/cm³
- Operating Temperature: –50°C to +300°C
- Rated Pressure: Up to 4.0 MPa
Request QuotationTechnical Consultation
For medium-to-large industrial pipelines where high flow throughput, low pressure penalty, and mass accountability must coexist — the U-tube geometry delivers what smaller Coriolis designs cannot.
Accuracy: ±0.1% | Repeatability: ±0.05%
Density accuracy: ±0.002 g/cm³ | Range: 0.3–3.0 g/cm³
DN20 – DN150 | 600 – 480,000 kg/hr
Temperature range: –200°C to +300°C (extended)
4 measured variables | 1 process connection
Zero moving parts | Maintenance-free wetted internals
SS316L wetted surfaces; rated for slurries and aggressive media
Parameter | Specification |
|---|---|
Measurement Principle | Coriolis force — direct mass flow measurement via vibrating dual-tube phase differential |
Applicable Media | Liquids, high-viscosity fluids, slurries |
Flow Range | 600 – 480,000 kg/hr (standard); up to 600,000 kg/hr (DN150 extended) |
Pipe Size Range | DN20 – DN150 |
Mass Flow Accuracy | ±0.1% / ±0.15% / ±0.2% of reading (selectable at order) |
Repeatability | 1/2 of stated accuracy |
Density Measurement Range | 0.3 – 3.0 g/cm³ |
Density Accuracy | ±0.002 g/cm³ |
Temperature Measurement Range | –200°C to +350°C |
Temperature Accuracy | ±1°C |
Process Temperature | –50°C to +200°C (standard) / –50°C to +300°C / –200°C to +200°C (extended options) |
Ambient Temperature | –20°C to +60°C (standard) / –40°C to +60°C (option) |
Rated Pressure | 1.6 / 2.0 / 4.0 MPa (standard: 4.0 MPa) |
Measuring Tube Material | SS316L |
Housing Material | SS304 |
Process Connection | Flange / Thread / Tri-clamp / Pipe fittings / Custom |
Mounting Configuration | Compact (integrated) / Remote (split) |
Output Signal | Pulse (0–10,000 Hz) + 4–20 mA |
Communication Protocol | RS485 Modbus (standard) / HART (FT-522 transmitter) |
Power Supply | 24 VDC / 220 VAC / 22–245 V (universal option) |
Ingress Protection | IP67 |
Why U-Shaped Coriolis for High-Capacity Liquid Measurement
When mass flow accuracy and fluid versatility are non-negotiable, the U-shaped Coriolis outperforms every indirect measurement technology across the same pipeline diameter range.
vs. Electromagnetic (Mag) Flowmeters:
- Measures mass flow directly — mag meters deliver volumetric flow only, requiring separate density input for mass conversion
- Works on hydrocarbons, oils, and non-conductive fluids — mag meters require a minimum fluid conductivity of ~5 µS/cm and cannot handle petroleum products
- Provides simultaneous density measurement — mag meters have no density output capability
- Unaffected by fluid conductivity variations — mag meter accuracy degrades when conductivity fluctuates or approaches the minimum threshold
- Full custody-transfer capability on non-aqueous media — mag meters are limited to conductive liquids only
vs. Turbine Flowmeters:
- No moving parts — turbine bearings wear progressively, causing measurement drift that is not self-evident without regular calibration pulls
- Handles viscous and abrasive fluids — high viscosity and entrained solids degrade turbine rotor performance and accelerate bearing wear
- Direct mass measurement — turbine meters are inherently volumetric; mass flow requires external density compensation
- Maintains accuracy at low flow — turbine meters suffer poor linearity at the low end of their range due to bearing friction effects
- No strainer required upstream — turbine meters require protection from particulates that Coriolis handles without additional filtration
vs. Differential Pressure Meters (Orifice, Venturi):
- No energy penalty — DP primary elements impose a permanent pressure loss; at high flow rates and large pipe sizes, this translates directly into pump and compressor operating cost
- Wide turndown without reconfiguration — a single orifice plate is designed for a fixed flow range; Coriolis handles the full operating envelope from startup to peak load
- Fewer installed components — eliminating DP transmitters, impulse lines, manifolds, and isolation valves reduces installed cost, leak risk, and maintenance points
- Accurate during density excursions — DP meters require re-calculation when fluid density shifts; Coriolis self-compensates continuously
- No straight-run requirements — DP elements need significant upstream and downstream straight pipe; Coriolis imposes no such constraint
Best Applications for U-Shaped Coriolis Flowmeter:
- Custody transfer and fiscal metering of liquids and hydrocarbons
- Non-conductive fluid measurement where mag meters cannot operate
- High-viscosity media: heavy oils, polymers, adhesives, food pastes
- Simultaneous density and concentration monitoring
- Slurry and produced fluid measurement in oil and gas
Oil & Gas — Upstream and Midstream
- Crude oil allocation metering at wellhead and separator outlets
- Produced water and multiphase fluid measurement
- Pipeline custody transfer (fiscal metering with ±0.1% traceable accuracy)
- High-pressure slurry flow measurement for cementing and drilling operations
- Heavy oil and bitumen transfer between storage and processing units
- Lease automatic custody transfer (LACT) unit integration
Petrochemical & Chemical Processing
- Feedstock mass flow control and material balance verification
- Reactor feed metering for highly corrosive and aggressive chemical streams
- Blend ratio control in multi-component continuous mixing processes
- Inline concentration monitoring via simultaneous density measurement
- Solvent and acid transfer metering on loading and unloading skids
- High-viscosity polymer and resin flow measurement
Food & Beverage Processing
- Edible oil and fat transfer metering (vegetable oils, animal fats, shortening)
- Sugar syrup, molasses, and high-viscosity flavoring dosing
- Alcoholic beverage production — wort, beer, and spirits mass metering
- Dairy processing — cream, condensed milk, and liquid ingredient batching
- CIP (clean-in-place) chemical dosing and return flow verification
- Truck and tanker loading with integrated batch totalizing
Energy & Utilities
- Fuel oil and heavy fuel metering for boiler and burner management systems
- Coal slurry and biomass slurry flow measurement in power generation
- Lubricant and hydraulic oil consumption tracking in industrial plant utilities
- Thermal fluid metering in heat transfer and district energy systems
- Crude oil and fuel blending for combustion efficiency optimization
- Liquid fuel custody transfer at storage depots and distribution terminals
Marine & Bulk Transfer

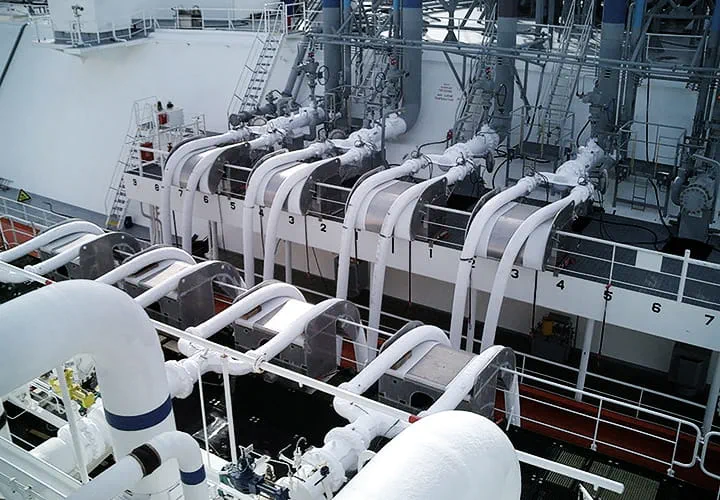

- Marine bunkering — fuel oil mass metering for ship-to-ship and shore-to-ship transfer
- Cargo loading and discharge metering on tankers and product carriers
- Bunker fuel consumption monitoring for vessel performance and emissions compliance
- Lubricating oil and hydraulic fluid transfer on offshore platforms
- Ballast water treatment flow monitoring
- Tank farm allocation and inventory reconciliation at port terminals
Pharmaceutical & Specialty Chemicals
- Active pharmaceutical ingredient (API) solvent metering in batch synthesis
- High-value chemical injection and reagent delivery at production scale
- Continuous manufacturing process mass flow verification and audit trail
- Coating solution and lacquer metering in tablet film-coating systems
- Printing ink and textile dye mass metering for recipe consistency
- Sterilization fluid and cleaning agent dosing on large-scale processing lines
