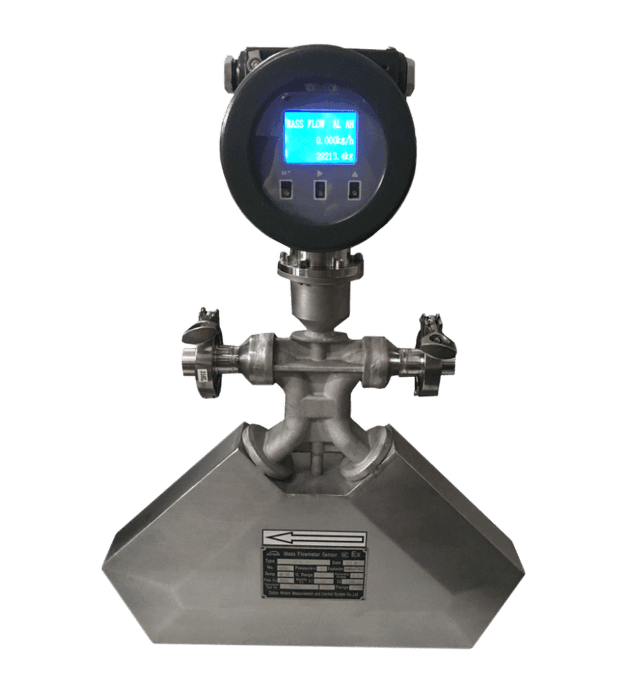

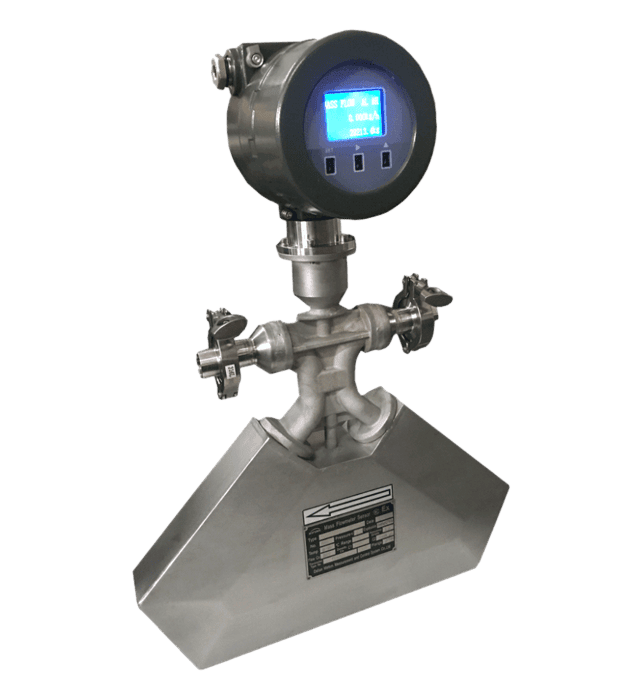

Triangle-Shaped Coriolis Flowmeter
Built for low-flow and small-diameter processes where measurement precision cannot be compromised
When your process involves precise ingredient dosing, high-value chemical injection, or small-batch blending, indirect flow measurement introduces unacceptable uncertainty. The triangle-tube Coriolis meter eliminates that uncertainty entirely — measuring mass flow directly from the Coriolis force acting on the fluid itself, independent of fluid properties, viscosity, or temperature shifts. Simultaneous density output makes it equally capable as an inline concentration or quality monitor.
- Pipe Size: DN3 ~ DN15
- Flow Range: 9.6 ~ 4,200 kg/hr
- Mass Flow Accuracy: ±0.1%
- Density Accuracy: 0.3 – 3.0 g/cm³ (±0.002 g/cm³)
- Operating Temperature: –200°C to +300°C
- Rated Pressure: Up to 4.0 MPa (standard); higher on request
Request QuotationTechnical Consultation
Whether you're dosing high-value chemical reagents, filling pharmaceutical vials, or metering specialty fluids in confined pipework, the Triangle-Shaped Coriolis Flowmeter delivers direct, compensation-free measurement with full Coriolis accuracy — down to DN3.
± 0.1% mass flow accuracy, independent of fluid properties
Single sensor; four simultaneous outputs via 4–20 mA / pulse / RS485 / HART
DN3 minimum pipe size; zero stability from 0.012 kg/hr
Standard configuration: –50°C to +200°C; extended: –200°C to +300°C
Density range: 0.3–3.0 g/cm³; accuracy: ±0.002 g/cm³
Ex d (ia) IIC T6Gb certified; IP67; rated pressure up to 4.0 MPa
Parameter | Specification |
|---|---|
Measurement Principle | Coriolis force — direct mass flow measurement via vibrating dual-tube phase differential |
Applicable Media | Liquids, high-viscosity fluids, slurries |
Flow Range | 9.6 – 3,000 kg/hr (standard); up to 4,200 kg/hr (DN15 extended) |
Pipe Size Range | DN3 – DN15 |
Mass Flow Accuracy | ±0.1% / ±0.15% / ±0.2% of reading (selectable at order) |
Repeatability | 1/2 of stated accuracy |
Density Measurement Range | 0.3 – 3.0 g/cm³ |
Density Accuracy | ±0.002 g/cm³ |
Temperature Measurement Range | –200°C to +350°C |
Temperature Accuracy | ±1°C |
Process Temperature | –50°C to +200°C (standard) / –50°C to +300°C / –200°C to +200°C (extended options) |
Ambient Temperature | –20°C to +60°C (standard) / –40°C to +60°C (option) |
Rated Pressure | 4.0 MPa (DN3) / 2.0 MPa (DN6 – DN15) |
Measuring Tube Material | SS316L |
Housing Material | SS304 |
Process Connection | Flange / Thread / Tri-clamp / Pipe fittings / Custom |

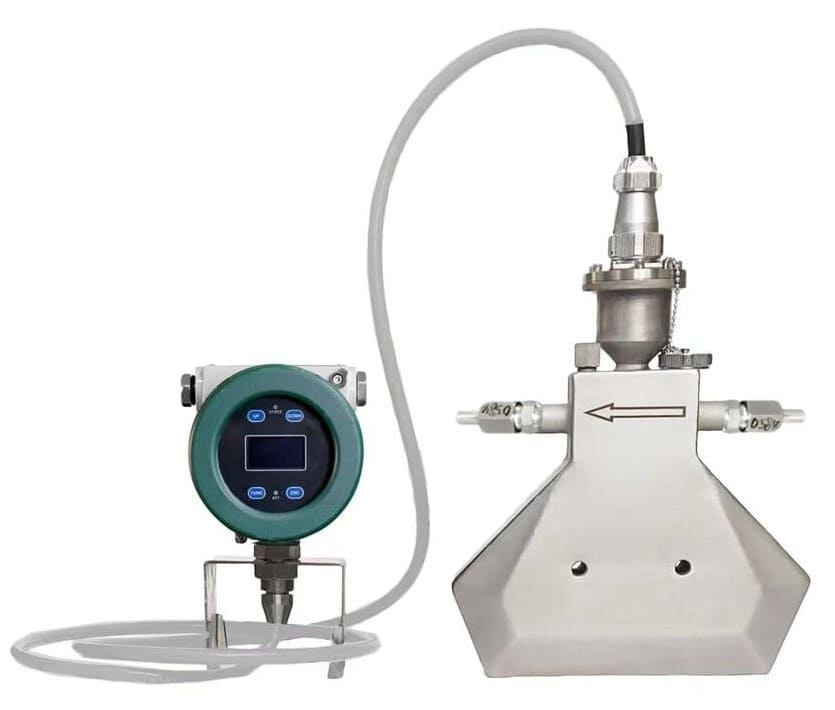

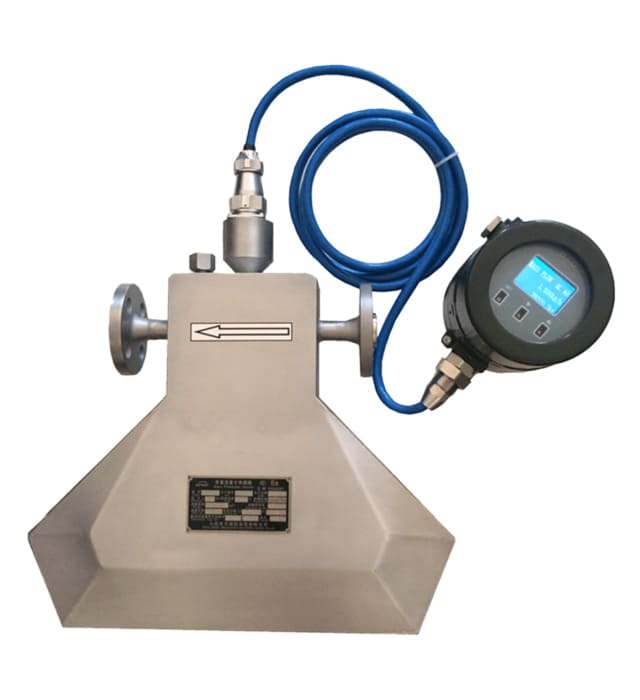

Mounting Configuration | Compact (integrated) / Remote (split) |
Output Signal | Pulse (0–10,000 Hz) + 4–20 mA |
Communication Protocol | RS485 Modbus (standard) / HART (FT-522 transmitter) |
Power Supply | 24 VDC / 220 VAC / 22–245 V (universal option) |
Ingress Protection | IP67 |
Why Triangle-Tube Coriolis for Low-Flow Precision Measurement
vs. Positive Displacement Meters (Oval Gear, Rotary)
- Direct mass measurement — no density correction needed for custody accuracy
- No rotating elements — zero wear on precision-matched gear surfaces over time
- Handles aggressive, high-purity, and abrasive media without wetted mechanical parts
- Simultaneous density output — PD meters measure volume only
- No viscosity-dependent calibration shift across operating temperature changes
- Higher initial unit cost (offset by elimination of maintenance and recalibration intervals)
vs. Turbine / Micro-Turbine Flowmeters
- Immune to viscosity variation — turbine K-factor drifts with fluid viscosity changes
- No minimum Reynolds number requirement — accurate at any flow velocity
- No bearing wear or blade damage in abrasive or particle-laden service
- Direct mass output — turbine measures velocity and requires fluid density assumption
- Accurate from the very first pulse — no spin-up lag at low flow onset
vs. Magnetic Flowmeters (Small-Bore)
- Measures non-conductive fluids — Coriolis imposes no minimum conductivity requirement
- Valid for oils, hydrocarbons, solvents, and pure water where mag meters cannot operate
- Simultaneous mass, density, and temperature — mag meters output volumetric flow only
- Unaffected by empty-pipe conditions — no false readings on startup or drain-down
- No external grounding rings or cathodic protection required
Best Applications for Triangle-Tube Coriolis Flowmeter
- Pharmaceutical ingredient dosing and batch dispensing
- Chemical injection skids with high-value reagents
- Small-line custody transfer and internal allocation
- Viscous fluid blending and concentration monitoring
- Processes requiring simultaneous mass flow + inline density
Chemical & Petrochemical Processing
- Catalyst injection and reagent dosing to reactors
- Inhibitor and additive injection on production lines
- Solvent and specialty chemical batching
- Concentration monitoring via inline density output
- Corrosive fluid measurement in SS316L wetted service
- Small-bore pipeline allocation metering
Pharmaceutical Manufacturing
- Active ingredient dosing in formulation processes
- Excipient and solvent blending by mass
- Vial and ampoule filling line measurement
- CIP/SIP fluid flow verification
- High-purity liquid transfer in contained systems
- Batch yield tracking and material reconciliation
Food & Beverage Processing
- Flavoring, seasoning, and additive dosing
- Sweetener and syrup proportioning
- Edible oil and fat flow measurement
- Carbonation additive control
- Small-batch recipe ingredient metering
- Density-based concentration monitoring for sauces and emulsions
Oil & Gas — Upstream & Midstream
- Chemical injection skids (scale inhibitor, corrosion inhibitor, biocide)
- Methanol and hydrate inhibitor dosing on wellheads
- Produced water additive measurement
- Small-line crude and condensate sampling systems
- Demulsifier injection on separation trains
- High-pressure slurry metering for cementing operations

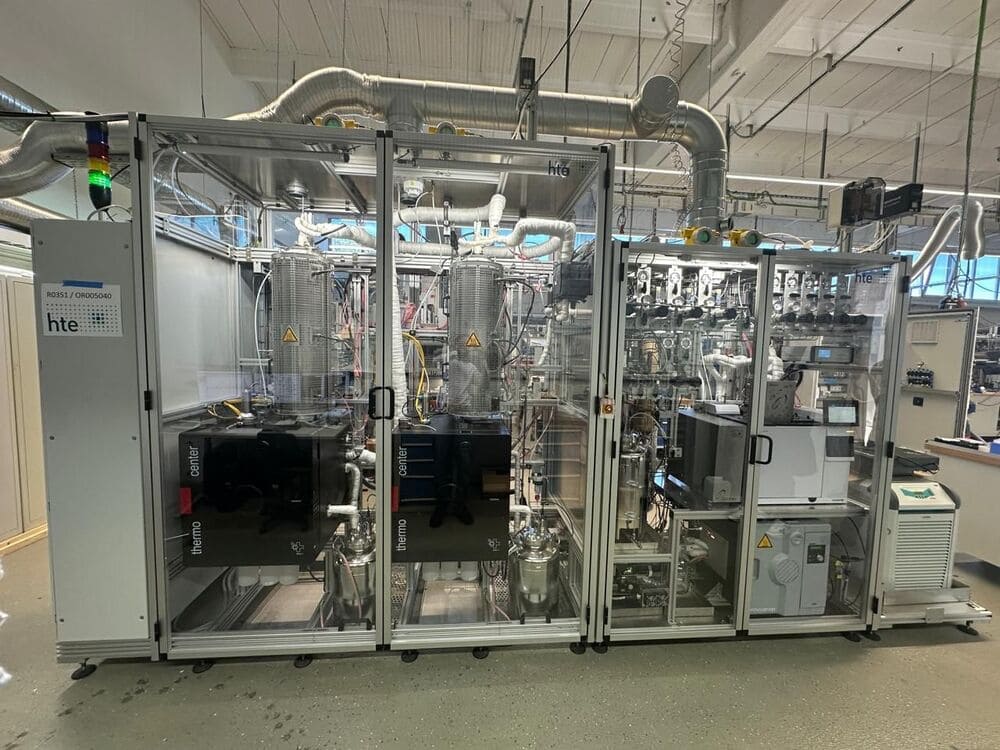

Laboratory & Pilot Plant
- Precision fluid delivery for bench-scale reaction systems
- Mass flow verification in calibration and test rigs
- Pilot-scale fermentation feed measurement
- R&D process development requiring traceable mass data
- Low-flow reference metering for instrument comparison
- Cryogenic fluid measurement down to –200°C
Paints, Coatings & Adhesives
- Two-component adhesive ratio metering
- Resin and hardener dosing in mixing systems
- Pigment and colorant injection in batch production
- High-viscosity coating flow measurement
- Solvent addition control in formulation lines
- Density-based quality verification of finished coatings
