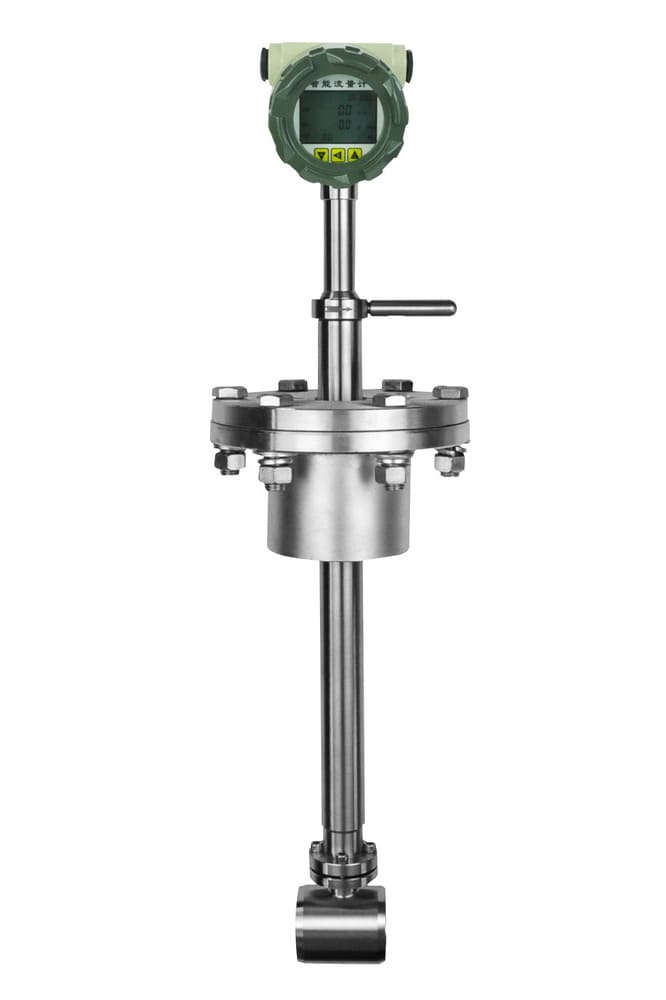

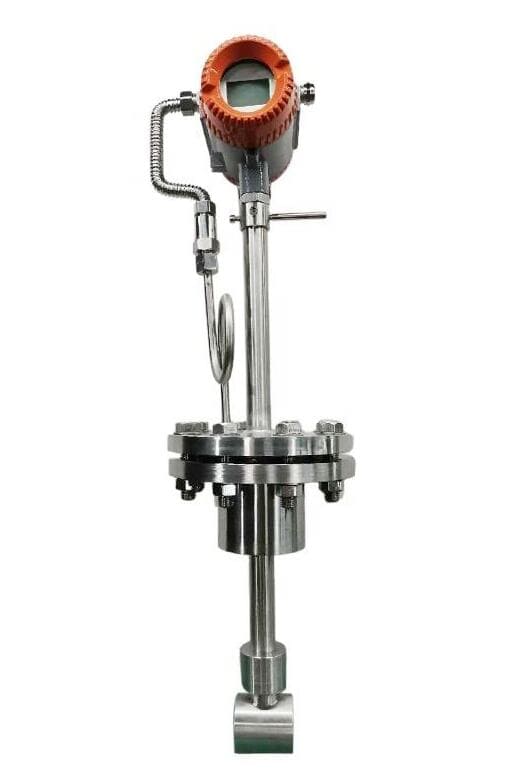

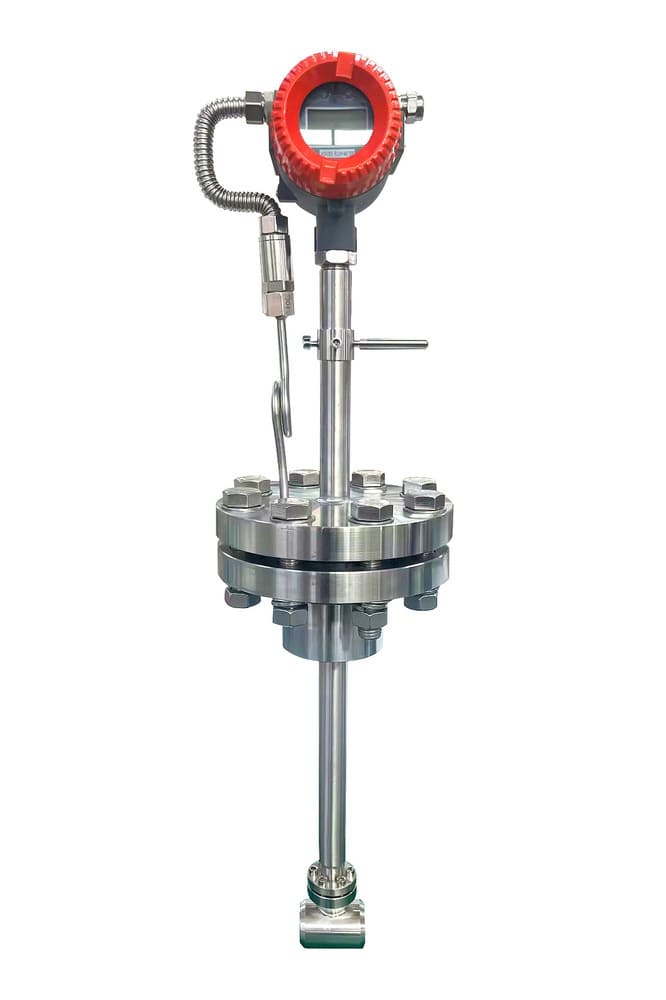

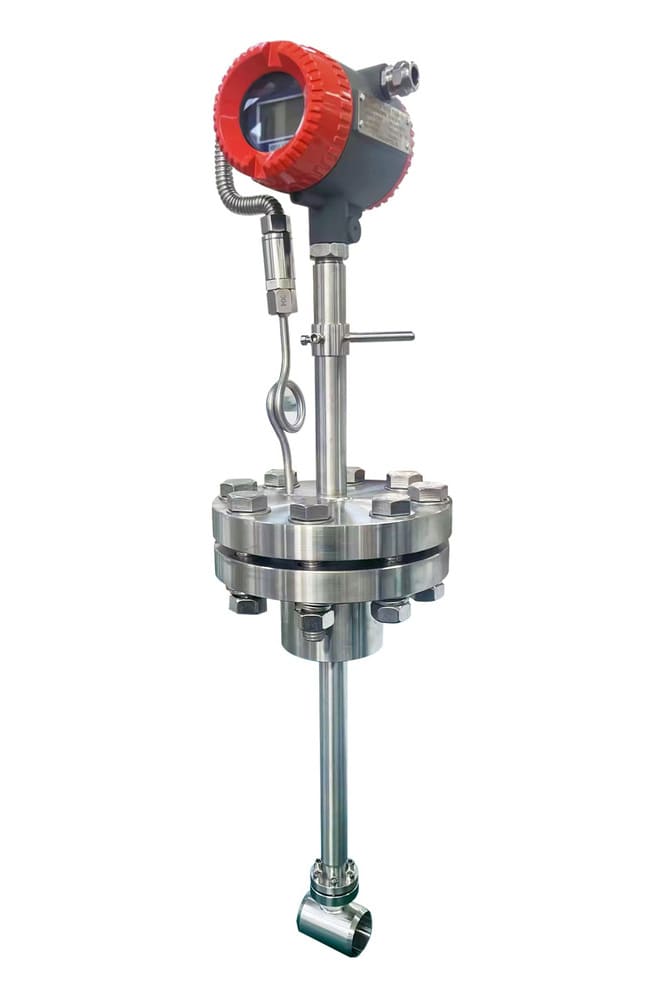

Insertion Vortex Flowmeter

Cost-effective flow measurement for large pipes—delivering accurate volumetric data without the expense of full-bore meters.
Designed for large-scale infrastructure, our insertion vortex series features a 1:30 range ratio and high detection sensitivity. By utilizing advanced anti-vibration technology and a built-in sensor structure, it maintains signal integrity even in high-velocity gas and steam applications. It is the high-performance choice for metallurgical and chemical plants seeking to optimize large-pipe flow monitoring.
  • Cost-effective measurement for large pipes (DN300-DN1200)
  • ±2-2.5% acceptable for most industrial applications
  • Ball valve option enables installation without shutdown
  • Retractable design allows maintenance under pressure
  • 60-75% lower than full-bore vortex flowmeters
Request QuotationTechnical Consultation

Large Pipe Measurement at Fraction of Full-Bore Cost

High-performance large-caliber flow solutions designed for minimal energy loss, maximum durability, and simplified maintenance.

Cost-Effective Large Pipe Solution

Specifically designed for calibers ranging from DN300 to DN1200. Unlike expensive full-bore meters, the insertion design offers a high-precision alternative at a fraction of the cost for large-diameter industrial pipelines.

Easy to install and maintain

Equipped with an optional ball valve insertion structure, the sensor can be installed or removed for maintenance without stopping the flow. This eliminates expensive system downtime and ensures uninterrupted process operations.

Advanced Digital Signal Processing (DSP)

Equipped with proprietary Digital Signal Processing (DSP), this meter intelligently distinguishes between true flow signals and mechanical interference. You get stable, reliable readings even in high-velocity steam or high-vibration metallurgical environments.

Energy Efficiency by Design

Our insertion probe is nearly invisible to the flow. By minimizing pressure loss, we help you reduce the workload on your pumps and compressors. It’s a measurement solution that actually pays for itself through lower energy bills.

Durability for Harsh Media

Constructed from premium 1Cr18Ni9Ti stainless steel with no moving parts to wear out, our meters are built to survive. From corrosive chemicals to 350°C superheated steam, this is hardware designed for a 10+ year service life.

Unmatched Integration Flexibility

Whether you are running a standalone site or a fully automated smart factory, we have you covered. With support for 4-20mA, Pulse, RS485 (Modbus), and HART, our meters plug directly into your existing SCADA system for seamless data centralisation.

Parameter
Specification
Measurement Principle
Vortex shedding (insertion probe at centerline)
Application
Large pipes: steam, compressed gas, industrial liquids
Pipe Size Range
DN300 – DN1200 (12" – 48")
Accuracy
±2.0% of reading (liquid) | ±2.5% of reading (gas and steam)
Repeatability
±0.5% of reading
Rangeability
1:10 (standard) | 1:20 (with signal processing)
Velocity Range
3 – 70 m/s (optimal 5-50 m/s)
Operating Pressure
1.6 MPa (standard) | 2.5 MPa, 4.0 MPa (optional)
Fluid Temperature
Piezoelectric: -40°C to +260°C, -40°C to +320°C | Capacitive: -40°C to +400°C, -40°C to +450°
Sensor Types
Piezoelectric (standard temp) | Capacitive (high temp, corrosive fluids
Mounting Types

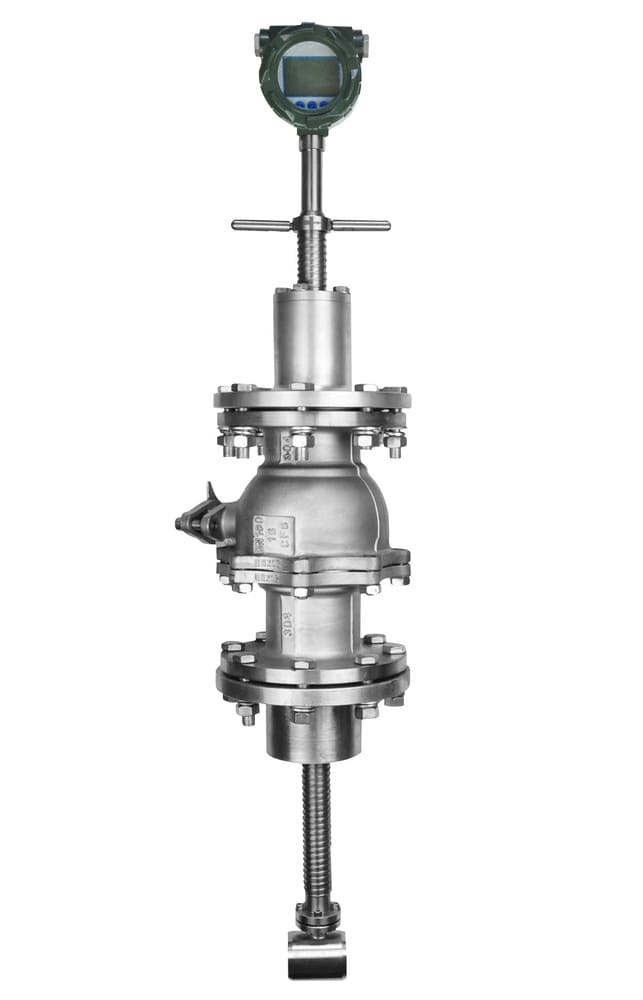

Simple type (threaded/welded flange) | Ball valve type (hot-tap, retractable)
Ball Valve Size
DN80 (standard for hot-tap installation)
Output Signal
Pulse (frequency), 4-20mA (isolated), HART digital
Power Supply
24V DC (standard) | 12V DC, 85-265V AC (optional)
Data Logging
Internal memory: 5,000+ records with timestamps
Protection Rating
Electronics: IP65 (wall-mount) | Sensor: IP67
Display
LCD: volumetric flow, velocity, totals, frequency, diagnostics
Explosion-Proof
Ex d IIB+H2 T2-T5 (optional for hazardous areas)
Quality Certifications
CE

Understanding Insertion Meter Benefits and Constraints

  • When Insertion is Best Choice:

    • Pipe size DN400-DN1200 where full-bore prohibitively expensive
    • Budget limited—need 60-75% cost reduction
    • ±2-2.5% accuracy acceptable for application
    • Hot-tap installation required (operating systems)
    • Multiple measurement points—cost savings multiply
    • Straight pipe requirements can be met

  • When Full-Bore is Better:

    • Pipe size < DN300 (insertion advantages minimal)
    • Custody transfer requiring ±1% or better
    • Severe flow disturbances (insufficient straight pipe)
    • Bi-directional flow (insertion measures one direction only)
    • Extremely dirty fluids (sensor fouling)
    • High vibration environment

    • Cost-Effective Metering for Large-Diameter Systems

    nsertion vortex flowmeters deliver accuracy where full-bore meters are cost-prohibitive

    • Industrial Steam Distribution

      • High-pressure steam mains (DN400-DN1200)
      • Low-pressure steam headers
      • Steam turbine inlet/exhaust measurement
      • Boiler steam production monitoring
      • Energy allocation and billing
      • Steam trap bypass flow detection

    • District Heating & Cooling

      • District heating transmission mains
      • Distribution network branch metering
      • Return condensate measurement
      • Energy balance calculation
      • Heat loss detection

    • Power Plant Applications

      • Boiler feedwater flow
      • Condensate return measurement
      • Auxiliary steam systems
      • Turbine extraction steam
      • Cooling tower makeup water
      • Plant efficiency monitoring

    • Chemical & Process Industries

      • Process gas main headers
      • Nitrogen distribution systems
      • Combustion air to furnaces
      • Vent gas measurement
      • Utility gas distribution
      • Flare gas monitoring

    Large Pipe Flow Measurement Without the Large Price Tag

    Get accurate steam and gas measurement for 60-75% less than full-bore meters. Specify your pipe size and application—receive sizing recommendations within 24 hours.
