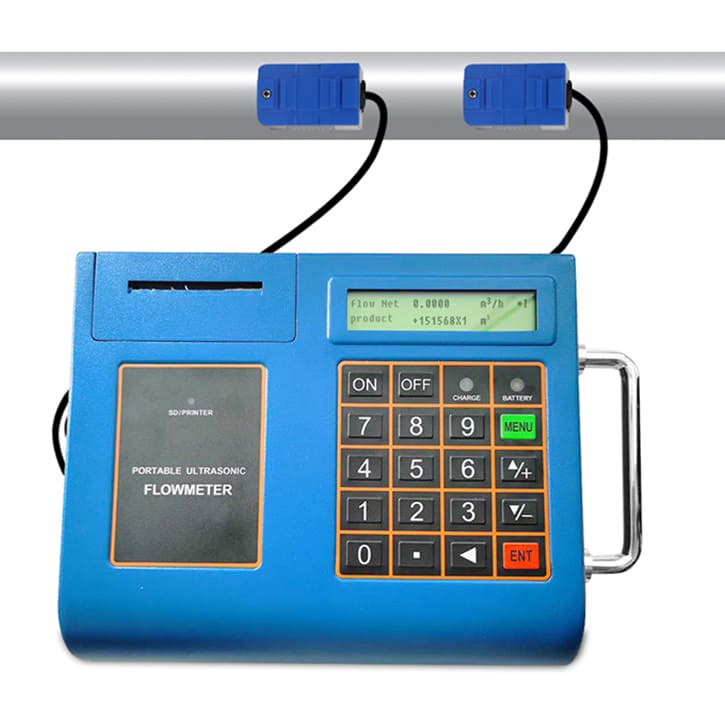

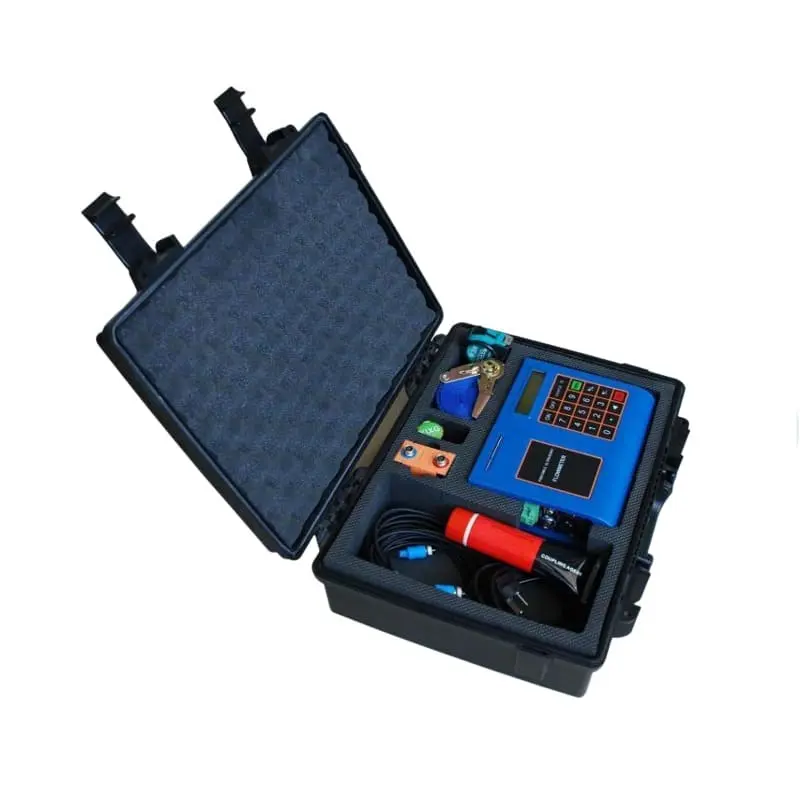

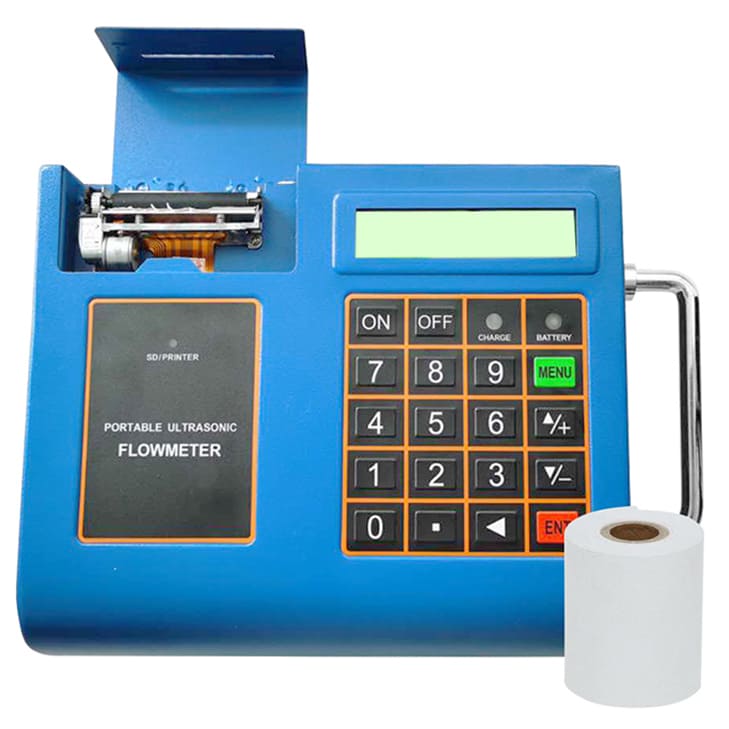

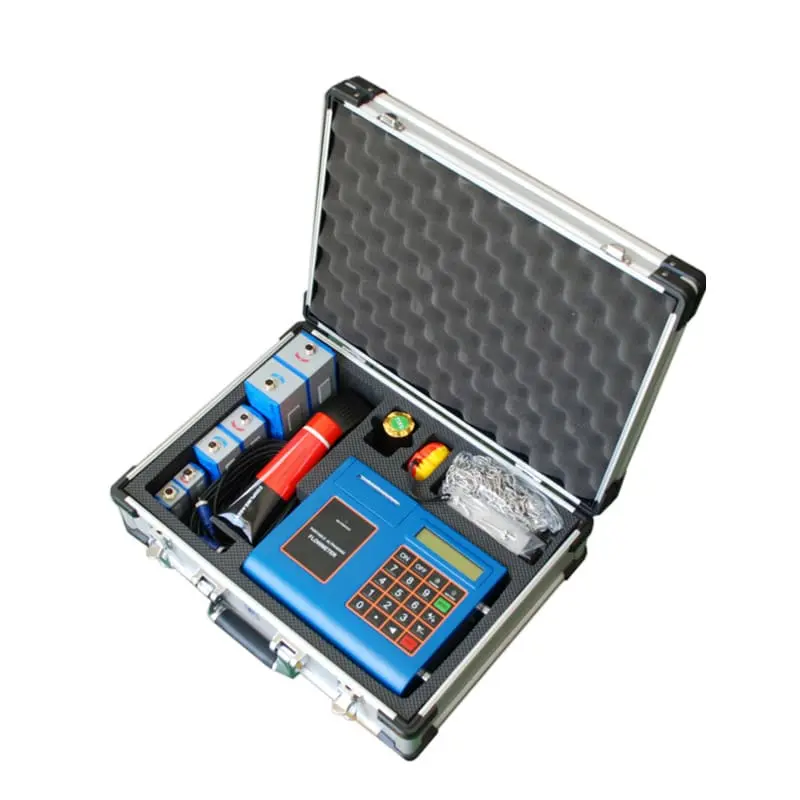

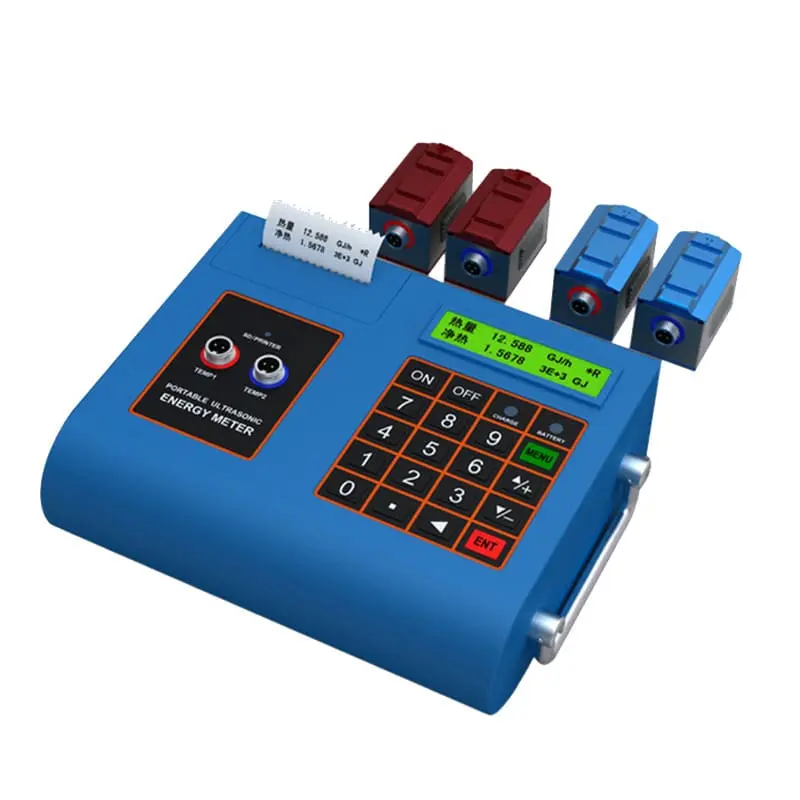

Portable Ultrasonic Flowmeter
Instant Flow Measurement Without Pipe Modification
Non-invasive clamp-on flow measurement for field testing, commissioning verification, and temporary monitoring—battery-powered handheld unit installs in minutes without pipe cutting, welding, or process shutdown. Measures flow in metal, plastic, and concrete pipes from DN15 to DN6000 with ±1% accuracy for water system audits, HVAC balancing, and industrial process verification.
- Pipe Size: DN15 – DN6000 (½" – 240")
- Flow Accuracy: ±1% of reading (±0.5% optional)
- Velocity Range: 0.01 – 25 m/s
- Transducers: 5 sizes for complete pipe range
- Data Logging: 10,000+ records with timestamps
Request QuotationTechnical Consultation
Four reasons portable ultrasonic meters outperform permanent installations for temporary and audit applications
- 10-15 minute installation—no shutdown, welding, or permits required
- DN15-DN6000 range—one instrument handles all pipe sizes
- 8-12 hours battery life—full day of field measurements
- 10,000+ record capacity—complete audit documentation built-in
Advantages vs. Fixed Installation
Choose Portable Ultrasonic When:
✓ Temporary measurement required (hours, days, weeks)
✓ Multiple measurement points across facility or sites
✓ Commissioning verification before permanent meter installation
✓ Backup verification for existing meters
✓ Rental/loaner meter more economical than purchase
✓ Process shutdown not possible for inline installation
✓ Quick troubleshooting or diagnostic measurement
✓ Mobile service van equipment
Choose Permanent Installation When:
✓ Continuous long-term monitoring required
✓ Remote data transmission to SCADA/BMS
✓ Custody transfer or billing accuracy critical
✓ Process control or automatic valve operation
✓ Single fixed measurement point
✓ Higher accuracy than ±1% required
✓ Harsh environment requiring rugged industrial enclosure
Parameter | Specification |
|---|---|
Measurement Principle | Ultrasonic transit-time (clamp-on transducers) |
Application | Portable/temporary flow measurement, field testing, audits, commissioning |
Pipe Size Range | DN15 – DN6000 (½" – 240") with appropriate transducers |
Flow Accuracy | ±1% of reading (±0.5% optional with calibration) |
Repeatability | ±0.2% of reading |
Velocity Range | 0.01 – 25 m/s (bidirectional) |
Measured Fluids | Water, seawater, industrial water, oils, chemicals |
Fluid Temperature | |
Ambient Temperature | -20°C to +60°C (main unit) |
Pipe Materials | Carbon steel, stainless steel, copper, PVC, HDPE, CPVC, FRP, concrete-lined |
Pipe Wall Thickness | 1mm – 60mm (material dependent) |
Transducer Types | 5 sizes: Small (DN15-100), Standard (DN50-700), Medium (DN300-3000), Large (DN1000-6000), High-temp |
Transducer Mounting | V-method (reflect mode), Z-method (direct mode), W-method (long path) |
Power Supply | Built-in rechargeable Li-ion battery, 7.4V 6000mAh |
Battery Life | 8-12 hours continuous operation, 100+ charge cycles |
Display | 128×64 dot matrix LCD with backlight |
Displayed Parameters | Flow rate, velocity, accumulated volume +/-, signal strength, transit time, transducer spacing |
Data Logging | 10,000+ records with date/time stamps |
Data Transfer | USB, Bluetooth, RS232 (model dependent) |
Outputs | Pulse, 4-20mA (optional via expansion module) |
Protection Rating | IP65 (main unit), IP67 (transducers) |
Language Support | English, Spanish, Chinese, German, French (selectable) |
Quality Certifications | CE |
Non-invasive measurement for audits, commissioning, troubleshooting, and temporary monitoring
HVAC System Balancing & Commissioning
- Chilled water flow verification
- Hot water system balancing
- Cooling tower flow measurement
- Heat exchanger performance testing
- Energy audit documentation
- TAB (Testing, Adjusting, Balancing) reports
Water Distribution System Audits
- Water loss detection programs
- District metered area (DMA) verification
- Tank fill/drain rate measurement
- System hydraulic balancing
- Production well flow testing
- Emergency temporary metering
Process System Verification & Troubleshooting
- Cooling water flow verification
- Process line flow measurement
- Heat exchanger duty calculation
- Pump performance curve testing
- Plant expansion baseline data
- Process optimization studies
Power Plant & Energy Systems
- Condenser cooling water flow
- Boiler feed water measurement
- Steam condensate return
- Circulating water pumps
- District heating/cooling verification
- CHP system monitoring
Follow these steps for accurate portable measurements
Pipe Location Selection
- Ideal Location: Straight pipe section: 10D upstream, 5D downstream from bends, valves, or fittings.
- Full Pipe: Ensure pipe completely full—avoid high points where air can accumulate.
- Accessibility: Choose location where transducers can be installed and remain undisturbed during measurement period.
Surface Preparation
- Metal Pipes: Remove paint, rust, mill scale with wire brush or sandpaper. Bare metal surface required.
- Plastic Pipes: Clean with solvent to remove dirt and oils. Light sanding improves couplant adhesion.
- Couplant Application: Apply generous amount of ultrasonic couplant gel to transducer face and pipe surface.
Transducer Mounting
- Alignment: Use alignment fixtures or markings to ensure parallel transducer orientation. Misalignment causes weak signal.
- Mounting Straps: Tighten mounting chain or straps firmly. Transducers must not move during measurement.
- Signal Verification: Check signal quality percentage (>60% good, >75% excellent). Adjust transducer position if weak.
Measurement Tips
- Stable Conditions: Allow system to stabilize before recording data. Avoid measurements during startup, shutdown, or transients.
- Multiple Points: For critical measurements, take readings at multiple pipe locations and average results.
- Temperature: Allow transducers to temperature-stabilize (5-10 minutes) for hot or cold pipe measurements.
