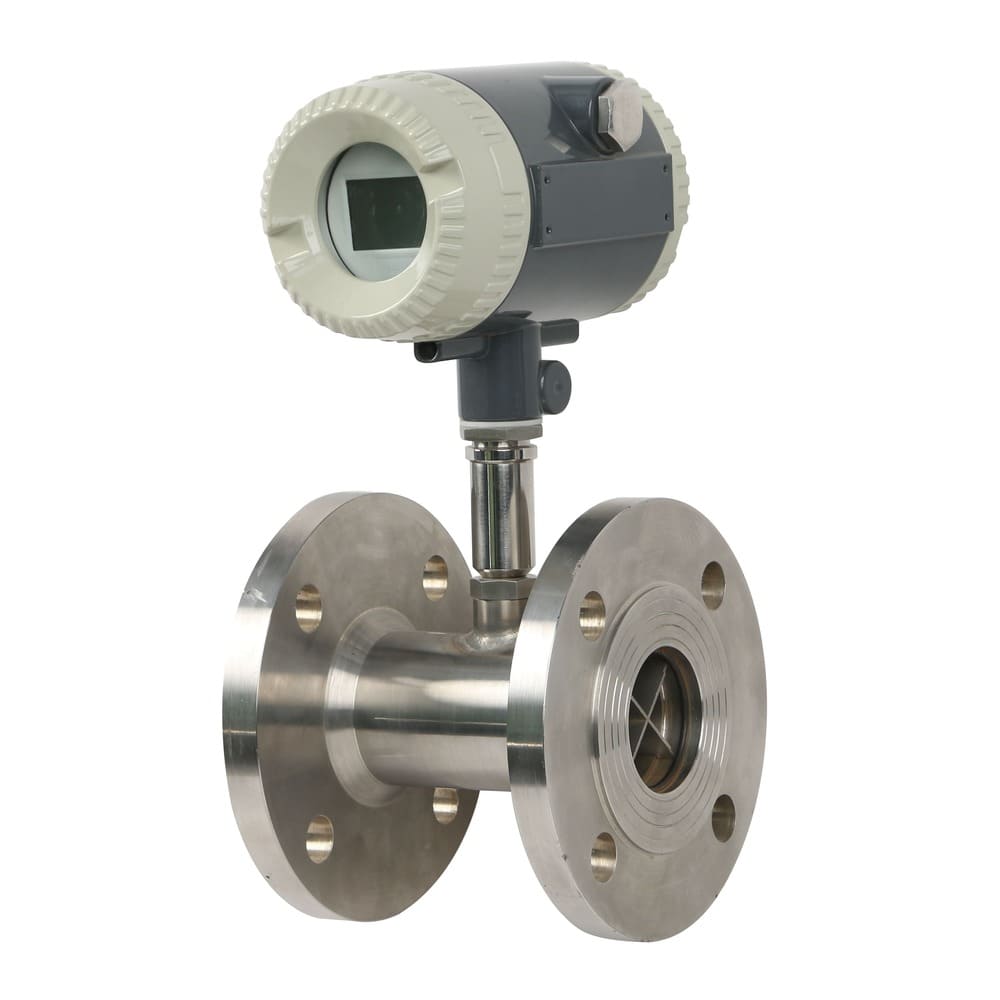

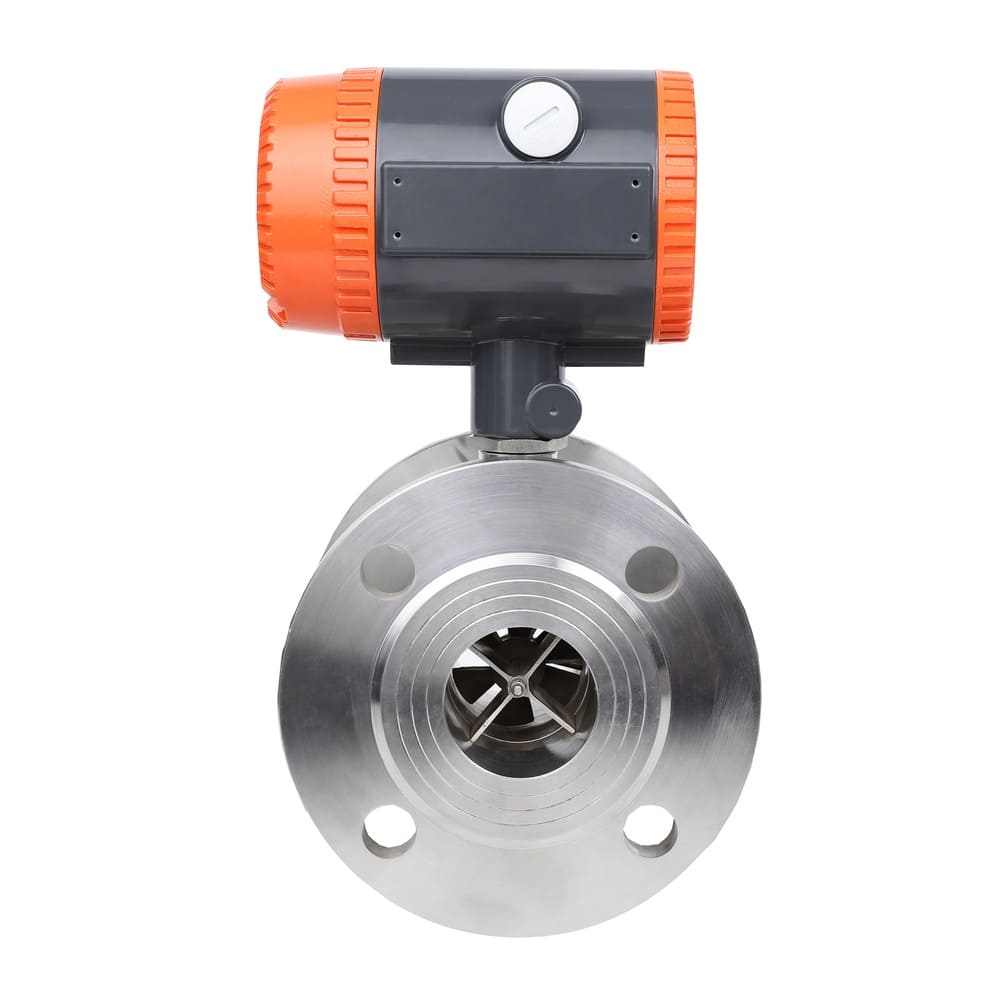

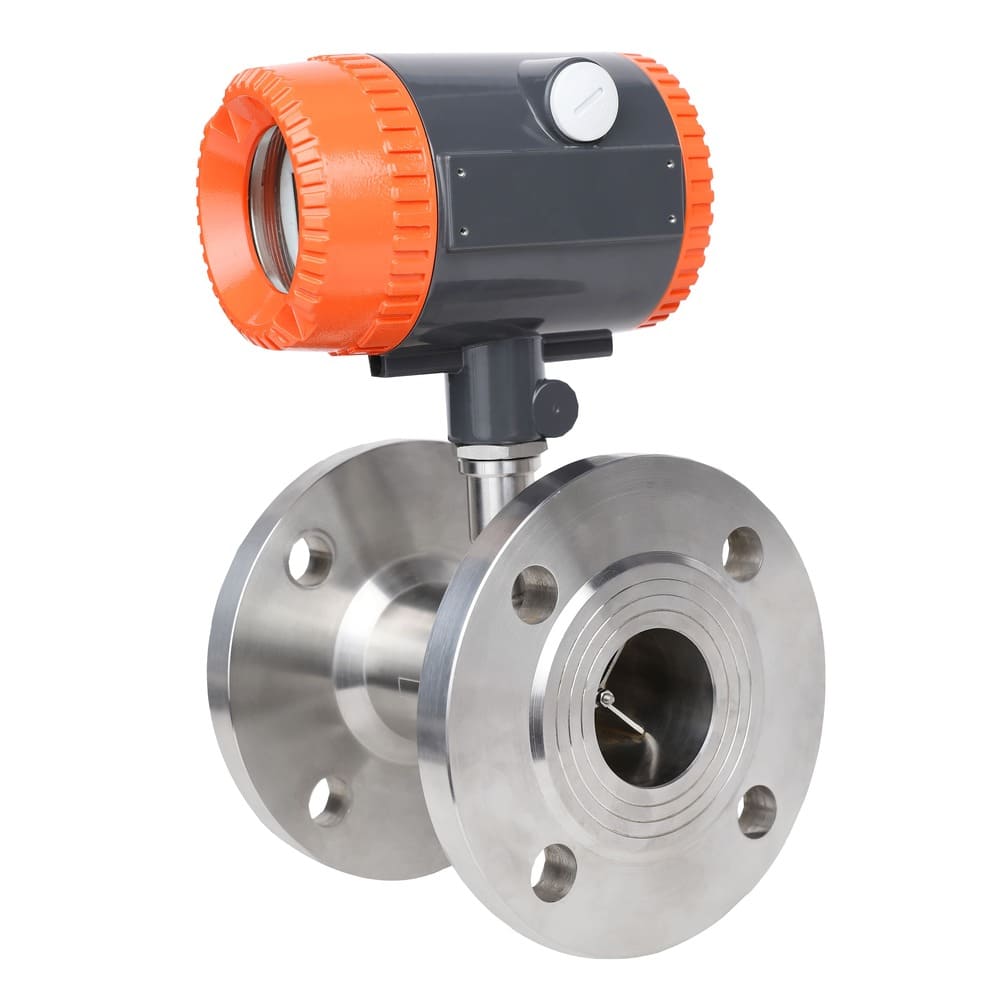

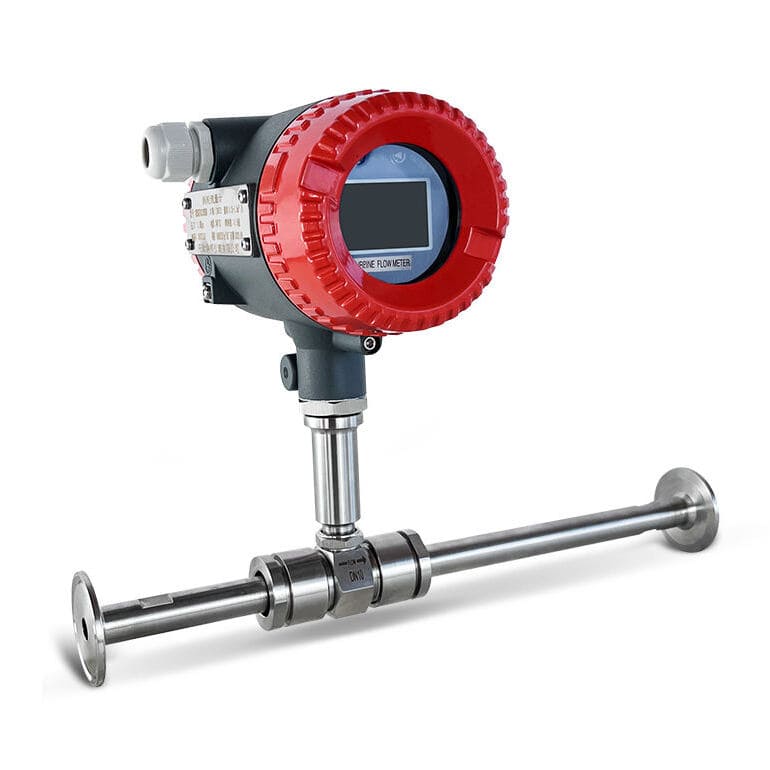

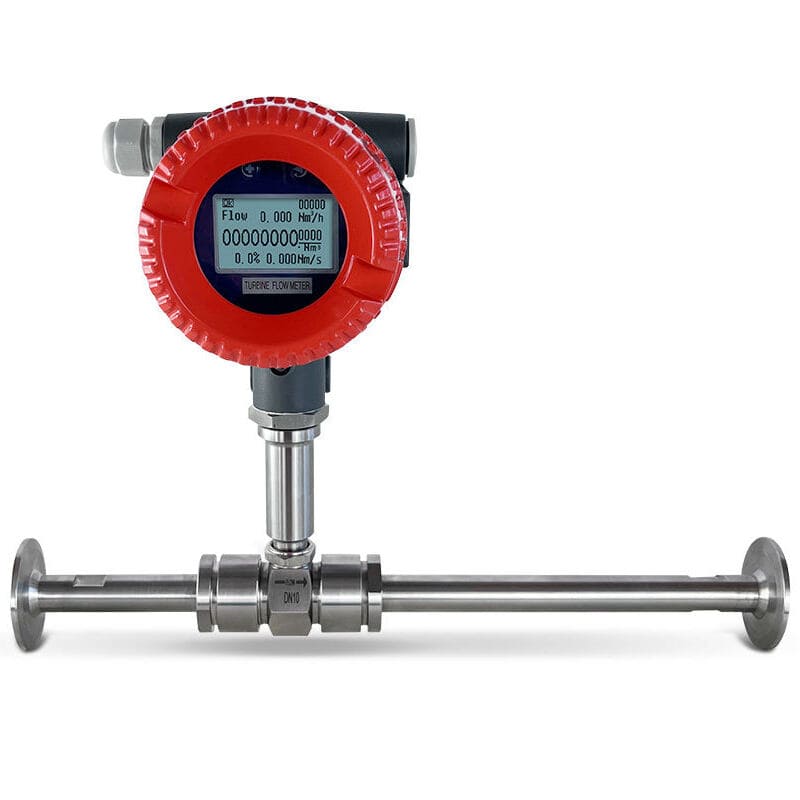

Flanged Turbine Flowmeter
High-accuracy volumetric flow measurement for industrial liquids
Industrial-grade turbine flowmeters with ANSI/DIN flanged connections deliver ±0.5% accuracy for water, petroleum products, and chemicals in pipes from 1" to 12". Precision mechanical measurement meets custody transfer standards for fuel loading terminals, chemical batching, and process applications where billing accuracy matters.
- Pipe Size: DN25 – DN300 (1" – 12")
- Flange Rating: ANSI 150/300, DIN PN16/PN25/PN40
- Flow Accuracy: ±0.5% of reading
- Turndown Ratio: 1:10 to 1:20
- Flow Range: 1 – 1600 m³/h
- Viscosity: 0.3 – 800 cSt
- Temperature: -40°C to +200°C
Request QuotationTechnical Consultation
Proven Accuracy for Critical Measurement Applications
- Custody transfer certified—accurate enough to bill on
- Universal liquid compatibility—measure what electromagnetic cannot
- FDA 21 CFR compliant—validated for pharmaceutical gas applications
- 15-20 year service life
Parameter | Specification |
|---|---|
Measurement Principle | Precision turbine rotor with magnetic or optical pulse generation |
Application | Clean liquid custody transfer, pipeline metering, process control |
Pipe Size Range | DN25 – DN300 (1" – 12") |
Flange Standards | ANSI 150/300/600/900, DIN PN16/25/40/64, JIS 10K/20K |
Flow Accuracy | ±0.5% of reading (standard) | ±0.25% of reading (custody transfer grade) |
Repeatability | ±0.02% (exceptional precision) |
Turndown Ratio | 1:10 (standard) | 1:20 (wide range models) |
Flow Range | 0.6 – 1600 m³/h (pipe size and model dependent) |
Fluid Viscosity | 0.3 – 100 cSt (extended range available) |
Fluid Temperature | -40°C to +150°C (bearing type dependent) |
Body Material | Carbon steel, 304 SS, 316/316L SS (standard) |
Rotor Material | 17-4 PH stainless steel, precision balanced |
Bearing Type | Tungsten carbide, ceramic, or sapphire jewel (application specific) |
Output Signal | Pulse (coil/Hall/reed), 4-20mA, frequency, Modbus |
K-Factor Linearity | ±0.15% over calibrated range |
Fluid Types | Water, fuels, oils, chemicals, glycol, alcohols, LPG |
Protection Rating | IP65 (electronics), IP67 (sensor) |
Data Logging | 10,000+ records internal memory (optional) |
Quality Certifications | CE |
Why Turbine Meters Excel in Certain Applications
vs. Electromagnetic Flowmeters:
- Measures non-conductive fluids (petroleum products, oils)
- Higher accuracy (±0.5% vs ±0.5-1%)
- Better repeatability (±0.02% vs ±0.1%)
- Custody transfer certified (fuel, chemical applications)
- Requires clean fluids (EMF tolerates solids)
- Moving parts need maintenance
vs. Coriolis Mass Flowmeters:
- Lower cost (50-70% less for equivalent accuracy)
- Lower pressure drop
- Field serviceable (Coriolis requires factory service)
- Volumetric measurement only (Coriolis measures mass and density)
- Accuracy affected by viscosity changes
vs. Ultrasonic Flowmeters:
- Better accuracy for custody transfer
- Lower cost for DN25-DN100 range
- Works on aerated or dirty fluids
- Decades of field-proven reliability
- Requires clean fluids
- Moving parts require maintenance
Best Applications for Flanged Turbine:
- Petroleum products custody transfer and billing
- Clean liquid process control requiring ±0.5% accuracy
- Applications where proven technology and field serviceability matter
- Installations where 15-20 year service life justifies investment
Fuel Terminals & Pipeline Custody Transfer
- Gasoline, diesel, jet fuel loading terminals
- Pipeline metering for billing and allocation
- Aviation fuel truck calibration standards
- Marine fuel bunkering operations
- Blending system component metering
- Tank truck loading rack verification

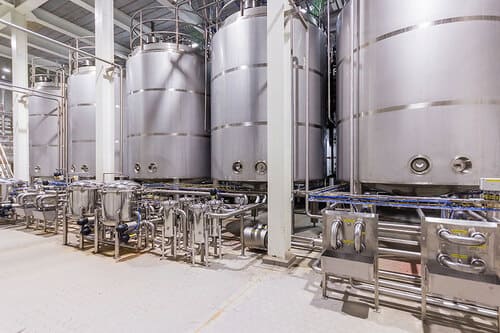

Chemical Manufacturing & Processing
- Raw material receiving and custody transfer
- Inter-plant transfer metering for cost allocation
- Reactor feed ratio control
- Blending and compounding precision
- Solvent and chemical inventory tracking
- Process optimization and efficiency monitoring
Municipal Water & Industrial Utilities
- Large industrial customer billing
- Water treatment plant process control
- Cooling tower makeup measurement
- Boiler feed water monitoring
- District metering zones
- Bulk water sales between utilities
Upstream Oil & Gas Production
- Crude oil transfer measurement
- Well testing and allocation
- Water injection monitoring
- Enhanced oil recovery (EOR) systems
- Pipeline fiscal metering
- Storage terminal operations
Industrial Process & Manufacturing
- Hydraulic system monitoring
- Coolant circulation tracking
- Lubrication delivery verification
- Food & beverage ingredient metering
- Pharmaceutical batch processing
- Automotive manufacturing fluids
Request a Technical Proposal & Competitive Quote
From oil and gas to chemical processing, our flanged turbine flowmeters deliver repeatable accuracy and mechanical durability. Contact us today for technical consultation and a fast quotation.
