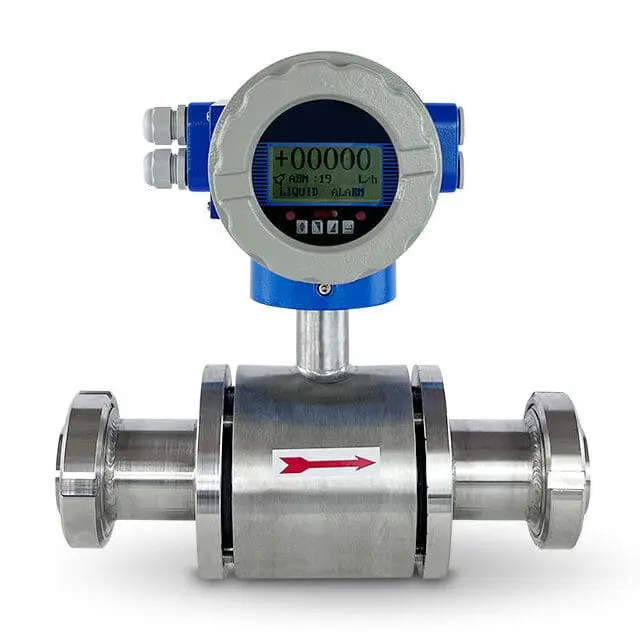

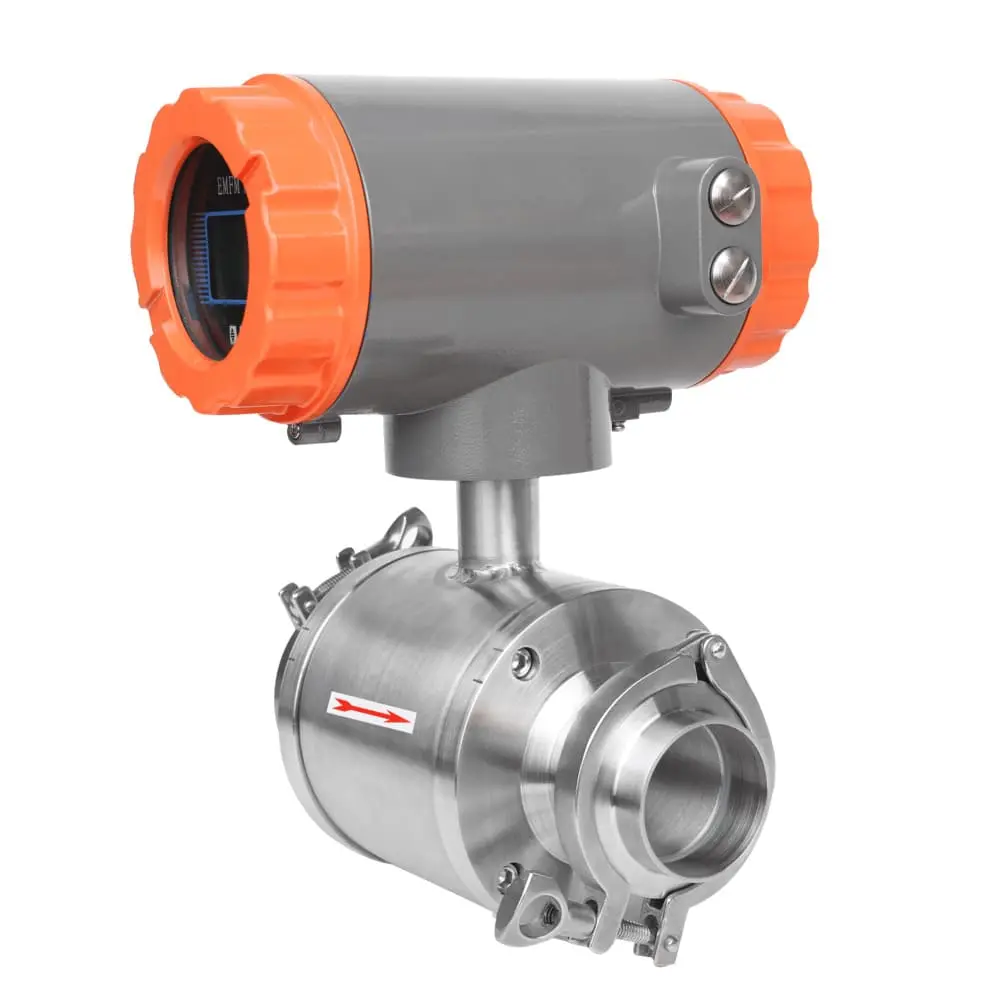

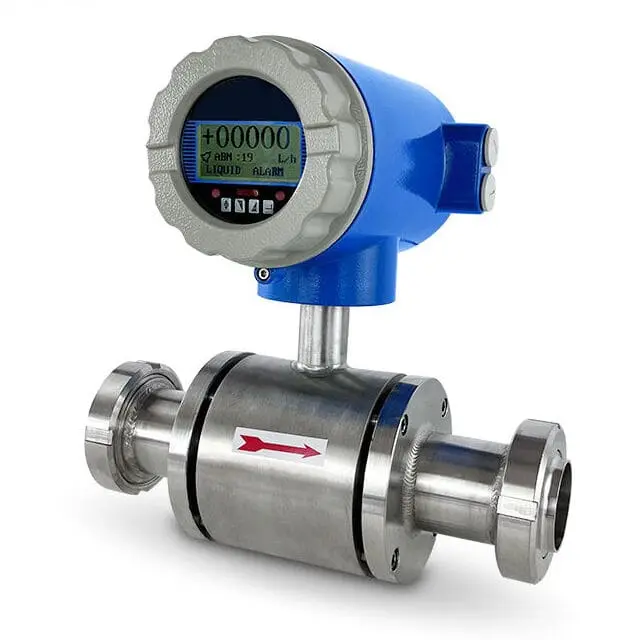

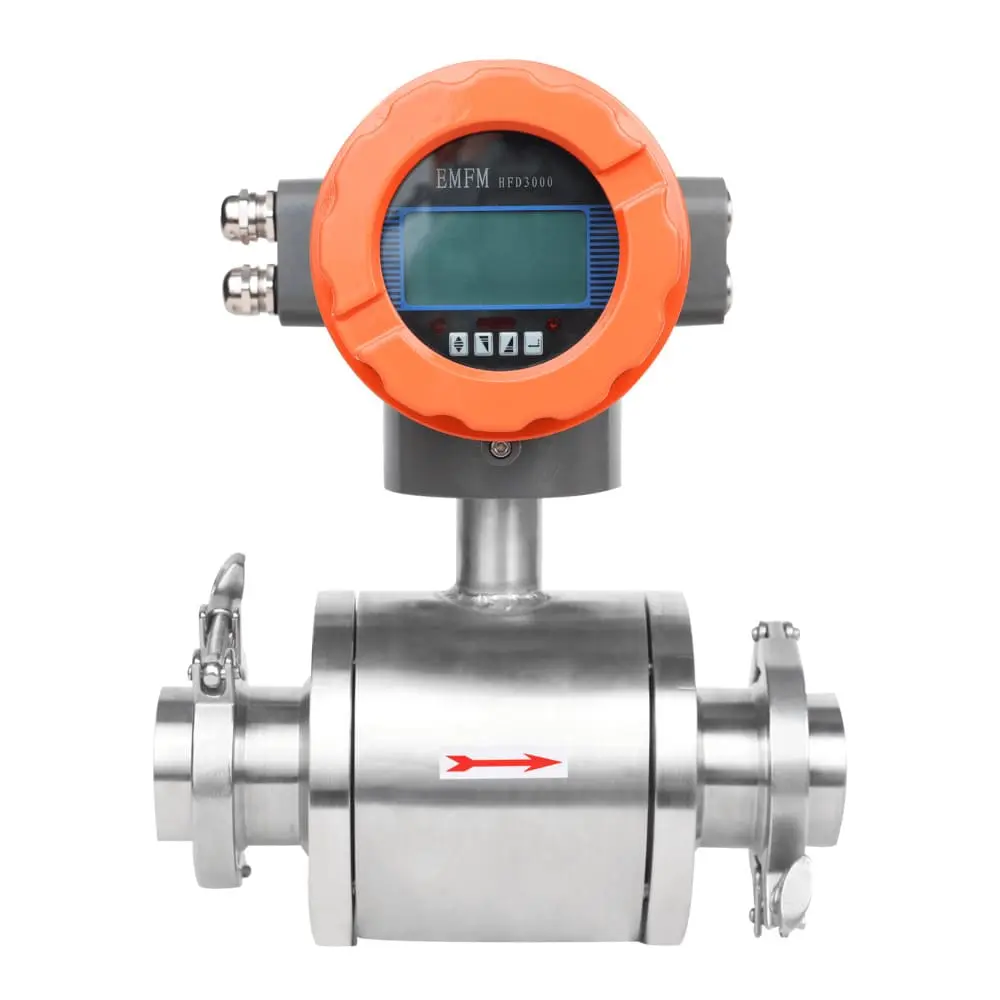

Sanitary Magnetic Flowmeter
Precision Flow Measurement for Food, Pharma, and Biotech Applications
Achieve regulatory compliance and process reliability with electromagnetic flowmeters designed exclusively for sanitary applications. Tool-free tri-clamp installation, 130°C steam sterilization capability, and electropolished surfaces that drain completely prevent contamination while meeting FDA and 3-A standards for pharmaceutical, food, beverage, and biotech manufacturing.
- Pipe Size: DN15 ~ DN200
- Connection: Tri-Clamp
- Flow Accuracy: ±0.5% of reading
- Velocity Range: 0.3 – 10 m/s
- Temperature: -10°C to +130°C (CIP/SIP rated)
- Compliance: 3-A, FDA, EHEDG, CE 1935/2004
Request QuotationTechnical Consultation
Hygienic Design for Sterile Process Environments
Five reasons sanitary electromagnetic flowmeters outperform traditional measurement in food and pharma
- Meets 3-A Sanitary Standards and EHEDG hygienic design guidelines
- 130°C SIP rated—handles steam sterilization without calibration drift
- Complete material traceability for pharmaceutical validation requirements
- 40-50% space reduction versus flanged sanitary meters
- Seconds for removal—enables rapid changeover in multi-product facilities
Parameter | Specification |
|---|---|
Measurement Principle | Electromagnetic (Faraday's Law) - full-bore hygienic design |
Pipe Size Range | DN15 – DN200 |
Connection Type | Tri-Clamp: DIN 32676, ISO 2852, SMS 1145 (specify at order) |
Flow Accuracy | ±0.5% of reading (±0.3% optional for custody transfer) |
Repeatability | ±0.1% of reading |
Velocity Range | 0.3 – 10 m/s (bidirectional) |
Fluid Temperature | -10°C to +130°C (CIP/SIP rated) |
Ambient Temperature | -10°C to +60°C |
Pressure Rating | 0.6 ~ 4.0 MPa |
Conductivity Requirement | ≥ 5 μS/cm (suitable for most food/pharma fluids) |
Body Material | 316L Stainless Steel (1.4404), electropolished to Ra ≤0.4 μm |
Liner Material | PTFE (standard), PFA (high-purity applications) |
Electrode Material | 316L SS (standard), Hastelloy C (corrosive fluids), Platinum (ultra-pure) |
Surface Finish | Electropolished Ra ≤0.4 μm (15 μin) product contact surfaces |
Compliance | 3-A Sanitary Standards, FDA 21 CFR 177.1550, EC 1935/2004, EHEDG |
CIP/SIP Rating | 130°C steam sterilization, pH 1-14 cleaning chemicals |
Display | LCD or OLED: flow rate, totals, batch totals, temperature |
Protection Rating | IP65 (standard) | IP67 (optional) |

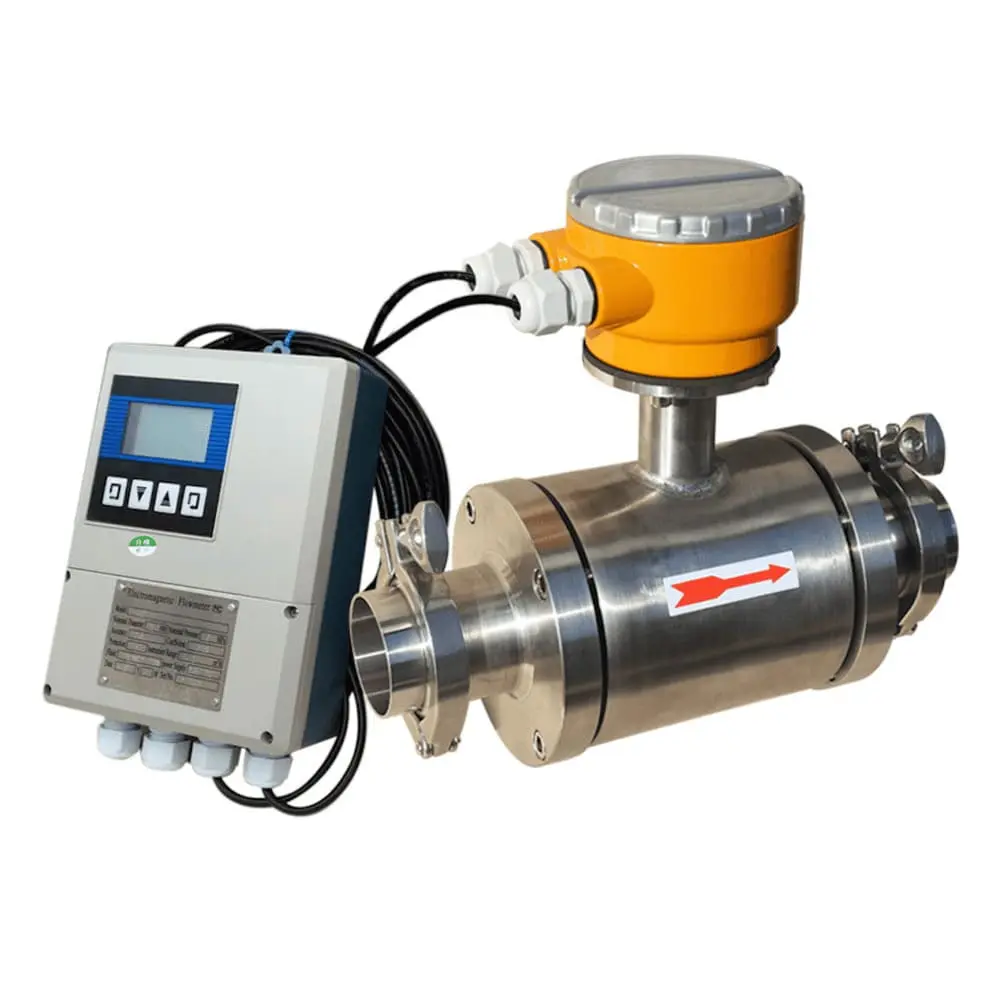

Configuration | Integrated (compact) or Split (remote display) |
Explosion-Proof | SIL-3 Certification |
Quality Standards | CE, ATEX (optional), 3-A Sanitary Standards, EHEDG |
Material & Surface Finish Options
Materials Certified for Food and Pharmaceutical Contac
Specialized materials resist abrasion and erosion in liquid-solid two-phase flow
Body Material:
- 316L Stainless Steel (1.4404): Standard, excellent corrosion resistance
- Electropolish Finish: Ra ≤0.4 μm (15 μin) product contact surfaces
- Passivation: Citric acid passivation per ASTM A967 (standard)
Liner Materials Table:
Lining Material | Temperature Range | Best Applications |
|---|---|---|
PTFE | -10°C to +130°C | General food/beverage, dairy, pharmaceuticals, CIP/SIP processes |
PFA | -10°C to +130°C | High-purity pharmaceuticals, biotech, ultra-pure water, USP applications |
PTFE (F4) | Chemical resistance, moderate abrasion | Corrosive slurries with fine particles, acid/alkali slurries, chemical process streams |
Electrode Materials Table:
Electrode Material | Typical Applications |
|---|---|
316L Stainless Steel | Food, beverage, dairy, general pharmaceutical applications |
Hastelloy C | Acidic foods, citrus products, fermentation broths, aggressive CIP chemicals |
Platinum | Ultra-pure water (WFI), high-purity APIs, biotech cell culture media |
Gasket Material:
- EPDM: Standard for food/beverage, dairy (not for fatty products)
- Viton (FKM): Oils, fats, alcohols, elevated temperatures
- PTFE: Universal chemical resistance, high-purity applications
- Silicone: Pharmaceutical, biotech (USP Class VI certified)
Precision Hygienic Flow Measurement for Regulated Industries
Sanitary design meets food safety, pharmaceutical validation, and biotech sterility requirements
Dairy & Beverage Processing
- Milk and cream transfer
- Yogurt and cultured product batching
- Juice and soft drink production
- Beer and wine processing
- Ingredient dosing and mixing
- Carbonated beverage lines
Pharmaceutical Manufacturing
- API (Active Pharmaceutical Ingredient) transfer
- Formulation and compounding
- Cleaning solution verification
- SIP cycle monitoring
- Buffer and media preparation
- Sterile fill operations
Biotechnology & Life Sciences
- Cell culture media delivery
- Fermentation broth measurement
- Harvest and clarification streams
- Chromatography feed control
- Ultrafiltration/diafiltration
- Single-use system integration
Food Processing & Ingredients
- Sauces and condiments
- Edible oils and fats
- Chocolate and confectionery
- Sweetener solutions
- Protein slurries
Cosmetics & Personal Care
- Lotion and cream production
- Shampoo and conditioner batching
- Liquid soap manufacturing
- Toothpaste ingredient metering
- Fragrance and essential oil dosing
- Emulsion preparation
Hygienic installation in three steps: positioning, connection, commissioning
Step 1: System Positioning
- Orientation: Install horizontally or vertically (upward flow preferred). Avoid air entrapment at high points. Position for complete drainage during CIP.
- Straight Pipe: Minimum 3D upstream, 2D downstream. Compact requirements enable tight skid integration.
- Access: Ensure tri-clamp ferrule accessible for removal without disturbing adjacent piping.
Step 2: Tri-Clamp Connection
- Slide tri-clamp ferrules onto pipe ends
- Position gasket between ferrule faces (ensure proper centering)
- Install tri-clamp band and tighten evenly
Gasket Selection: Match gasket material to process fluid and temperature. EPDM standard; Viton for oils/fats; PTFE for high-purity.
Alignment: Verify flow direction arrow matches process flow. Electrode orientation not critical (self-compensating).
Step 3: Electrical & Commissioning
- Power: Connect AC or DC power per voltage rating. Converter may be integrated or remotely mounted (split configuration).
- Grounding: Ground flowmeter to facility ground. Non-conductive gaskets may require grounding rings.
- Zero Calibration: Fill pipe with static process fluid. Execute zero adjustment. Verify <0.1% of full scale.
- CIP Verification: Run CIP cycle. Verify cleanliness. Confirm zero stability post-cleaning.
Critical Requirements
- Drainage: Install with slight slope for complete drainage. Eliminate low points where product can pool.
- Air Elimination: Avoid high points. Provide air bleed if required by process piping configuration.
- CIP Flow: Ensure CIP flow rate sufficient to clean electrode surfaces (minimum 1.5 m/s velocity recommended).
Get Your Free Quote Now
Tell us your application requirements—our team will recommend the optimal tri-clamp size, liner material, and compliance certifications for your process within 24 hours.
