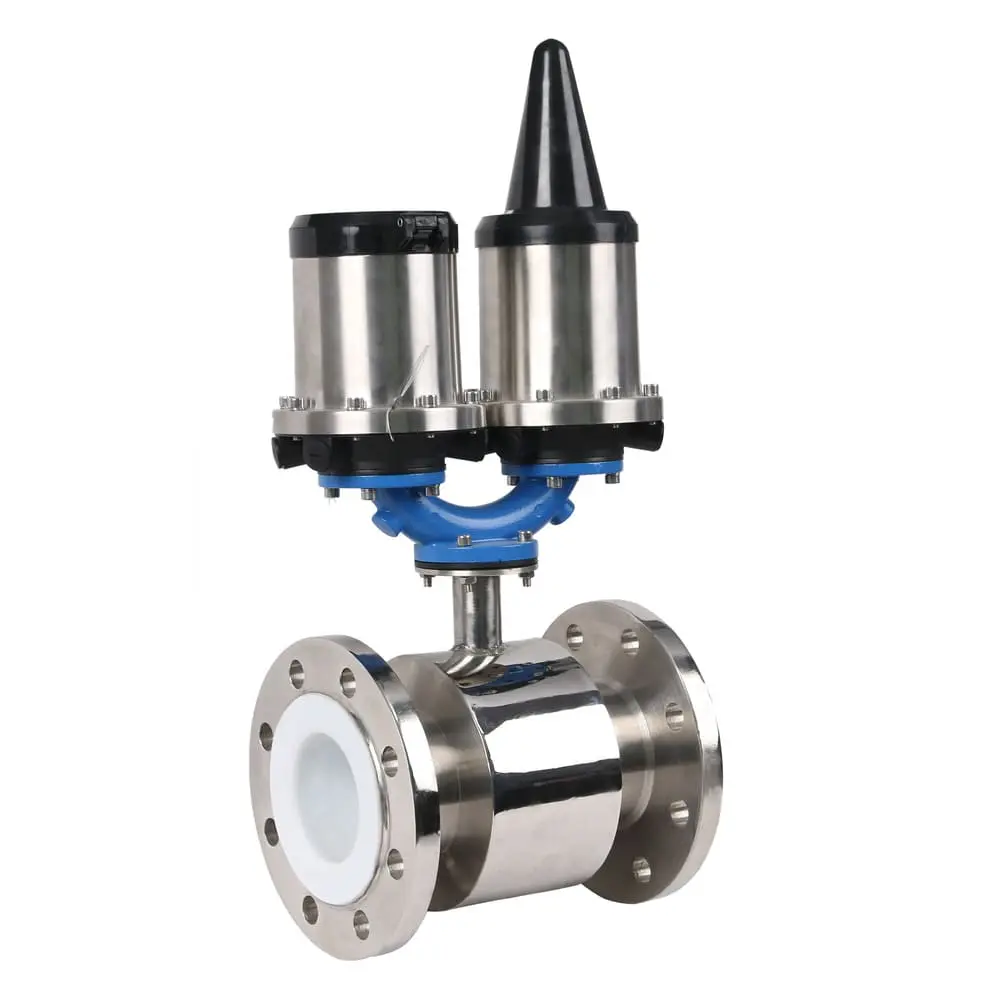

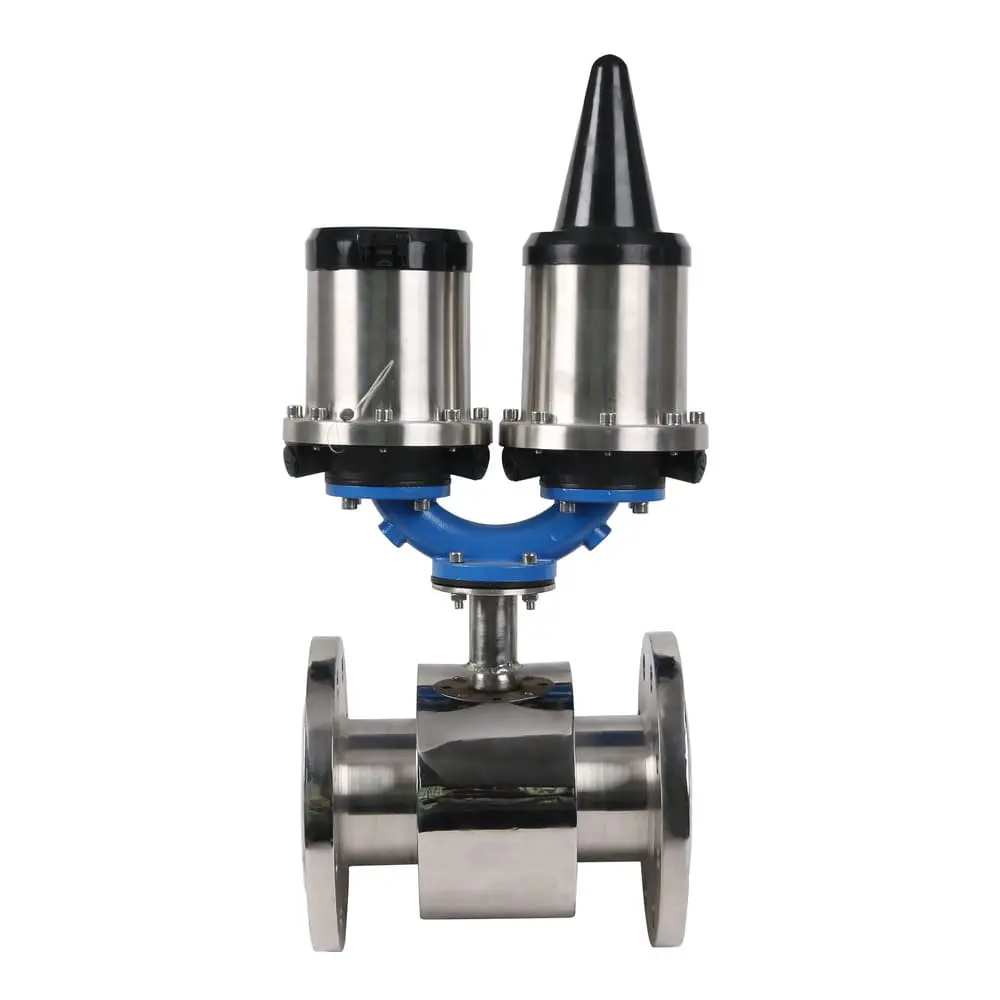

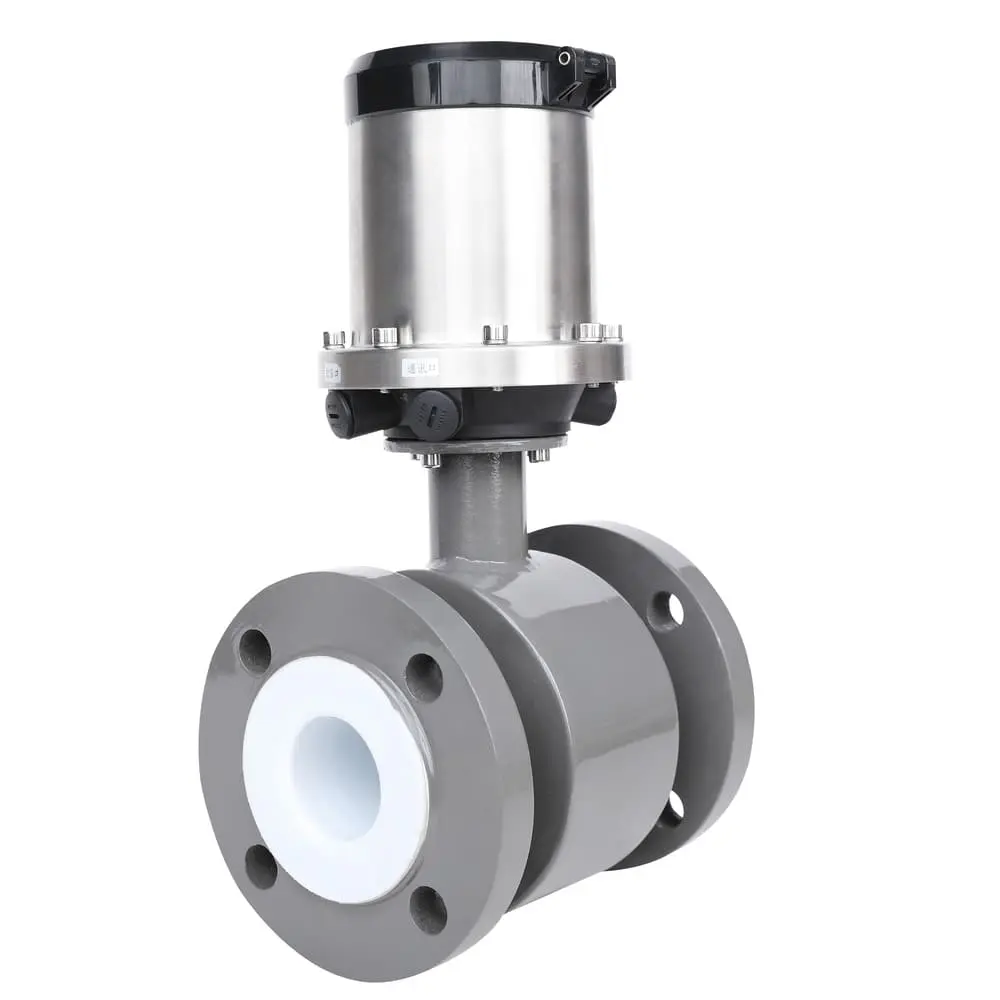

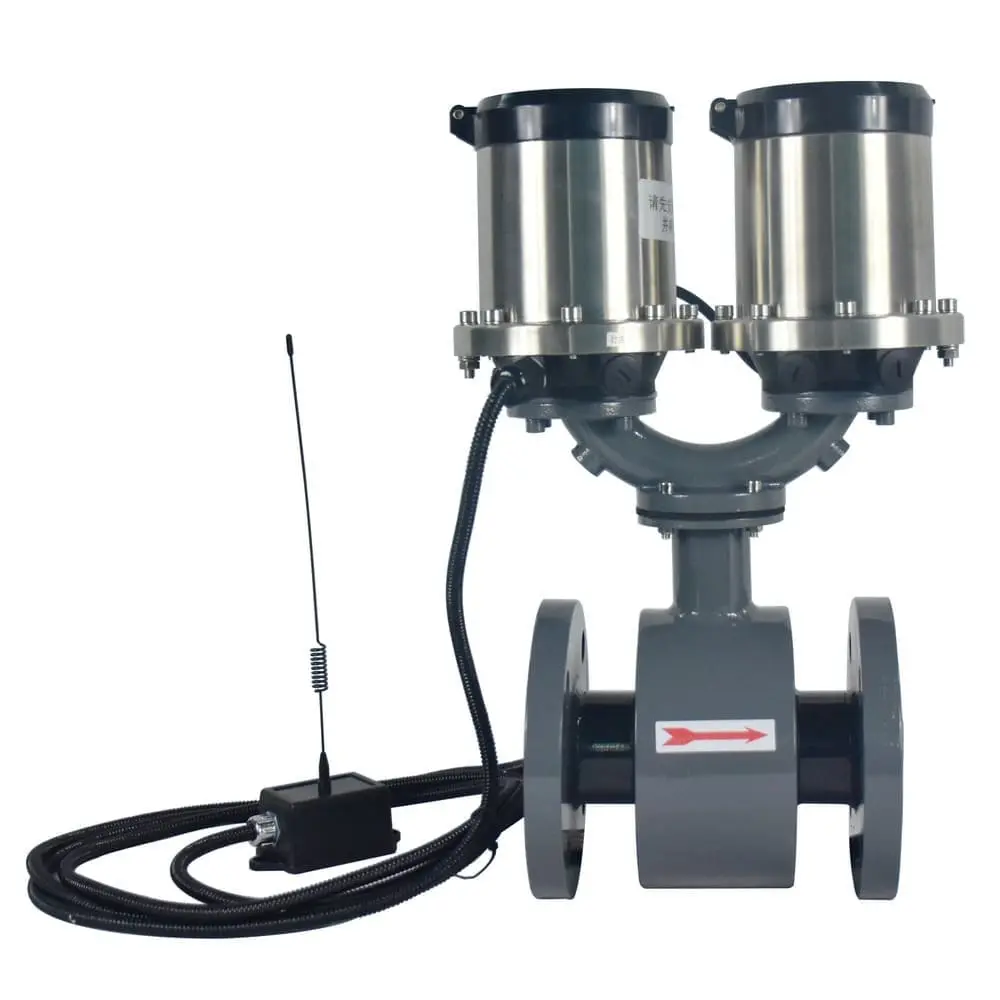

Battery-Powered Electromagnetic Flowmeter
Autonomous flow measurement for off-grid water supply systems—this flowmeter operates on 3.6V battery power for areas unreachable by outdoor power grids. Unlike AC-powered meters requiring costly cable trenching and electrical installations, battery operation with integrated GPRS wireless transmission enables deployment at remote tap water networks, isolated pump stations, agricultural water points, and distributed metering locations where grid power is unavailable or prohibitively expensive—delivering ±0.5% to ±1.5% accuracy with zero installation electrical work and real-time cloud data access from any location worldwide.
- Pipe Size: DN10 – DN1200
- Accuracy: ±0.5% / ±1.0% / ±1.5% (selectable)
- Velocity Range: 0.1 – 10 m/s
- Temperature: -25°C to +80°C
- Pressure: 0.6 – 4.0 MPa
- Wireless: GPRS/4G/NB-IoT/LoRaWAN
Request QuotationTechnical Consultation
Flow Measurement Where Power Infrastructure Doesn't Exist
Six reasons battery power and wireless communication solve remote metering challenges
- Eliminate electrical installation costs—deploy where AC power is unavailable
- Real-time remote monitoring via GPRS—eliminate manual meter reading site visits
- Dual power capability—continuous operation through power outages
- IP68 submersible—operates reliably through flooding and submersion
- 0.6-4.0 MPa pressure range—one meter design serves multiple system zones
- Integrated or split configuration—optimize for installation constraints
Parameter | Specification |
|---|---|
Measurement Principle | Electromagnetic (Faraday's Law) - low-power pulsed DC excitation |
Pipe Size Range | DN10 – DN1200 |
Flow Accuracy | ±0.5% / ±1.0% / ±1.5% of reading (selectable accuracy classes) |
Repeatability | ±0.1% of reading |
Velocity Range | 0.1 – 10 m/s (bidirectional) |
Operating Pressure | 0.6 – 4.0 MPa (standard range, higher pressures by customization) |
Fluid Temperature | -25°C to +80°C |
Ambient Temperature | -25°C to +80°C |
Conductivity Requirement | ≥ 5 μS/cm (suitable for tap water and most natural water) |
Liner Materials | Neoprene (Polychloroprene Rubber), PTFE |
Electrode Materials | 316L SS, Hastelloy B, Hastelloy C, Titanium, Tantalum, Platinum-Iridium, Tungsten Carbide Coated SS |
Sensor Body Material | Carbon Steel (standard), 304 SS (customized), 316 SS (customized) |
Power Supply | 3.6V Lithium Battery (battery-only mode) |
External Power Option | 85-250V AC (45-63Hz) or 20-36VDC (for dual power models) |
Battery Life | 3-5 years typical (varies with sampling/transmission interval) |
Wireless Communication | GPRS wireless remote transmission (Full Netcom SIM card) |
Output Signals | RS485 interface, GPRS wireless transmission，Pulse, 4-20mA (requires external power supply), |
Protection Rating | IP68 (sensor and converter) |
Data Transmission | Configurable interval: hourly to daily reporting |
Explosion-Proof | SIL-3 Certification |
Quality Standards | CE Certification |
Liner & Electrode Material Selection Guide
Materials for Water Supply Applications
Select materials matched to water chemistry and service conditions
Liner Materials Table:
Lining Material | Temperature Range | Chemical Resistance | Best Applications |
|---|---|---|---|
Neoprene | -25°C to +80°C | Good for potable water, mild chemicals | Tap water supply systems, municipal water distribution, drinking water networks, irrigation water |
PTFE | 25°C to +130°C | Universal chemical resistance | Treated water with chemical residuals, water with aggressive disinfectants (chlorine), high-purity water |
Electrode Materials Table:
Electrode Material | Erosion Resistance | Typical Applications |
|---|---|---|
316L Stainless Steel | General purpose, moderate corrosion | Potable water, tap water supply, clean groundwater, neutral pH water |
Hastelloy B | Excellent for non-oxidizing acids | Water with reducing chemical residuals, specialized industrial water |
Hastelloy C | Superior for oxidizing acids and chlorides | Chlorinated water, water treatment plant effluent, seawater-influenced supplies |
Titanium | Excellent for chlorides and seawater | Coastal water systems, desalination plant water, sodium hypochlorite treated water |
Tantalum | Extreme corrosion resistance | Highly treated water, aggressive disinfectant concentrations, extreme pH water |
Platinum-Iridium Alloy | Universal chemical inertness | Ultra-pure water, pharmaceutical-grade water, research water systems |
Tungsten Carbide Coated Stainless Steel | Erosion resistance | Water with suspended sediment, sandy well water, unfiltered irrigation water |
IP68 Rating Specifications :
- Dust Protection: Completely dust-tight—no particulate ingress under any conditions
- Water Protection: Continuous submersion up to 3 meters depth without water ingress
- Testing Standard: Submersion for 72 hours minimum at rated depth
- Application Environments: Underground meter vaults, flood-prone channels, partially submerged installations, wet wells, coastal splash zones
Optimized for Off-Grid Water Supply Metering
Battery power and wireless transmission solve measurement challenges where grid infrastructure is unavailable
Remote Tap Water Supply Systems
- Rural village water distribution
- Mountain community water networks
- Remote housing development water delivery
- Scattered municipal water service extensions
- Temporary water supply to construction areas
- Emergency water distribution points

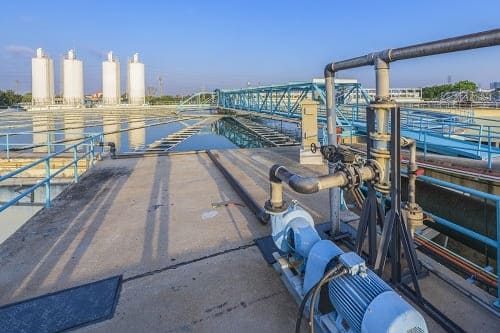

Remote Water Infrastructure
- Remote industrial facility water
- Remote pump station monitoring
- Off-grid water treatment plants
- Scattered water storage tank supply
- Mine site water supply
- Camp and temporary facility water
Agricultural Irrigation Networks
- Irrigation district lateral metering
- Water rights allocation points
- Groundwater well pumping stations
- Agricultural water cooperative billing points
- Crop water use verification
- Canal offtake flow monitoring
Water District Management
- District metered area (DMA) boundaries
- Zone metering for leak detection
- Inter-district transfer measurement
- Temporary metering during repairs
- Water audit program deployment
- Service area flow monitoring
Water Utility Operations
- Bulk water sales metering
- Wholesale water delivery points
- Inter-municipal water transfers
- Non-revenue water tracking
- Pressure zone monitoring
- System optimization projects
Rapid Installation Without Electrical Infrastructure
Mechanical installation identical to standard flowmeters—add wireless activation for complete deployment
Critical Installation Requirements
1. GPRS Signal Strength Verification
- Mandatory pre-installation test—do not install in areas with <-110 dBm signal
- Use signal strength app or converter display to verify
- Test at installation height and location (signal varies with elevation)
- Consider external antenna for underground vault installations
2. Straight Pipe Requirements
- Minimum: 5D upstream, 3D downstream (D = pipe diameter)
- Recommended: 10D upstream, 5D downstream for custody transfer accuracy
- After pumps, bends, or valves: increase to 15D upstream when possible
3. Battery Life Optimization
Configure for maximum battery life:
- Sampling interval: 1 hour (vs. 1 minute for continuous monitoring)
- Transmission interval: 24 hours (batch transmit daily vs. real-time)
- Display: Disable LCD if not required for local reading
- Expected life: 4-5 years with hourly sampling and daily transmission
Ready to Deploy Remote Flow Monitoring Without Power Infrastructure?
Our battery-powered metering specialists will help you verify GPRS signal coverage, configure optimal sampling intervals for battery life, and design cloud platform integration for your water supply network.
