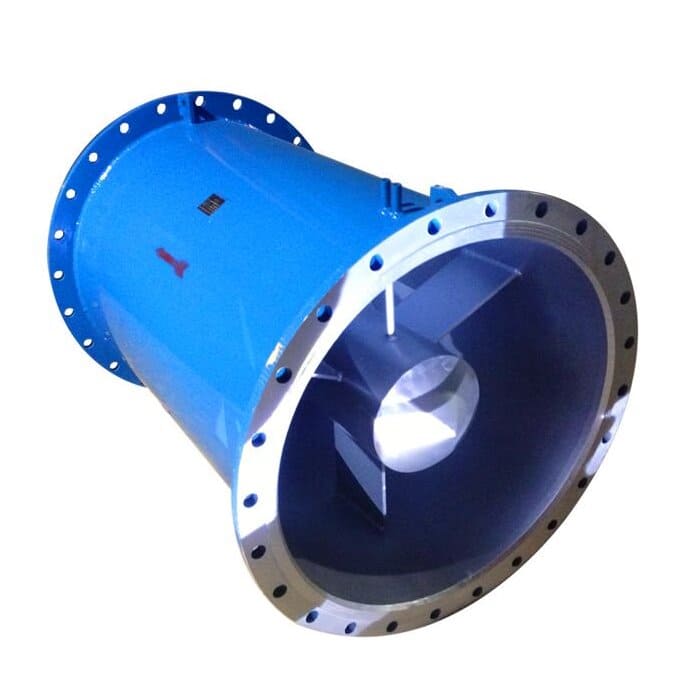

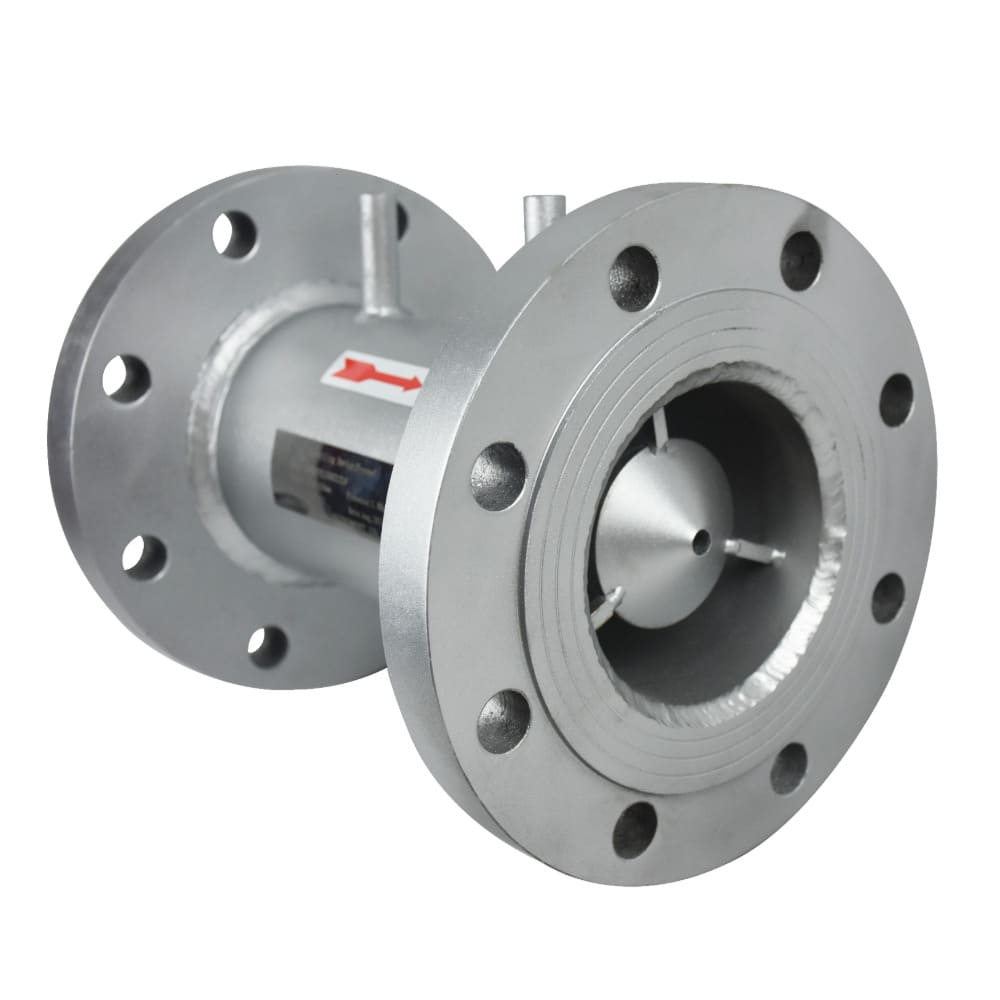

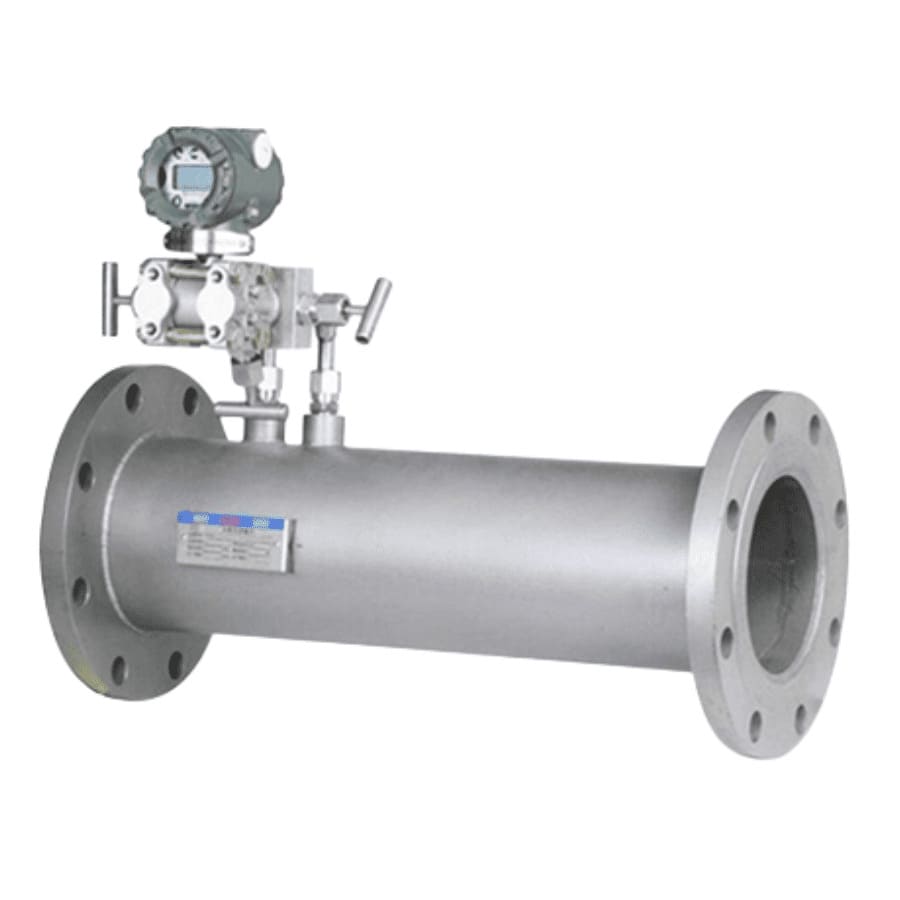

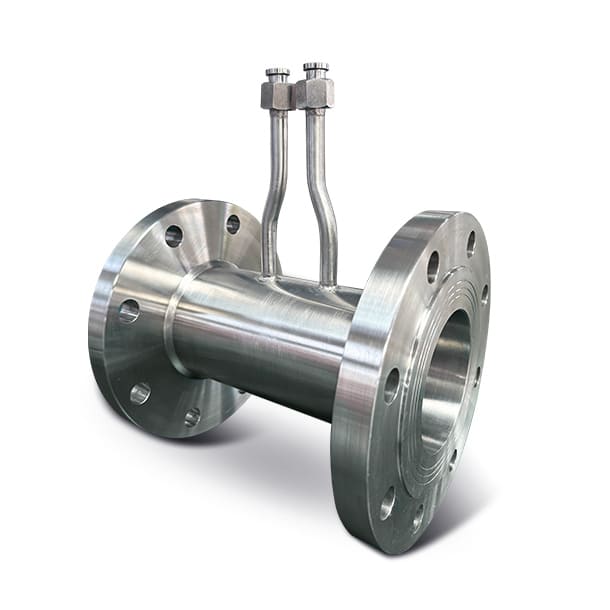

V-Cone Flowmeter
A self-rectifying 3-D flow solution engineered to deliver ±0.5% precision in extreme temperatures up to 850°C and space-constrained pipelines requiring zero straight-pipe runs

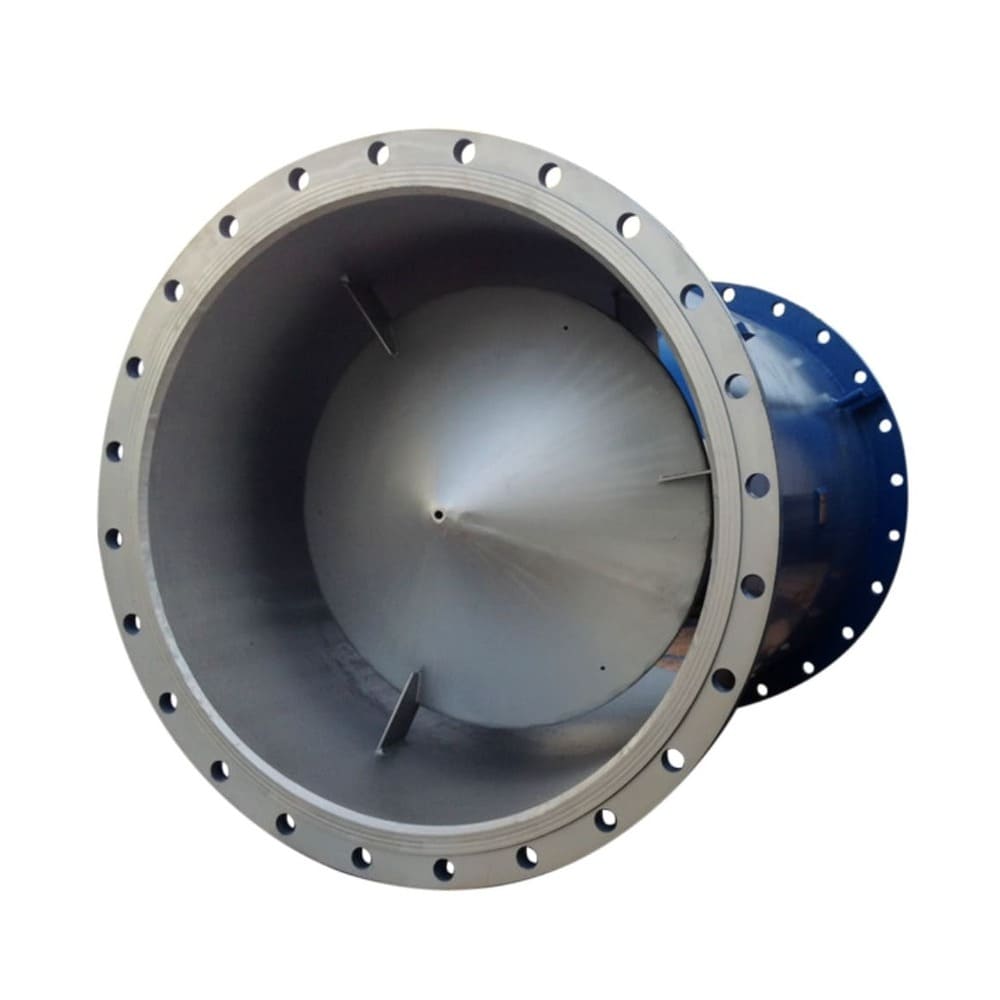

Specifically designed for unclean fluids and gas-liquid two-phase media, the V-cone flowmeter features a "no stagnation zone" architecture. The aerodynamic shape of the cone forces media to flow around the edges, preventing the accumulation of dirt, moisture, or debris. This results in a wear-resistant, maintenance-free solution for coke oven gas and industrial wastewater.
- Accuracy: ±0.5% (Reading), ±0.3% (Special Custom)
- Repeatability: Better than ±0.1%
- Nominal Diameter: DN15 – DN600 (½" – 24")
- Temperature Range: Deep low temperature up to 850°C
- 8,000 – 10,000,000+
Request QuotationTechnical Consultation
Solve the Straight Pipe Problem in Constrained Installations
Parameter | Specification |
|---|---|

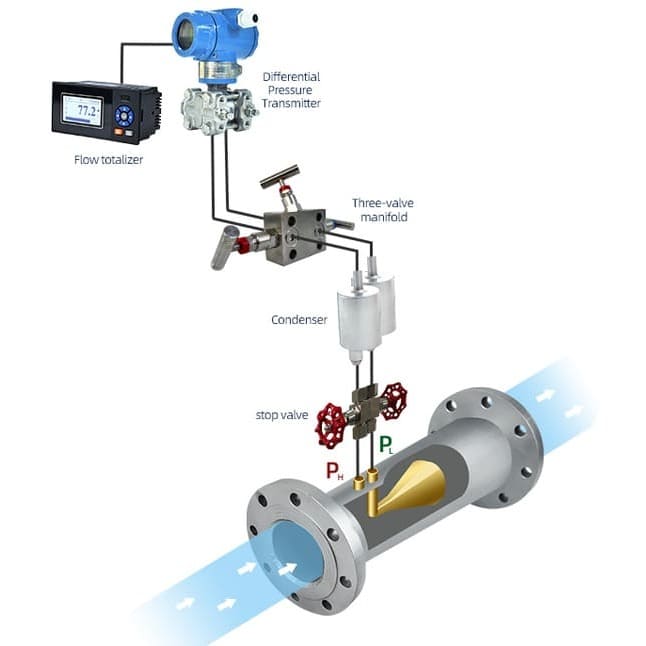

Measurement Principle | Differential pressure (DP) with central cone element |
Application | Gas, liquid, steam, dirty fluids, slurries, wet gases |
Measured Fluids | Natural gas, compressed air, steam, water, chemicals, crude oil, slurries |
Pipe Size Range | DN15 – DN600 (½" – 24") |
Flow Accuracy | ±0.5% of reading (±1% of rate standard) |
Repeatability | ±0.1% of reading |
Rangeability | 10:1 standard, 20:1 optional (dual transmitter configuration) |
Reynolds Number Range | 8,000 – 10,000,000+ |
Straight Pipe Requirements | 0-3D upstream, 0-1D downstream |
Beta Ratio (β) | 0.45 – 0.85 (application and pipe size dependent) |
Permanent Pressure Loss | 50-70% lower than orifice plate at equivalent β |
Viscosity Range | 0.2 – 1000 cP |
Cone Material | 304 SS, 316/316L SS, Duplex, Hastelloy C, Titanium, Monel |
Differential Transmitter | 4-20mA HART, Foundation Fieldbus, Profibus, Wireless HART |
Display Options | Local LCD display, totalizer, diagnostics |
Output Signals | 4-20mA (isolated), Pulse, Modbus, HART |
Flow Computer Integration | Compatible with all DP flow computers, AGA/ISO algorithms |
Calibration Standards | SO 5167 derivative, NIST traceable calibration |
Quality Certifications | CE |
When to Choose Differential Pressure Over Other Technologies
Comparison with Electromagnetic & Ultrasonic Flowmeters
V-Cone Advantages:
- No electrical power required (DP transmitter only needs 12-24V DC)
- Works with any fluid (conductive or non-conductive, clean or dirty)
- Proven technology (DP measurement understood globally)
- High-temperature capability (to +400°C with appropriate materials)
- Extreme pressure capability (to 420 bar)
- Lower cost than electromagnetic for large pipes (>DN300)
- No moving parts, no wetted electronics
When to Choose Electromagnetic:
- Higher accuracy required (±0.2-0.5% vs. ±0.5-1%)
- Zero pressure drop critical
- Bidirectional flow measurement
- Very low flow velocities (<0.3 m/s)
- Fluid is conductive liquid only
When to Choose Ultrasonic:
- Non-invasive installation preferred (clamp-on)
- Cannot tolerate any pressure drop
- Custody transfer accuracy critical
V-Cone Sweet Spot:
- Gas, steam, or liquid measurement
- pace-constrained installations
- Dirty fluids or slurries
- Wide temperature/pressure range
- Moderate pressure drop acceptable
V-Cone Flow Measurement Across Critical Applications
Proven performance in space-constrained and challenging fluid conditions
Unclean Gas & Coke Oven Gas Monitoring
The definitive solution for "dirty" gas measurement in steel and petrochemical plants. Its self-cleaning design prevents the accumulation of tars and moisture, ensuring consistent flow data in environments that clog traditional meters.
High-Pressure Steam & Power Generation
Optimized for superheated and saturated steam at temperatures reaching 850°C. Its rugged construction and stable signal output provide the mass-flow data required for high-efficiency boiler control and energy audits.

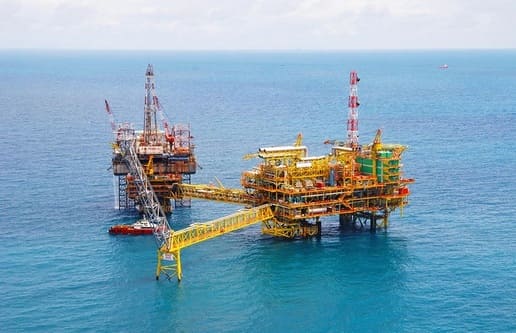

Offshore Oil & Space-Constrained Retrofits
The primary choice for offshore platforms and crowded mechanical rooms. Its 0-3D straight-pipe requirement allows precision measurement points to be added to existing manifolds without expensive structural changes.

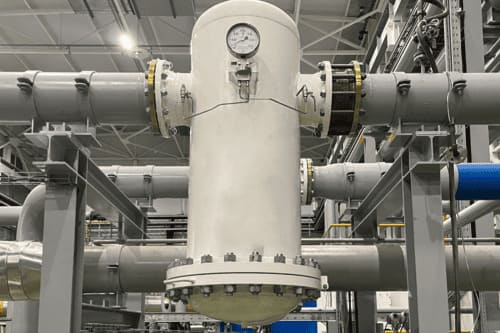

Compressed Air & Nitrogen Distribution
Provides high-sensitivity tracking for industrial gas systems. The V-cone’s high-frequency signal resolution captures subtle flow fluctuations, identifying system leaks and optimizing air compressor bank efficiency.
Gas-Liquid Two-Phase (Moisture) Measurement
Uniquely capable of handling fluids with a liquid mass percentage up to 5%. This ensures accurate data for wet natural gas and biogas applications where standard differential pressure meters lose stability.
Accurate Flow Measurement Where Straight Pipe Doesn't Exist
Stop letting installation constraints limit your measurement options. Get V-Cone specifications for your space-limited application—receive sizing and pricing within 24 hours.
