Differential Pressure Flowmeter

Flexible DP Flow Solutions for Demanding Industrial Applications

Built around orifice plate, Venturi, and V-cone technologies, differential pressure flowmeters remain the trusted choice for steam, gas, and demanding liquid service. It support accurate flow measurement across power, chemical, oil and gas, and utility systems with flexible design for different process conditions.

Technology Selection

Is Differential Pressure Flowmeter Right for Your Application?

No other flow technology operates reliably across gas, liquid, and steam at extreme temperature and pressure — but the tradeoffs in accuracy and turndown must be weighed against your process demands.

Differential Pressure Flowmeter Excels Here

Your process runs in at extreme temperature or pressure

Your medium is steam, gas, or process liquid

Your process fluid is dirty, wet, or two-phase

Your pipeline is closed, full-bore, and pressurized

Your application accepts some permanent pressure loss

Your pipeline exceeds DN300 and inline full-bore meter costs are prohibitive

Consider Alternatives Instead

Your process cannot sustain any permanent pressure loss

Your line has severely disturbed or unstable flow profiles

Your fluid is highly viscous, solids-laden, and prone to scaling

Your fluid contains heavy aeration or flashing liquid

Your flow rate varies widely

Your process demands higher available accuracy

Not sure if differential pressure flowmeter is the right fit?

Submit your medium and operating conditions — we’ll confirm whether DP flow measurement is the right choice, or recommend a better-fit solution.
Get Technology Confirmation

Performance Advantages

Key Process Benefits of Differential Pressure Flow Measurement

Differential pressure flowmeters are widely used because they perform across complex media types and severe process conditions with dependable stability. Their mature technology, flexible primary-element designs, and broad industrial acceptance make them a practical choice for long-term plant operation.

Extreme Pressure Tolerance

Engineered to operate flawlessly in high-pressure environments up to 42MPa, ensuring safety and data integrity for critical gas and steam pipelines.

Fluid-Independent Accuracy

Measurement accuracy remains consistent even when temperature, viscosity, density, or pressure fluctuate during operation, no recalibration.

Extreme Thermal Resilience

Engineered to perform in temperatures exceeding 850°C, offering superior thermal stability for superheated steam and high-heat process gas applications.

Configurable Flow Range

Offers flexible sizing and throttling geometry to perfectly match your specific pipe diameter and required flow capacity for precision output.

Universal Fluid Capability

Eliminate the costs of replacing sensor or impeller. The simple, non-moving structure ensures a "set-and-forget" installation that drastically lowers lifecycle expenses.

Low-Maintenance Design

With no moving parts in the primary element, it reduces wear-related failures and helps lower routine maintenance over long operating cycles

Find Your Installation Match

Accurate Flow Measurement Starts with an Accurate Specification

Calibration-free

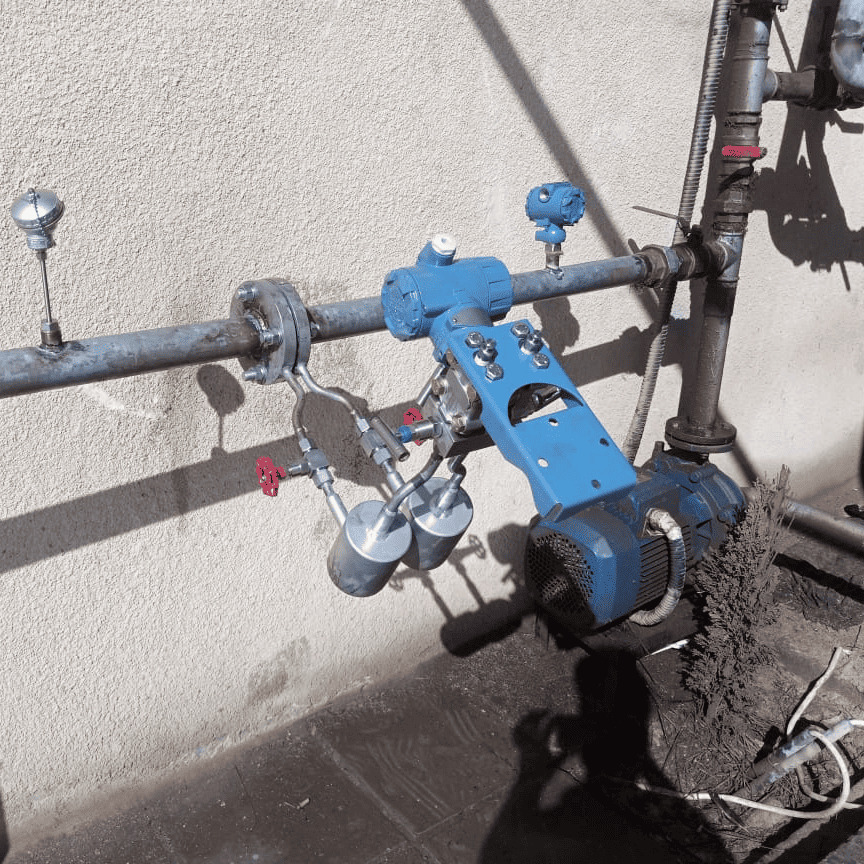

Orifice Plate Flowmeter

Certified for fiscal metering without field calibration, at any pipe size and pressure.
  • Ideal for natural gas billing, steam metering, petrochemical process streams, and any regulatory or fiscal metering point requiring traceable, auditable records.
More details
Lowest pressure loss

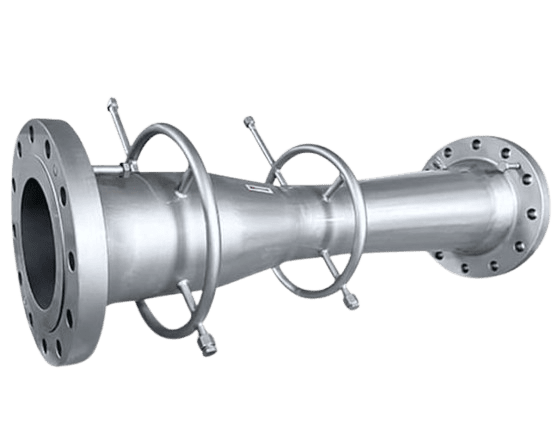

Venturi Tube Flowmeter

High-accuracy measurement with the lowest pressure loss of any DP flowmeter
  • Best for main steam lines, large-bore feedwater circuits, high-flow gas distribution headers, and long-run pipelines where pressure drop has direct operating cost
More details
Self-conditioning

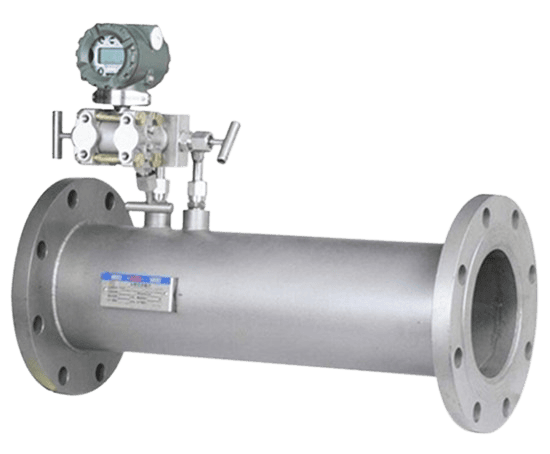

V-Cone Flowmeter

Self-conditioning design for extreme pressures and tight installation spaces.
  • Specified for high-pressure upstream production, wet gas allocation metering, retrofit installation on existing pipework, and challenging flow conditions where standard orifice plates erode or block.
More details

Industries & Applications

From Steam Mains to Pipeline Custody — The Trusted Standard Across Critical Industries

    Industrial Water Systems

    Monitoring large-diameter municipal water mains, industrial cooling water circuits, and high-flow treatment plant distribution networks.

    Oil & Gas Refining

    Tracking crude oil transfers, refined product blending, and high-pressure hydrocarbon gas streams within refinery secondary processing loops.

    Natural Gas Distribution

    Fiscal-grade custody transfer metering at city gate stations, industrial sub-metering, and high-pressure gas flow control.

    Steel & Metallurgy

    Regulating furnace combustion gas ratios, tracking oxygen/fuel gas mixing, and monitoring high-velocity cooling air in steel refining.

    Chemical Processing

    Metering corrosive acid and alkali distribution, high-temperature solvent transfer, and process fluid accounting in volatile petrochemical pipelines.

    Thermal Power Generation

    Monitoring high-pressure boiler feedwater, steam condensate return circuits, and main steam headers for optimal power plant thermal efficiency.

    Pulp, Paper & Forest Products

    Managing primary steam supply for drying lines, paper pulp stock circulation, and chemical additive flow control.

    District Heating Networks

    Measuring primary steam distribution, large-scale hot water heating loops, and thermal BTU accounting for municipal heating energy networks.

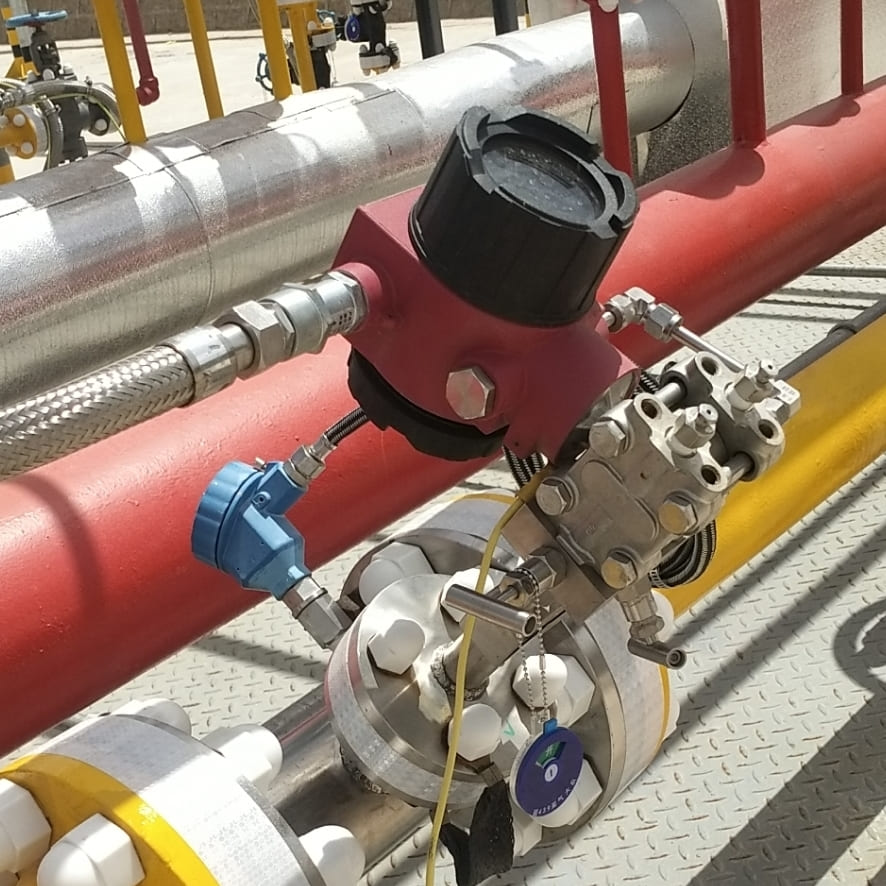

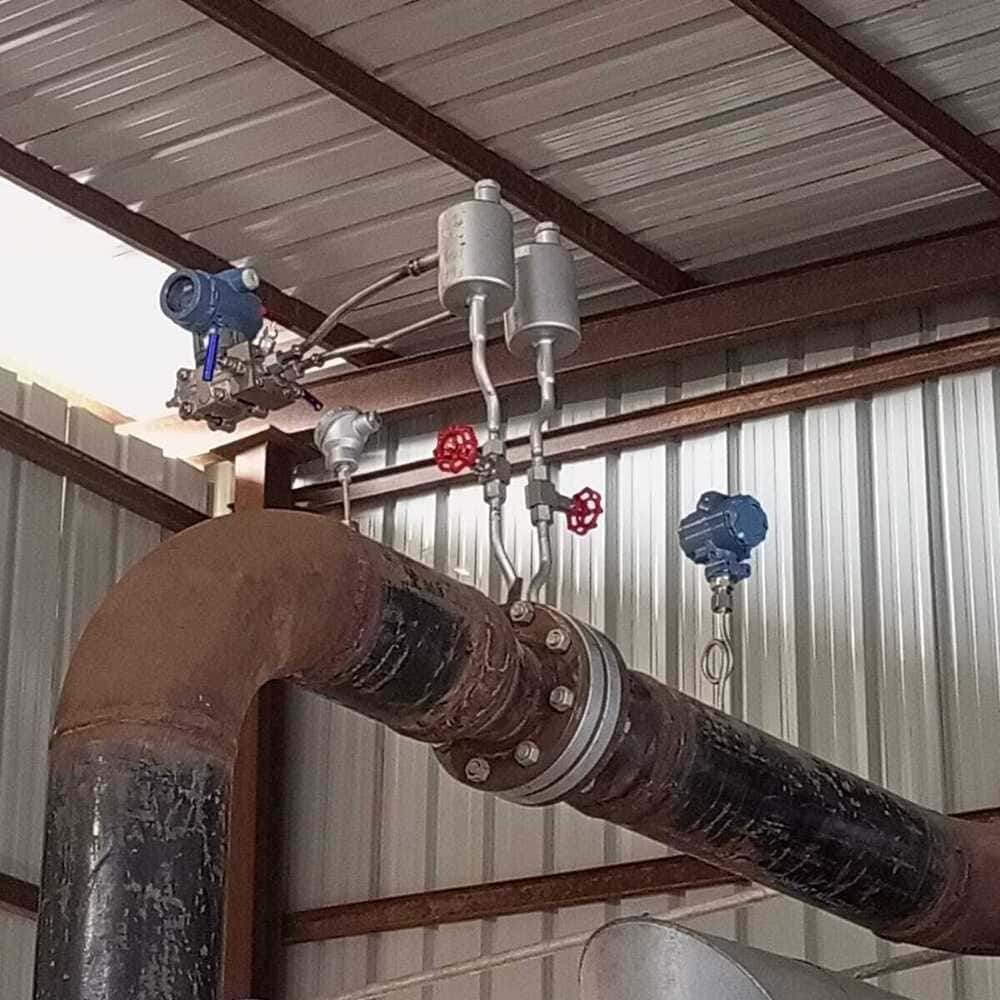

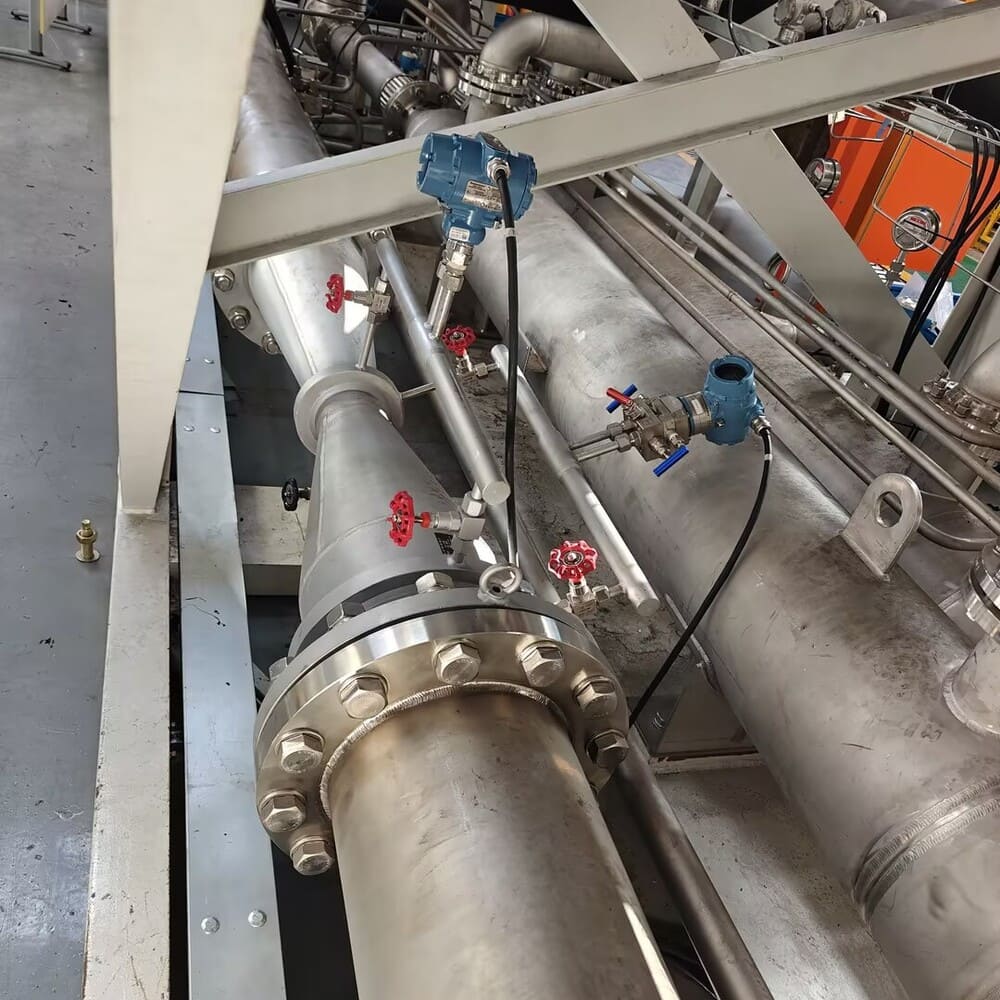

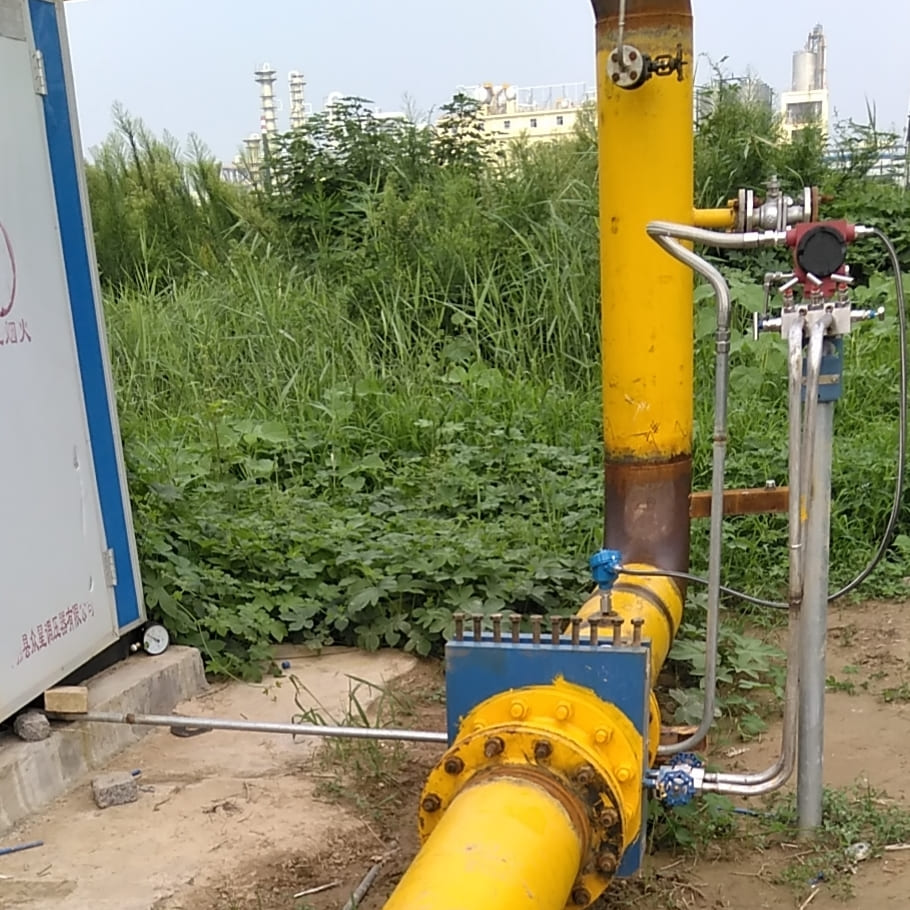

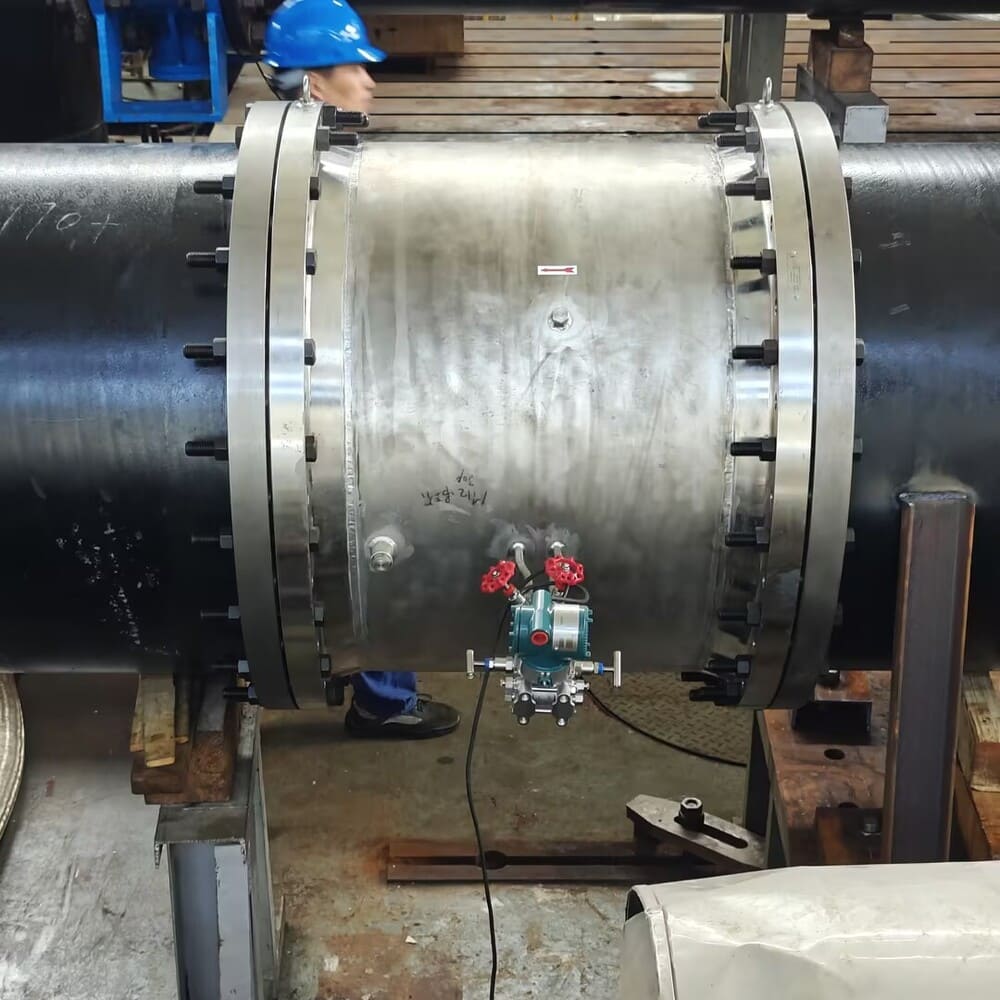

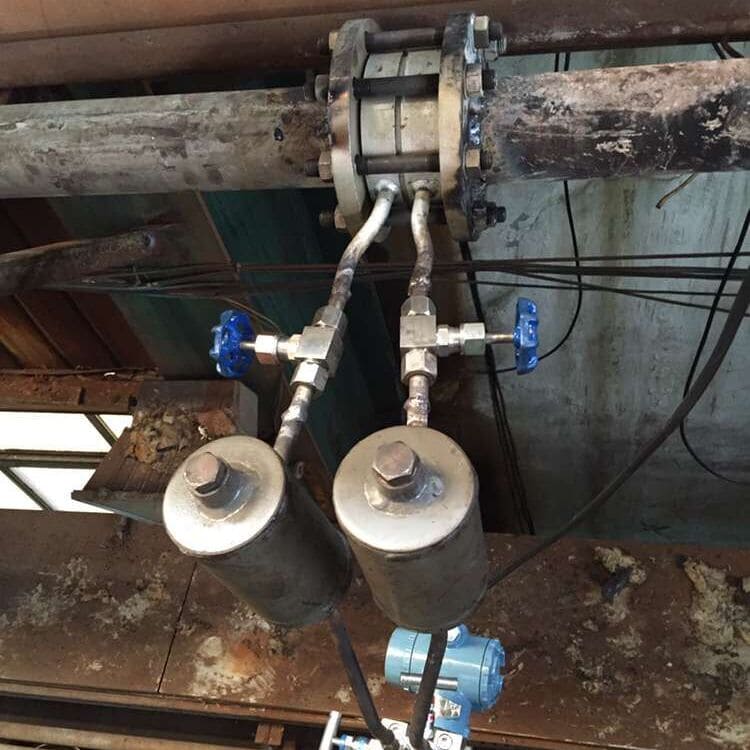

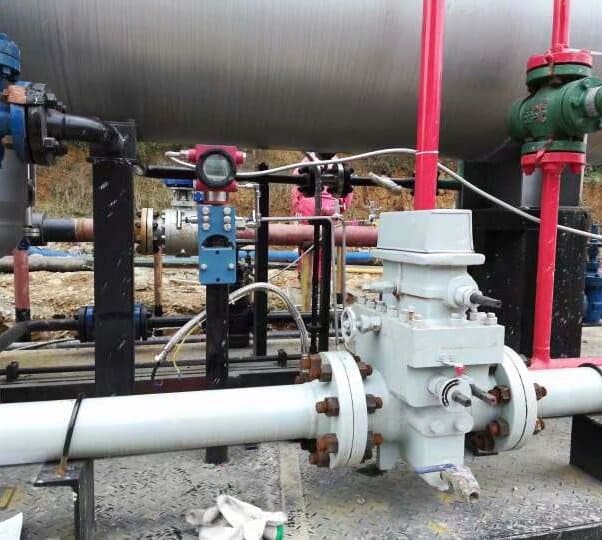

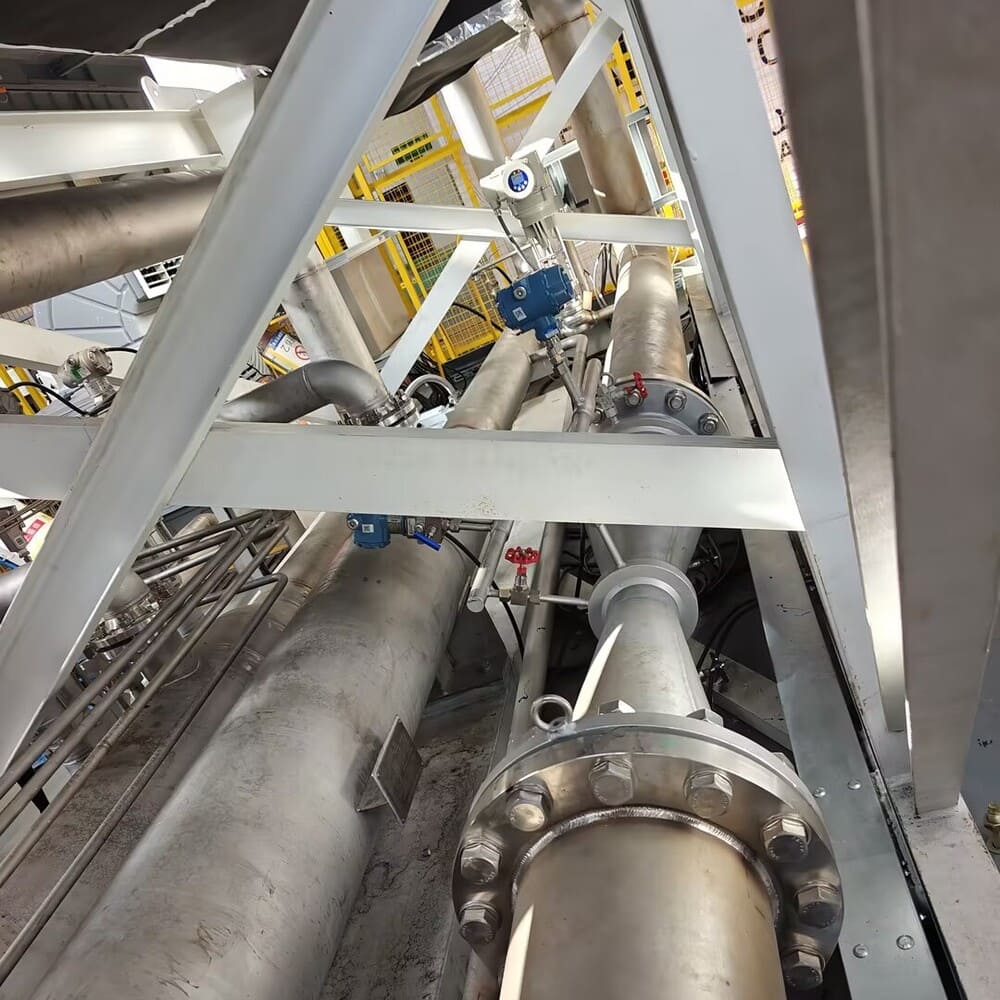

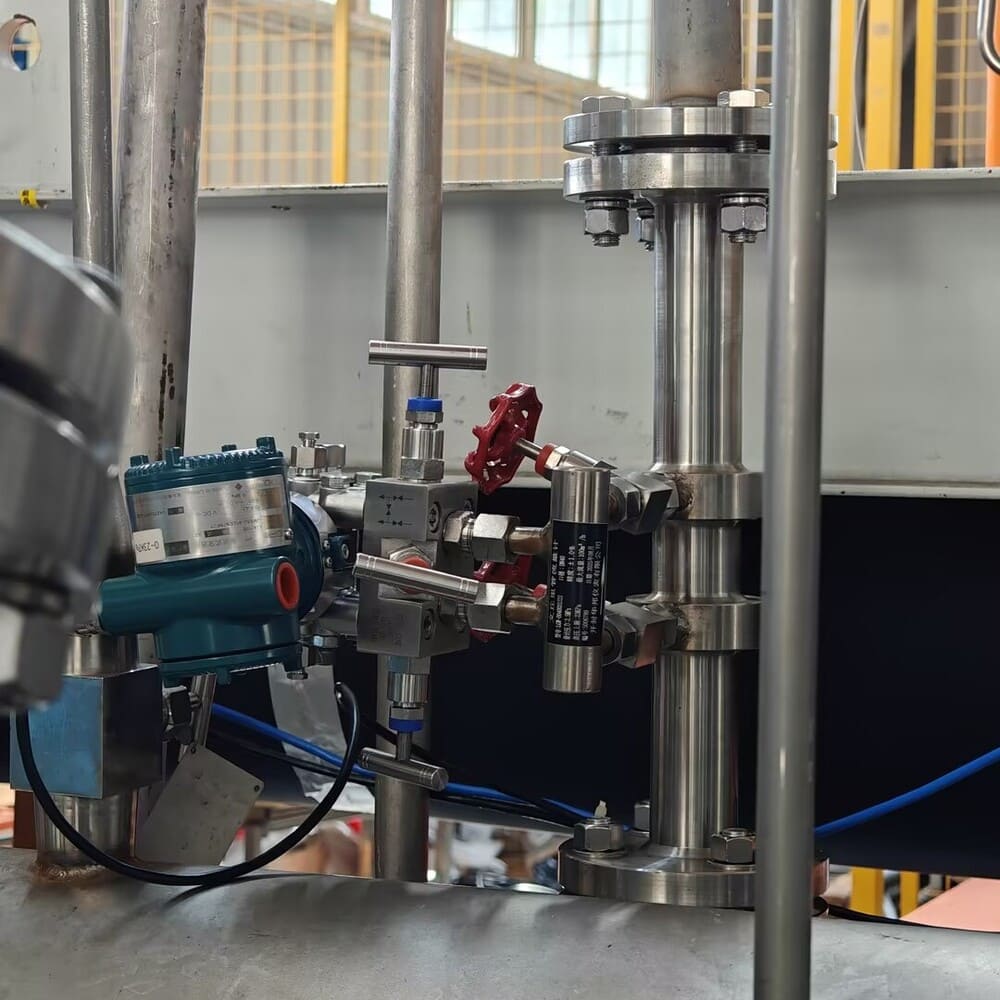

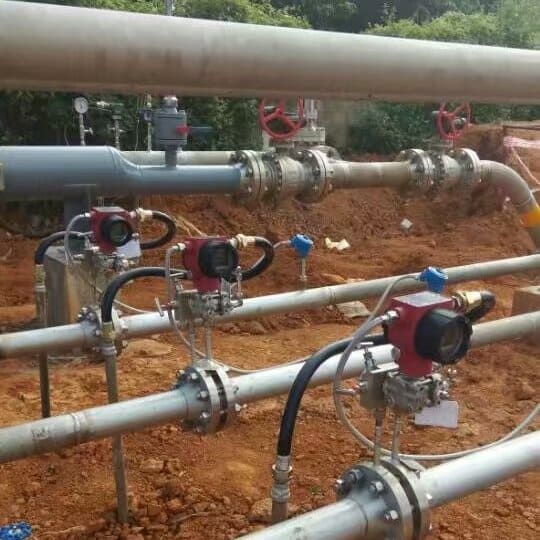

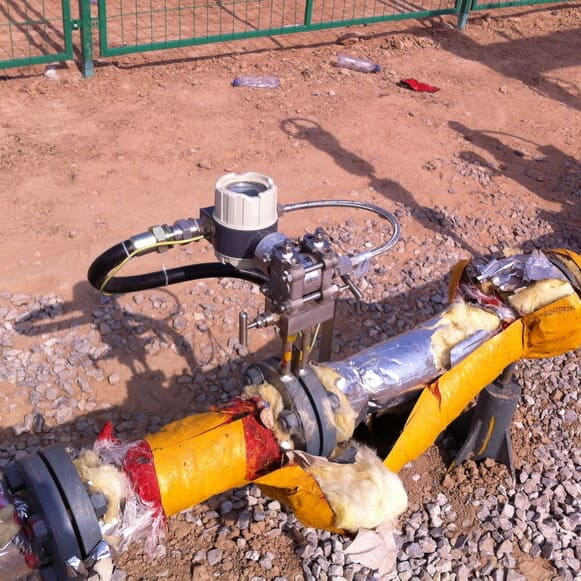

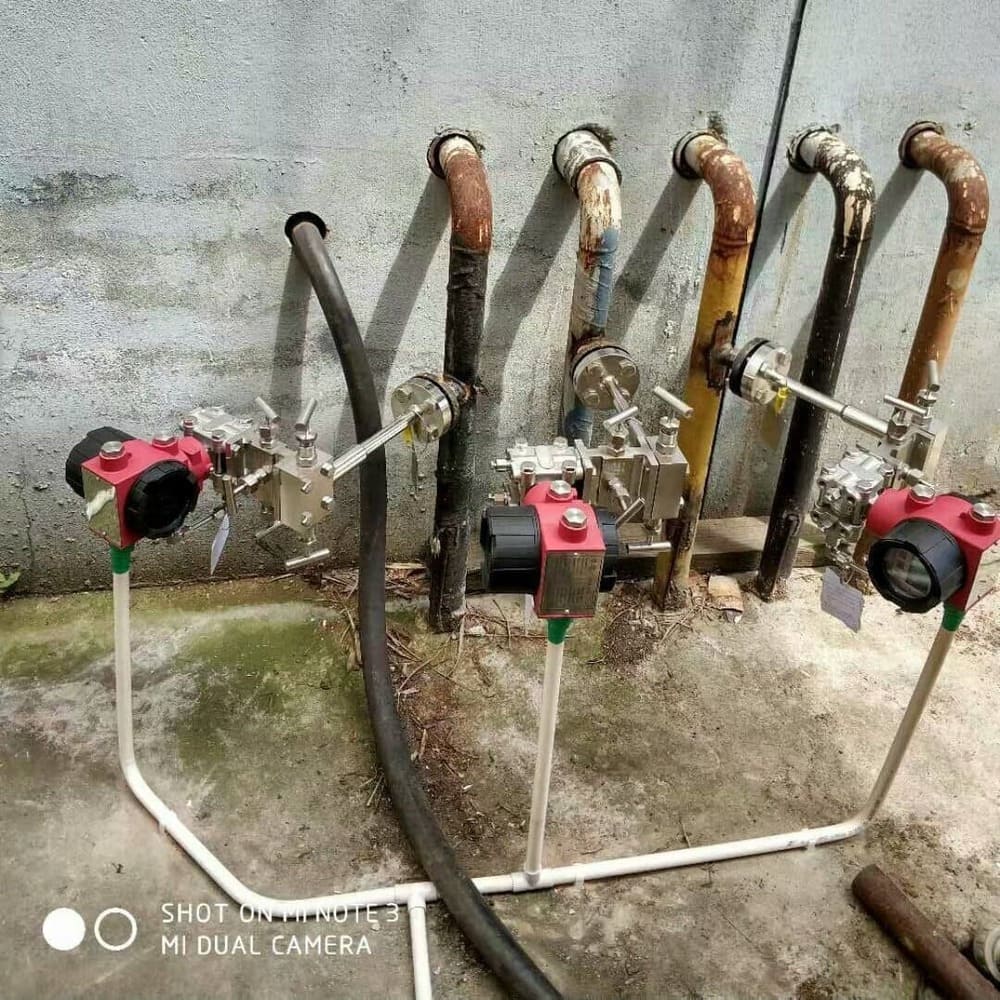

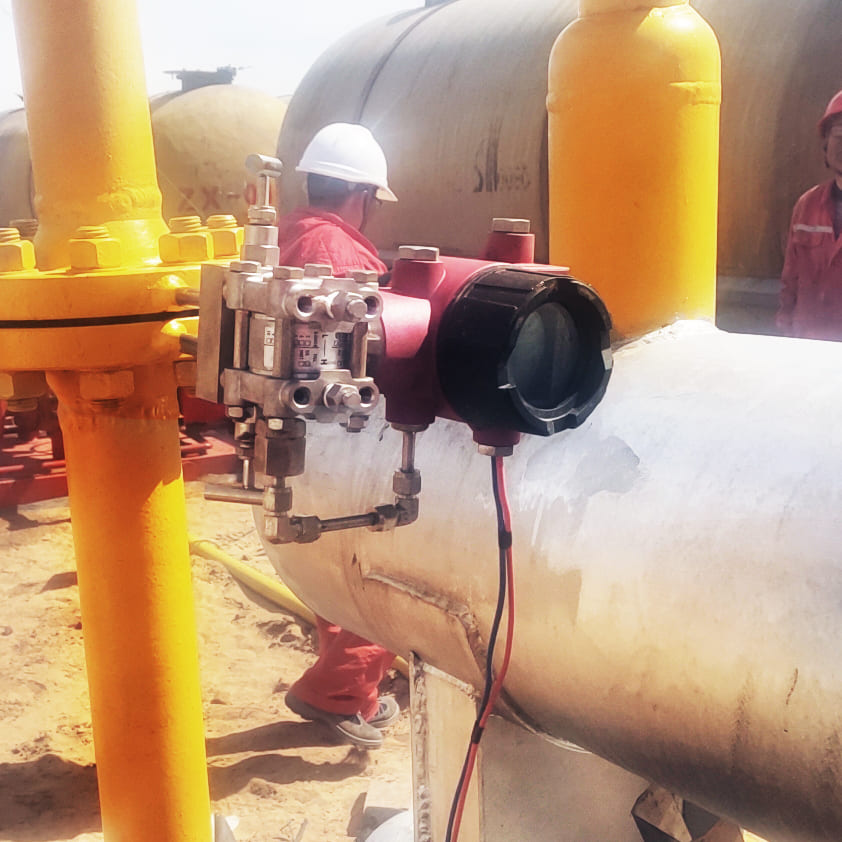

Installation and Application Cases

bricks builder

Here goes your text ... Select any part of your text to access the formatting toolbar. Select any part of your text to access the formatting toolbar.
I am a button

bricks builder

Here goes your text ... Select any part of your text to access the formatting toolbar. Select any part of your text to access the formatting toolbar.
I am a button

bricks builder

Here goes your text ... Select any part of your text to access the formatting toolbar. Select any part of your text to access the formatting toolbar.
I am a button

bricks builder

Here goes your text ... Select any part of your text to access the formatting toolbar. Select any part of your text to access the formatting toolbar.
I am a button

bricks builder

Here goes your text ... Select any part of your text to access the formatting toolbar. Select any part of your text to access the formatting toolbar.
I am a button

bricks builder

Here goes your text ... Select any part of your text to access the formatting toolbar. Select any part of your text to access the formatting toolbar.
I am a button

bricks builder

Here goes your text ... Select any part of your text to access the formatting toolbar. Select any part of your text to access the formatting toolbar.
I am a button

Why Industrial Buyers Choose HBYB Instrument

20+ years of advanced industrial flow measurement & monitoring

Differential pressure flowmeters must be matched to real media, pressure, temperature, and installation conditions. We help you evaluate process conditions, reduce selection errors, and move forward with a solution built for accuracy, durability, and long-term use.
Talk to Engineer
Deep Expertise in DP Flow Engineering
Our engineers understand the real challenges of industrial flow measurement, and recommend solutions based on process conditions, not just specifications, helping users avoid costly mistakes.
Certified Flow Calibration
We offer comprehensive calibration services in our state-recognized labs. By verifying your device’s specific outflow coefficient before shipment, we ensure the high accuracy required for custody transfer.
Strong Engineering Customization
We support product customization for different applications, helping buyers align the meter design, connection, and configuration with real project conditions rather than forcing a generic standard build
Global Infrastructure Experience
With thousands of units deployed across 62 countries, our DP flow solutions have been tested against the toughest environmental variables in the world's most demanding industrial zones.

Get Accurate Flow Measurement

Not sure which DP flowmeter structure fits your process?

Tell us your flow range, pressure, temperature, and installation constraints — our team will recommend a practical solution built for your real process conditions.

Not Ready to Order?

Start with the Right Specification, Not a Product Guess.

Industrial instrumentation decisions don't happen in a single session. These three paths move you from evaluation to confidence — without committing to a purchase.
Download Selection Guide
Review our engineering guide covering element type comparison, pressure-loss considerations, pipe-run requirements, and common application limits to narrow your specification with more confidence.
Request Selection Help
Submit your application conditions
Share your medium, pressure, temperature, pipe size, and flow range. Our engineering team will review your process conditions and recommend the most suitable DP flowmeter configuration within 24 hours.
Get Technical Consultation
Speak with Our Engineers
For complex applications, unusual process conditions, or urgent matters — call our engineering team directly. 24-hours response for urgent requirements.
