Power Generation & Energy Industry Solutions

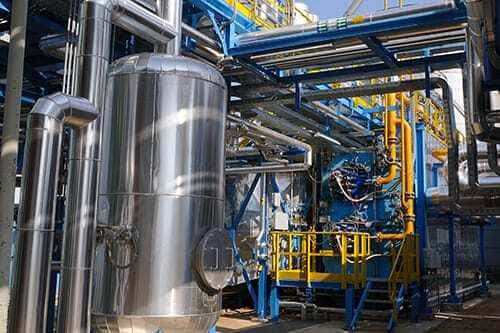

Main steam in coal-fired and gas-fired plants operates at 500–600°C. Turbine flowmeters fail from bearing damage within weeks at these temperatures. Differential pressure meters require impulse lines that are a continuous maintenance burden in high-temperature steam environments. Vortex meters — with no moving parts in the flow path and no impulse lines — are the only practical velocity-based technology for direct steam measurement up to 350°C standard, with high-temperature versions available above that.

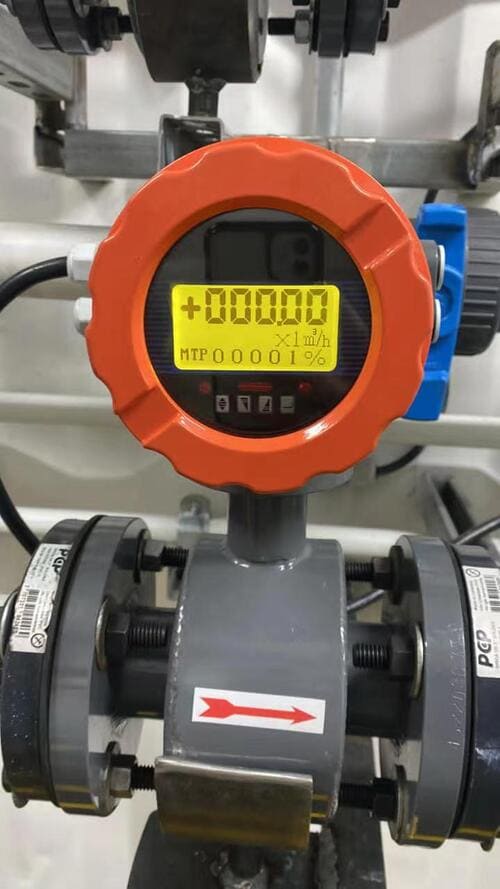

After demineralization or ion exchange, power plant makeup water and polished condensate may have conductivity below 5 μS/cm — the minimum threshold for standard electromagnetic flowmeters. Deploying an EM meter on ultra-pure water produces unstable, unreliable readings. Inline ultrasonic flowmeters measure acoustically with zero dependence on fluid conductivity, making them the correct choice for deionized makeup water and condensate polishing system outlets.

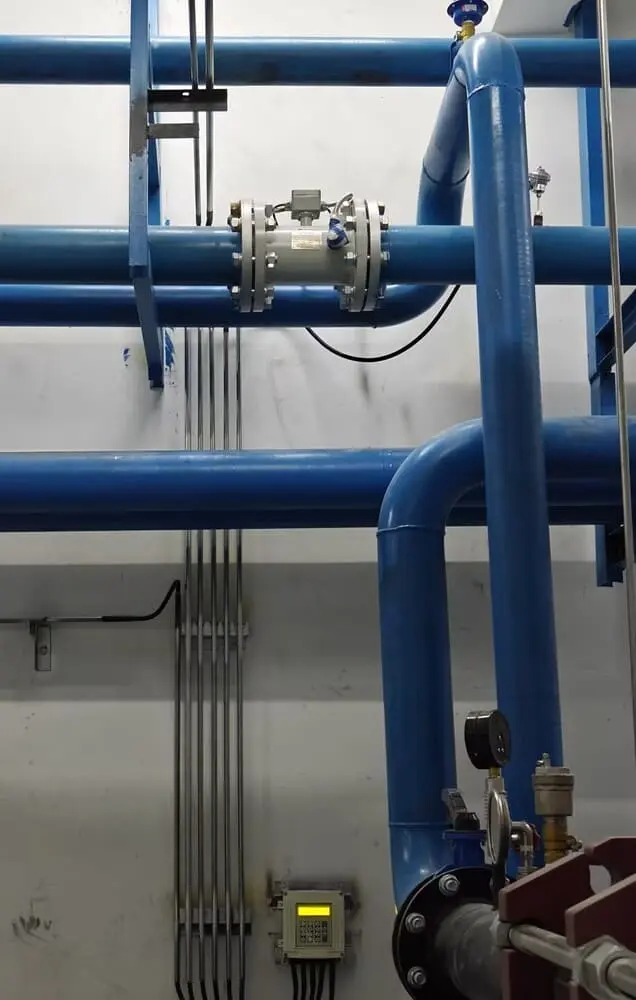

Condenser cooling water headers in large power plants range from DN1000 to DN4000. Full-bore flanged meter installation at these sizes is structurally prohibitive and requires extended plant outage. Any installed meter must also impose zero pressure drop — the condensate pump head budget is already fully allocated. Insertion electromagnetic meters and clamp-on ultrasonic meters solve both constraints simultaneously: single hot-tap insertion or external clamping with zero bore obstruction.

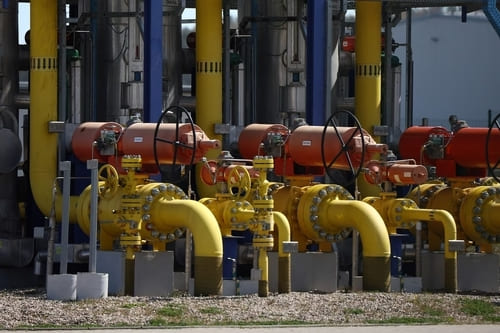

Natural gas to combustion turbines is purchased, billed, and reported in standard volume (Nm³ at standard T/P conditions) — not in operating condition volume which changes with pressure and temperature. A meter that delivers operating condition volume only cannot produce a compliant billing record. Gas turbine flowmeters with integrated temperature and pressure compensation calculate Nm³/h in real time, meeting ISO and AGA fiscal requirements at the gas turbine inlet at a single instrument cost.

Power plants operate from minimum technical minimum (typically 30–40% of rated output) to full load as grid demand changes. At minimum load, steam flow, cooling water flow, and fuel gas flow all reduce proportionally. A meter calibrated only at full-load conditions and with limited turndown will measure inaccurately — or not at all — at part-load. Instruments for power plant service require sustained accuracy from minimum to full load, typically 10:1 to 30:1 turndown, throughout the plant's operating envelope.

Flue gas flow measurement underpins every stack emissions calculation — SO₂, NOx, and CO₂ emission rates are calculated from pollutant concentration multiplied by flue gas volumetric or mass flow. Regulatory frameworks (US EPA, EU IED, national equivalents) specify measurement methods, instrument requirements, and calibration intervals. Insertion thermal mass meters on stack ducts measure flue gas mass flow for CEMS compliance without duct penetration or permanent structural modification to the stack.

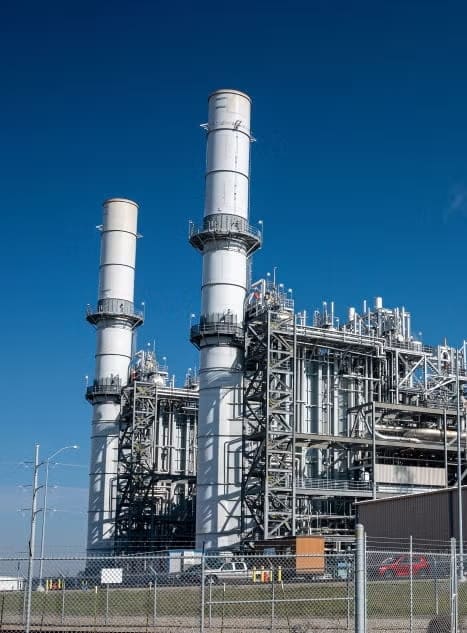

A 400 MW combined-cycle gas turbine plant required upgrading of its fuel gas metering to meet updated ISO 17089 fiscal requirements, while simultaneously adding HRSG steam flow monitoring at each of three pressure levels and verifying chemical dosing rates on the boiler feedwater chemistry control system. Existing volumetric flow computers required separate T&P inputs from three additional transmitters — a maintenance and calibration burden affecting every metering point.

Gas turbine flowmeters with integrated temperature and pressure compensation were installed at the fuel gas supply headers to both combustion turbines, replacing the existing DP meters and separate transmitter loops with a single-instrument Nm³/h output. Multivariable vortex meters were installed at HP, IP, and LP HRSG steam headers for direct mass flow and MWh totalization. Coriolis meters (DN10, high-pressure rated) were installed on the oxygen scavenger and pH adjustment dosing lines.

Fuel gas metering now produces ISO-compliant standard volume records directly, eliminating the quarterly recalculation required with the previous system. HRSG steam mass balance data — previously unavailable — revealed a 3.2% discrepancy between HP steam production and the sum of LP and IP extraction plus turbine admission, which was traced to a leaking HP/IP cross-connection isolation valve. The chemical dosing Coriolis meters confirmed that one oxygen scavenger pump was delivering 28% below setpoint, corrected before any measurable oxygen pitting occurred.
