Pharmaceutical & Biotech Industry Solutions

FDA 21 CFR Part 11 and EU GMP Annex 11 require that every measurement instrument in a GMP-regulated process has a calibration certificate, a material declaration (confirming wetted parts meet 21 CFR 177.2600 or equivalent), and an IQ/OQ/PQ qualification record. A meter without these documents cannot be installed in a regulated area, regardless of its technical performance. HBYB provides full material certificates, factory calibration documentation, and EN 10204 3.1 material declarations as standard on all hygienic-series instruments.

Water for Injection must maintain conductivity below 1.3 μS/cm at 25°C (EP/USP) and is measured in distribution loops at 70–80°C to prevent microbial growth. Standard electromagnetic flowmeters are compatible with WFI by principle — but their wetted materials (lining, electrodes) must be confirmed as non-leaching into an ultra-pure water matrix. Instruments with PTFE or PFA lining and platinum-iridium electrodes are the accepted configuration for WFI loop metering, where even ppb-level leaching is a product purity concern.

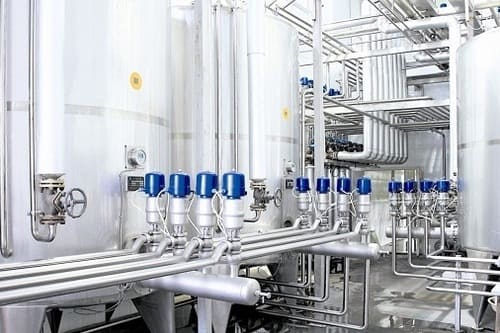

Any cavity, crevice, port recess, or non-drainable pocket in an instrument wetted surface will trap product residue that resists CIP cleaning. In a sterile pharmaceutical environment, this residue becomes a biofilm nucleation site — invisible between cleaning cycles and detectable only through environmental monitoring swabs. Pharmaceutical-grade instruments must use smooth-bore construction, fully drainable sensor bodies, and sanitary tri-clamp connections that are completely swept during CIP. Dead zone elimination is a design criterion, not a performance specification.

Many drug product formulations require dosing active ingredients, excipients, or solvents to ±0.1% mass accuracy — not volumetric accuracy. Volumetric meters require a separate density input (from an inline densitometer or lab sample) to convert volume to mass, adding a second measurement uncertainty. Coriolis mass flowmeters eliminate this: they output mass flow directly, simultaneously measure liquid density, and require no density correction calculation — providing a single, audit-complete mass dose record for every batch event.

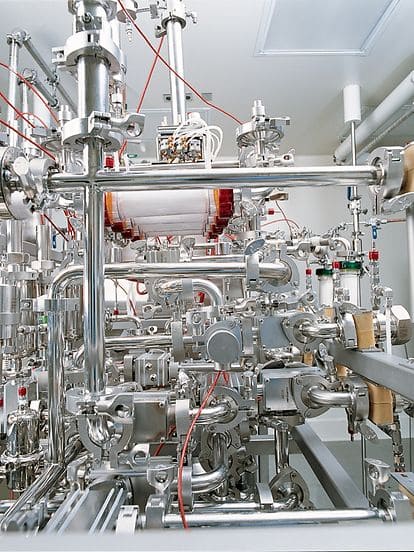

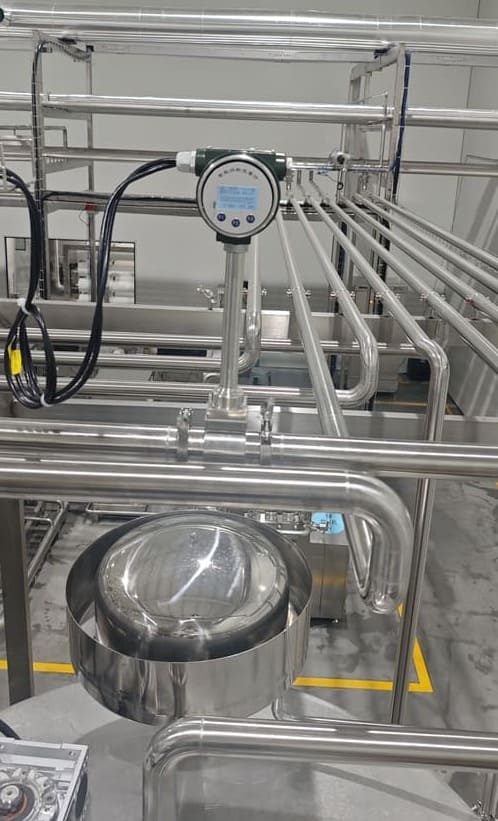

Conventional industrial steam and pharmaceutical clean steam or pure steam have different pressure, temperature, and condensate quality profiles. Pure steam (meeting EN 285 / HTM 2010) is used directly for SIP sterilization of product-contact surfaces at 121°C — and its flow measurement must use instruments with pharma-grade wetted materials, not standard industrial vortex meters. Sanitary vortex flowmeters with 316L SS body and tri-clamp connections measure both saturated and pure steam up to 350°C, compatible with the validation protocols required for SIP processes.

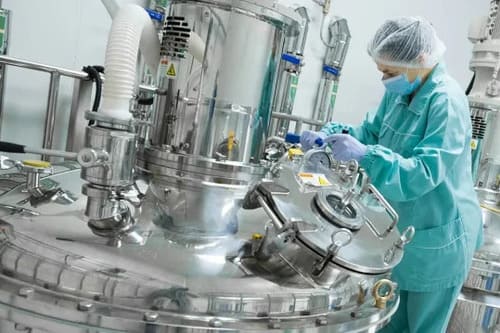

A China biologics manufacturer operating under FDA cGMP received an observation during inspection noting that CIP cleaning records were based on cycle time alone, with no flow-rate verification that cleaning solution had achieved design velocity in all equipment circuits. Concurrently, bioreactor dissolved oxygen control was inconsistent between batches — attributed to variable sparge gas delivery caused by supply pressure fluctuations that the volumetric rotameters in use could not compensate for.

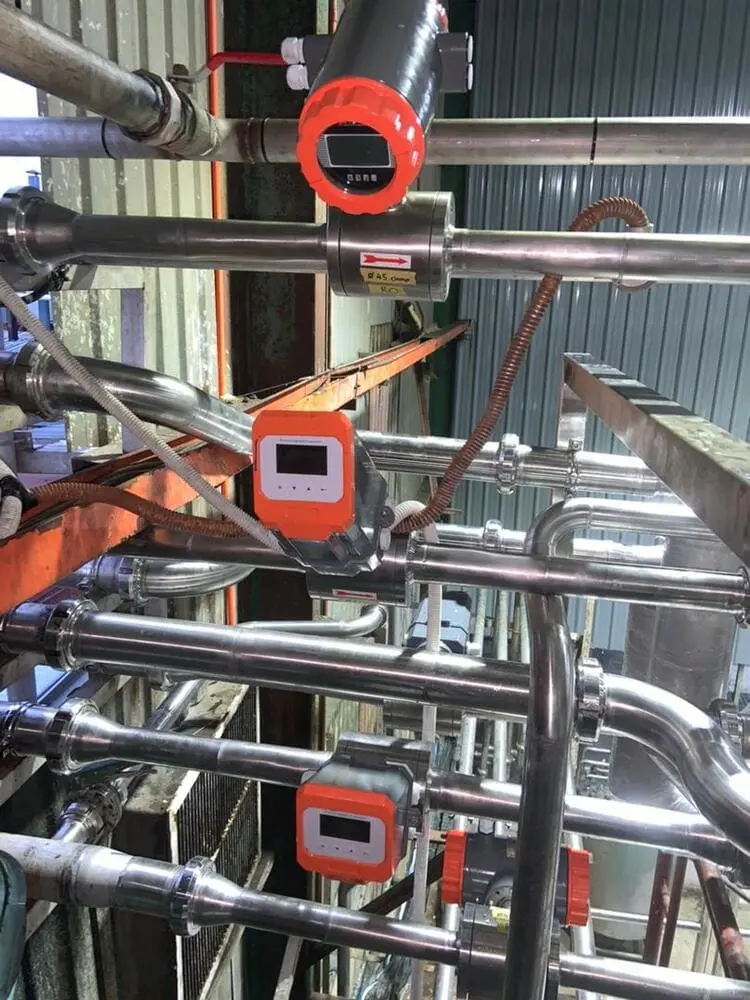

HBYB sanitary magnetic flowmeters (316L SS, PTFE-lined, tri-clamp, IP67) were installed on CIP supply and return circuits for all GMP equipment. Sanitary thermal mass flowmeters were installed on bioreactor O₂ and CO₂ sparge lines, providing direct Nm³/h output independent of header pressure. All meters output 4–20mA to the facility's DCS with batch record integration.

CIP velocity records generated from the first cleaning cycle provided the documented evidence required to close the FDA observation. Bioreactor dissolved oxygen control variance was reduced in the subsequent cell culture campaign, with sparge gas delivery now consistent regardless of facility air pressure fluctuations. GMP batch record completeness improved across all documented production runs.
