Vortex Flowmeter

Reliable Flow Measurement for Steam, Gas, and Liquids

Designed for extreme industrial conditions, our vortex series combines robust stainless steel construction with advanced signal filtering. It ensures accurate, drift-free measurement of steam and compressed air in any industrial environment.

DN15~DN300

Diameter range

±1%

Standard Accuracy

Up to 350°C

Thermal Resilience

Technology Selection

Is Vortex Flowmeter Right for Your Application?

Vortex flowmeters work across a wider range of media than most technologies — but they have specific limitations. Understanding both is the foundation of a correct specification.

Vortex flowmeter excels here

Your medium is steam, gas or low-viscosity clean liquids

Your process operates at high temperature or pressure

Your process cannot tolerate the permanent pressure loss

You need mass flow/volume output from one instrument.

Your flow rate varies significantly

Your process is flammable, explosive or toxic gas

Consider alternatives instead

Conductive liquids where maximum accuracy is required

Your medium has medium or high viscosity

Your medium carries slurries, abrasives, or fibrous media

Your process flow rate is extremely low

Your process contains frequent pulsating or surging flow

Your pipeline experiences severe, constant vibration.

Not sure whether Vortex Flowmeter fits your application?

Submit your medium, operating temperature, pressure, and pipe size — our engineers will confirm whether vortex is the right technology, or recommend a better fit.
Get Technology Confirmation

Performance Advantages

What Vortex Measurement Delivers to Your Process

Vortex flowmeters are trusted in critical industrial utility processes because they deliver sustained precision, require minimal maintenance, and provide reliable performance even in harsh, high-temperature fluid conditions.

Fluid-Insensitive Accuracy

Measurement relies on vortex shedding frequency rather than fluid properties, ensuring high accuracy even when density or viscosity fluctuate during operation.

Maintenance-Free Longevity

Engineered with no moving parts to break or replace, providing a maintenance-free solution that drastically reducing operational downtime and service costs.

Drift-Free Measurement

Operates reliably regardless of changes in fluid density or viscosity, ensuring you get accurate data without the need for constant recalibration.

Minimal Pressure Loss

The aerodynamic vortex generator creates negligible flow obstruction, significantly reducing energy consumption and operational costs across your entire pipeline system.

Extreme Thermal Resilience

Operates continuously in temperatures reaching 350°C, delivering relliable liquid monitoring for demanding high-pressure steam and hot gas distribution lines.

Intelligent Signal Filtering

Advanced digital signal processing isolates the vortex frequency from mechanical vibration, ensuring clean, drift-free output in high-noise factory zones.

Digital Diagnostic Capability

Built-in software spectrum analysis monitors signal quality, providing immediate alerts for process disturbances or upstream flow interference.

Installation Flexibility

Requires minimal upstream straight pipe runs, allowing for precise flow monitoring in crowded pipe galleries and space-constrained mechanical rooms.

Find Your Installation Match

Accurate Flow Measurement Starts with an Accurate Specification

Inline

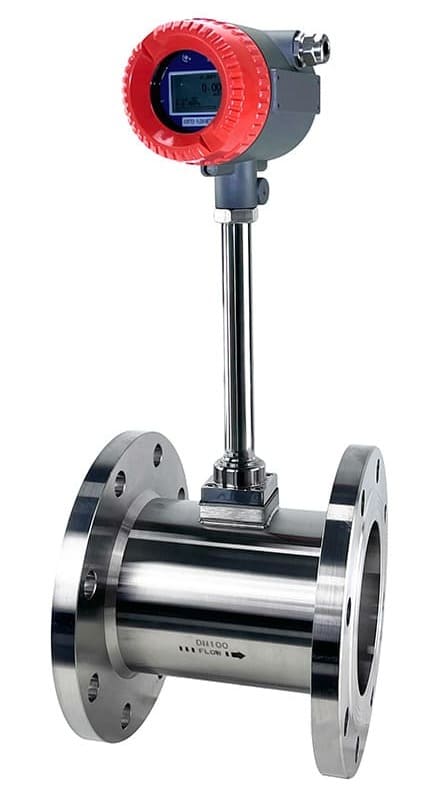

Flanged Vortex Flowmeter

Compact all-in-one design for reliable flow measurement in industrial pipelines.
Pipe Size
DN15 – DN1000
Accuracy
±1.0%/±1.5%
Temperature
–40 – 350°C
Pressure
4.0+ MPa
  • Ideal for Steam distribution, compressed air systems, chemical process piping, industrial utility lines
View Product Details
Compact

Threaded Vortex Flowmeter

Compact, high-precision flow monitoring for small-bore pipelines
Pipe Size
DN15 – DN50
Accuracy
±1.0%/±1.5%
Max Pressure
4.0 MPa
Protection
IP65/IP67/IP68
  • Best for Laboratory instrumentation, small-bore steam lines, compressed gas sampling, instrument air metering
View Product Details
Large Pipe

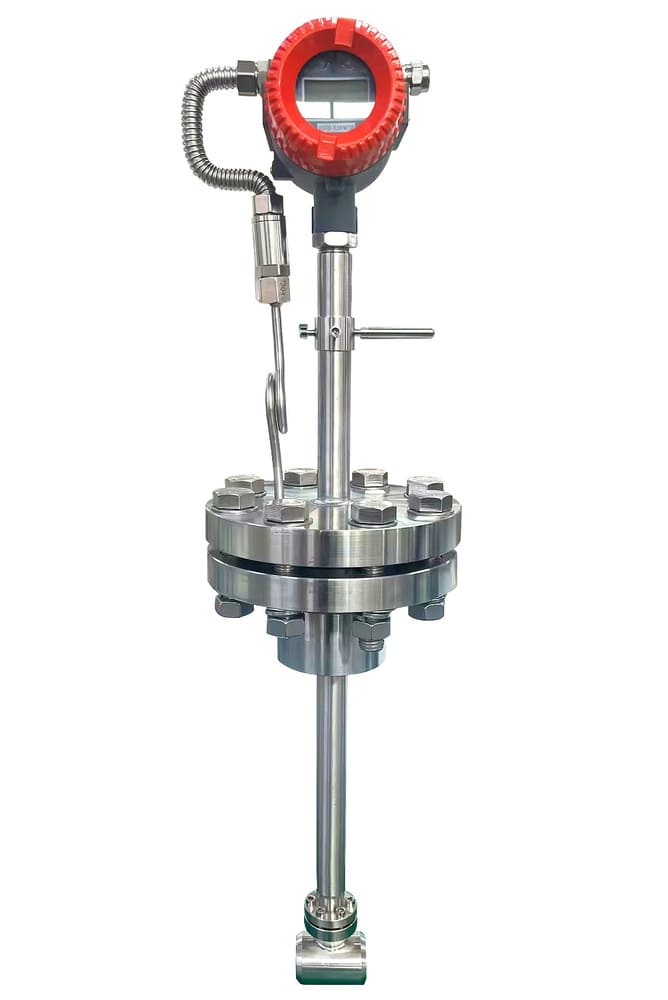

Insertion Vortex Flowmeter

Cost-effective flow monitoring for large pipelines without full pipe modification.
Pipe Size
DN100 – DN3000
Accuracy
±2.5%
Temperature
–40 – 350°C
Installation
No shutdown
  • Ideal for existing large-diameter mains and retrofit applications where pipeline shutdown is not feasible
View Product Details
Hygienic

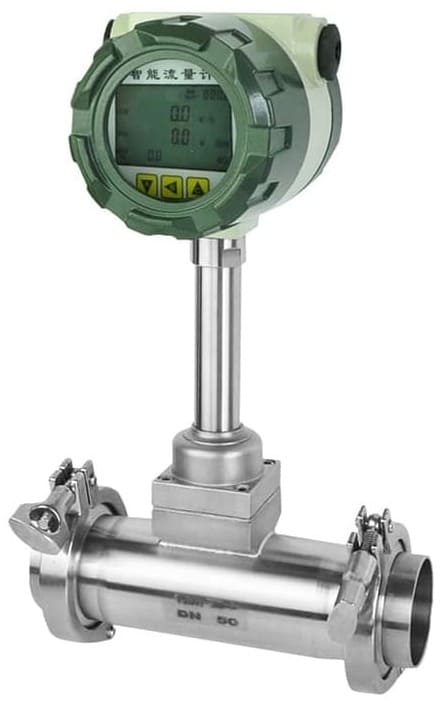

Sanitary Vortex Flowmeter

Fully CIP/SIP compliant for pharmaceutical and food-grade processes.
Pipe Size
DN15 – DN200
Accuracy
±1.0% liquid
Output
RS485 + GPRS
Cleaning
CIP/SIP Ready
  • Ideal foreverage production, dairy processing, pharmaceutical clean utilities, food ingredient metering
View Product Details
Gas Optimised

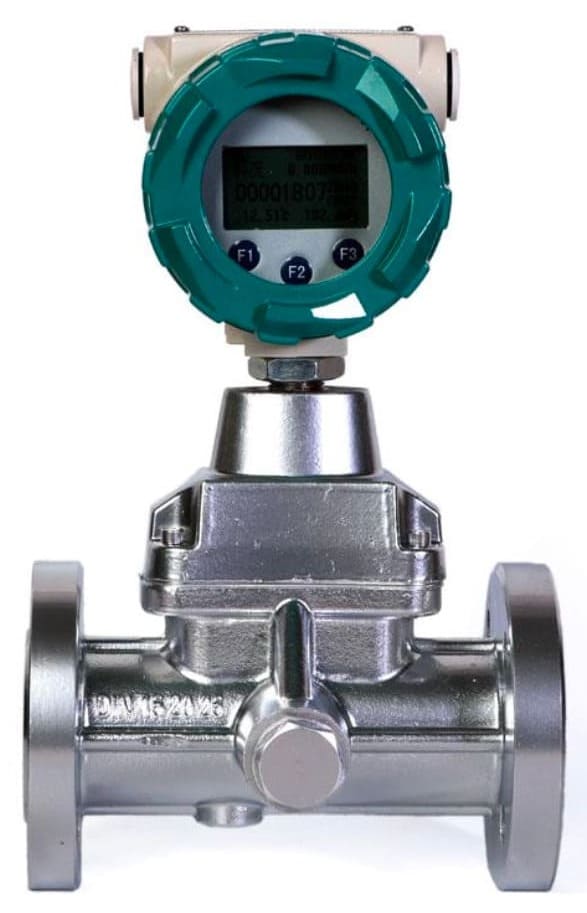

Gas Vortex Flowmeter

Optimised signal conditioning and sensitivity calibration for gas measurement
Pipe Size
DN15 – DN1000
Accuracy
±1.5% gas
Max Pressure
4.0 MPa
Medium
Gas
  • Best for Natural gas distribution, compressed air metering, nitrogen and oxygen lines, industrial gas supply
View Product Details
Multivariable

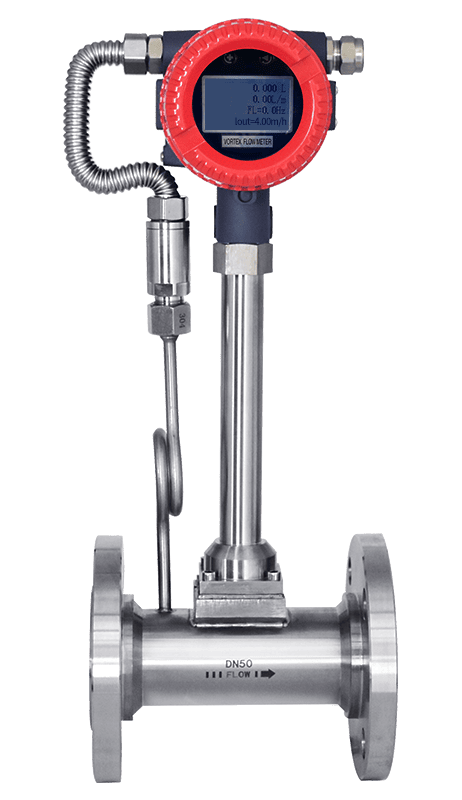

Multivariable Vortex Flowmeter

Outputs real-time mass flow and standard volume without external flow computers.
Pipe Size
DN25 – DN300
Accuracy
±1.0% liq / ±1.5% gas
Measured
Flow/Temp/Pressure
Output
Mass flow/volume
  • Best suited for Steam energy accounting, gas custody transfer, compressed air monitoring, process mass balance
View Product Details
Industry Applications

Industries & Applications

    Pulp & Paper Operations

    Clean steam utility lines, chemical additive vapor recovery, and paper drying-line steam monitoring for consistent moisture and temperature control.

    Steam Energy Accounting

    Monitoring saturated and superheated steam supply lines, boiler-to-plant energy metering, steam leak auditing, and heat transfer efficiency analysis in industrial thermal networks.

    Metallurgy & Steel Processing

    Furnace combustion gas regulation, oxygen and fuel gas mixing lines, and high-velocity gas cooling processes where thermal durability is critical.

    Chemical & Petrochemical

    Inert gas blanketing, volatile solvent vapor processing, process gas flow control, and high-temperature hydrocarbon flow measurement in hazardous zones.

    Power & Utility Networks

    Boiler combustion air control, flue gas emission tracking, demineralized water circuits, and district steam distribution for large industrial power generation facilities.

    Natural Gas Distribution

    Fiscal metering for natural gas networks, commercial sub-metering for industrial parks, and high-pressure supply line monitoring for precise gas custody transfer.

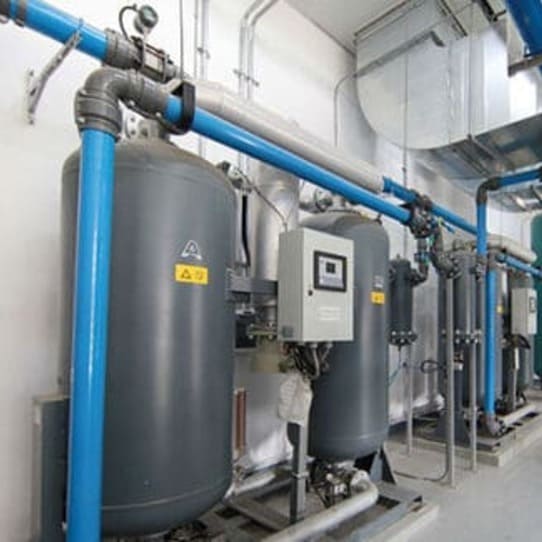

    Compressed Air Auditing

    Main distribution header monitoring, leak detection in plant air grids, and compressor load analysis to optimize energy efficiency in large manufacturing facilities.

    HVAC & District Heating

    Large-scale chiller plant metering, district heating/cooling energy billing, and flow monitoring for high-temperature closed-loop water or steam circuits.

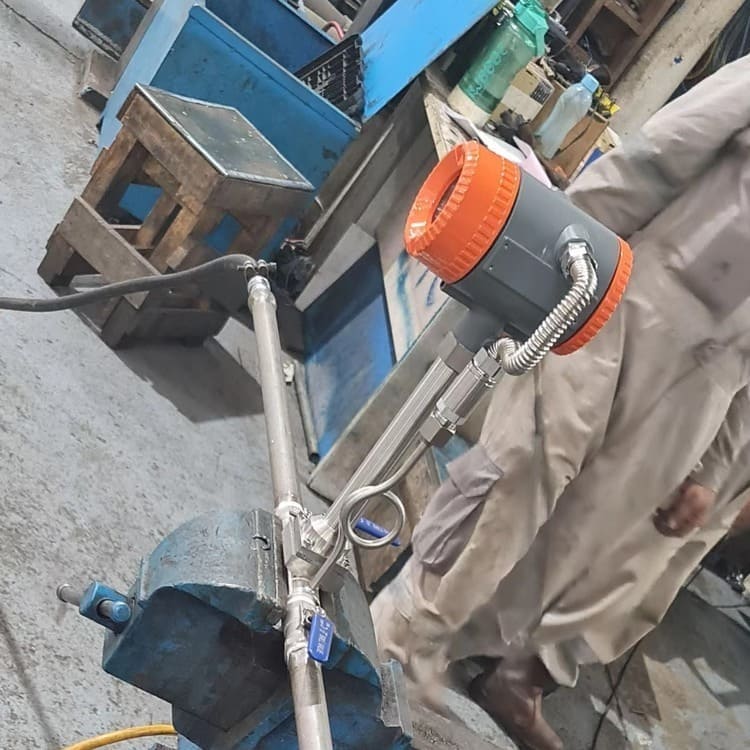

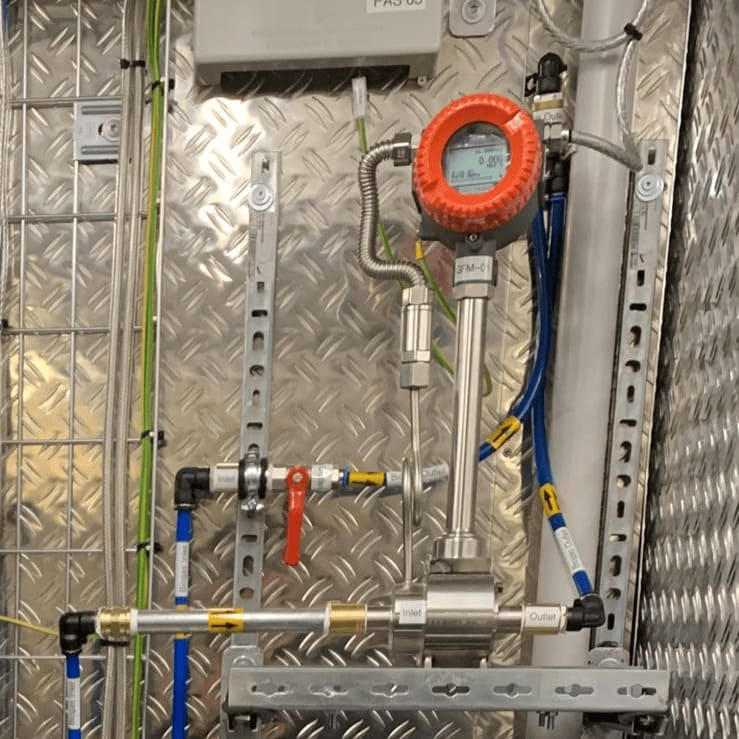

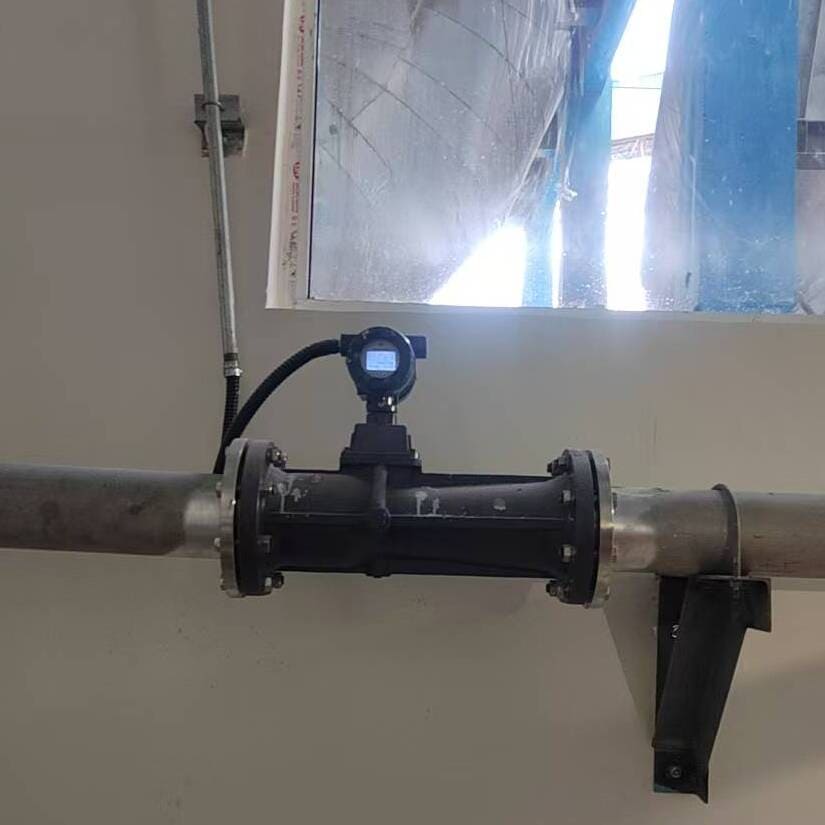

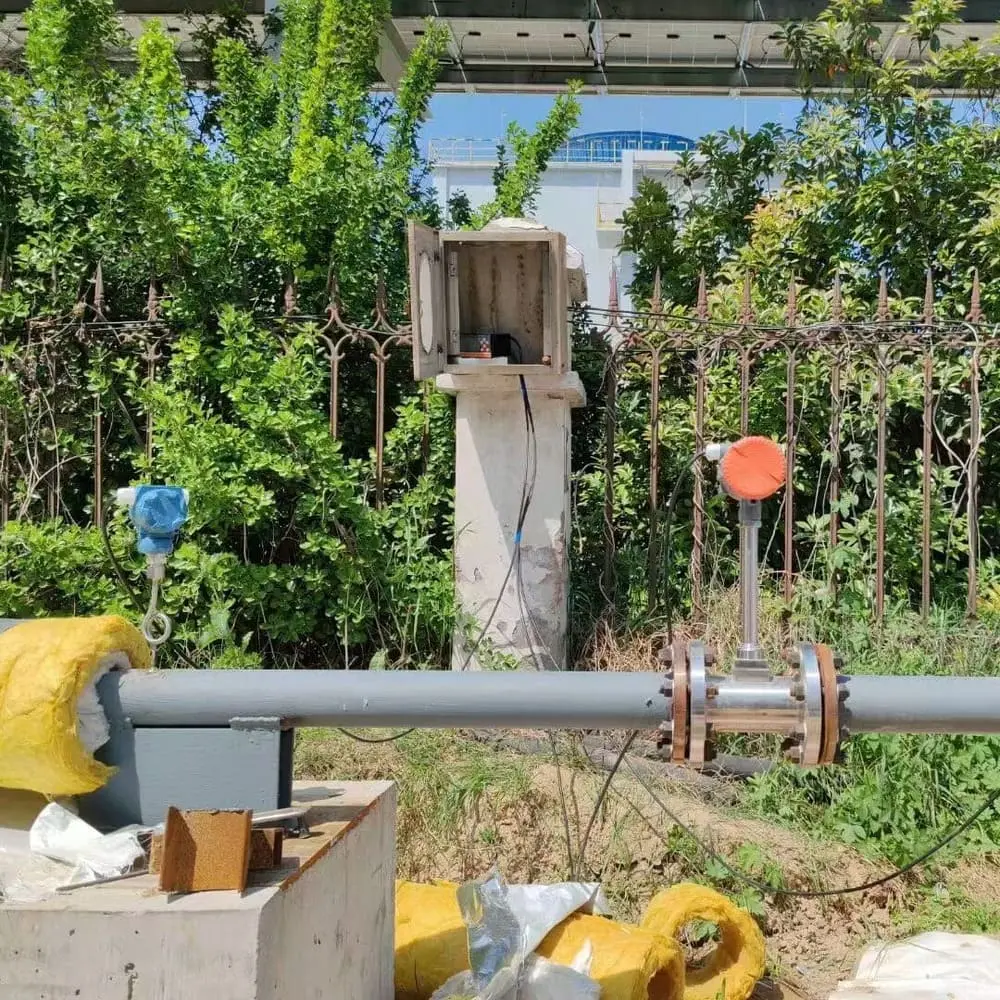

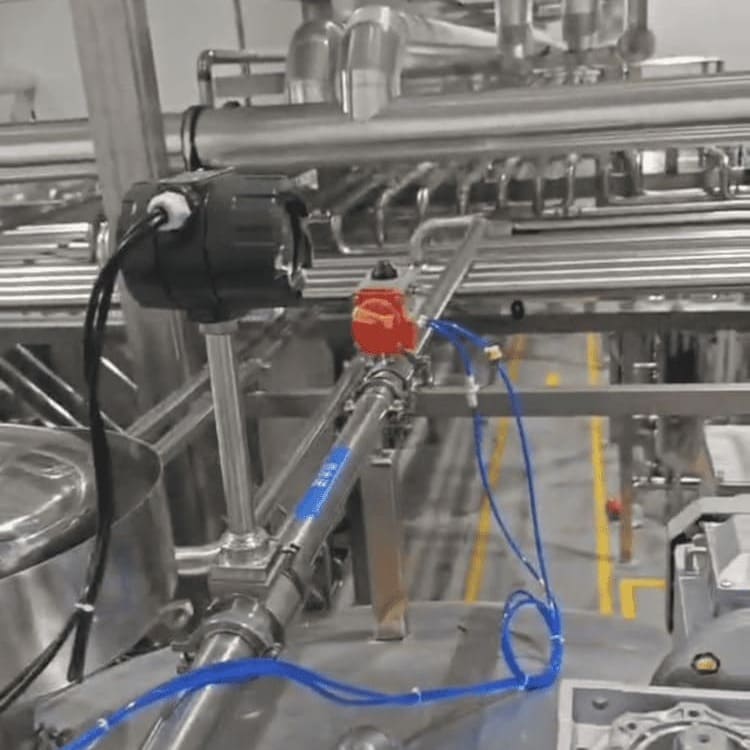

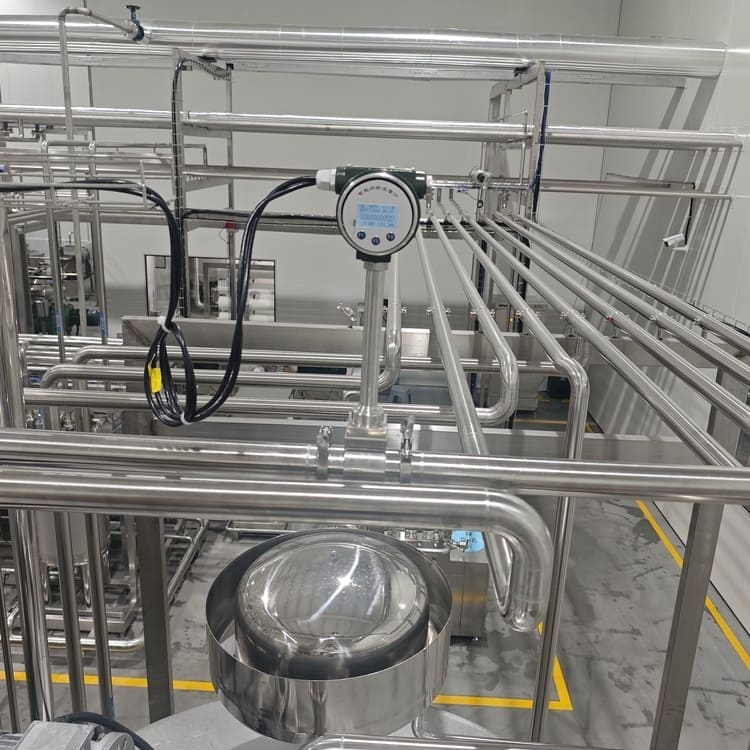

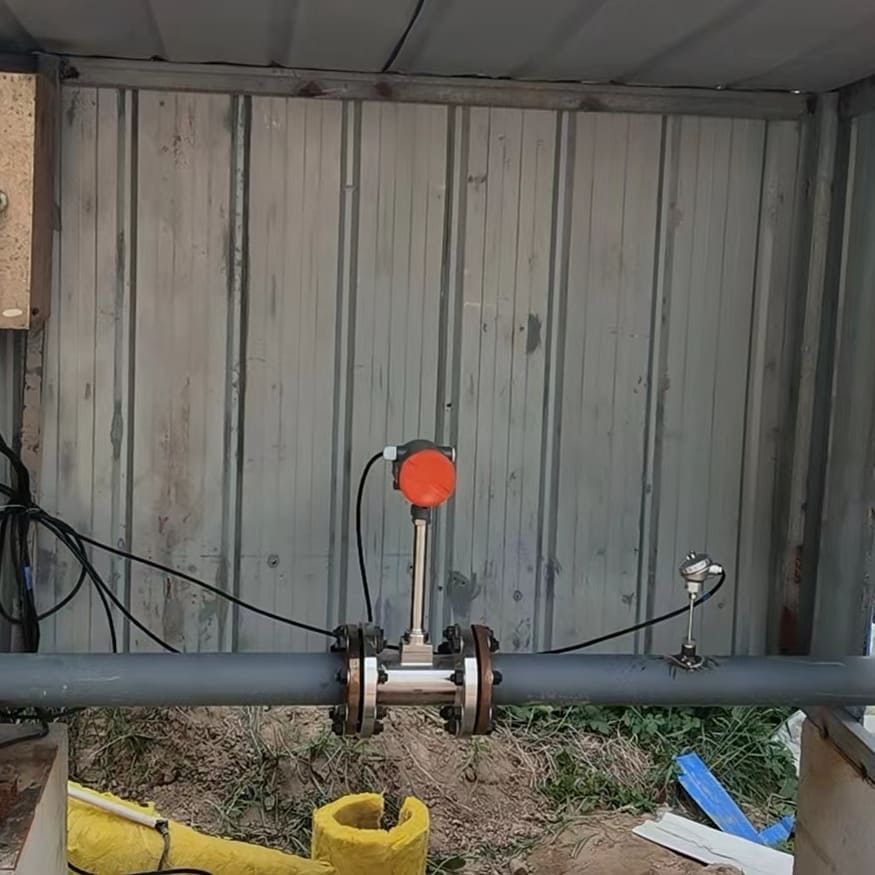

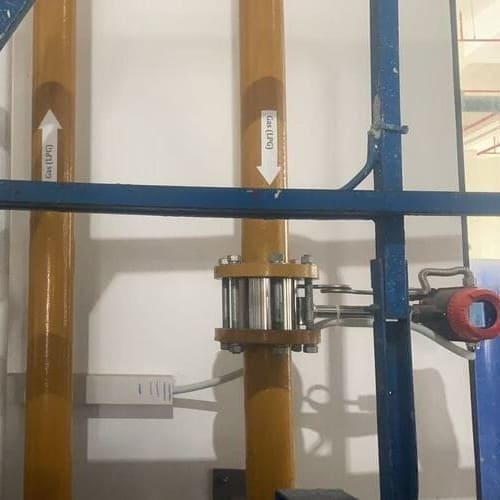

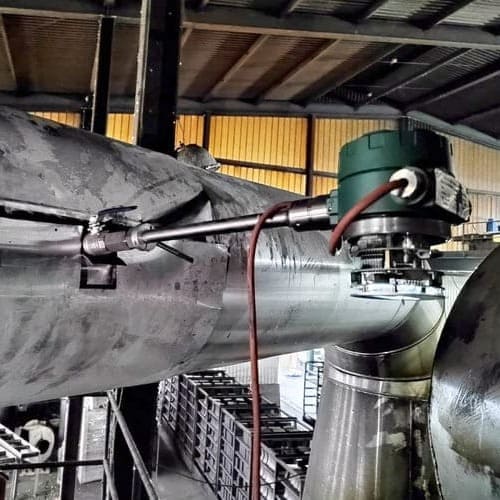

Installation and Application Cases

bricks builder

Here goes your text ... Select any part of your text to access the formatting toolbar. Select any part of your text to access the formatting toolbar.
I am a button

bricks builder

Here goes your text ... Select any part of your text to access the formatting toolbar. Select any part of your text to access the formatting toolbar.
I am a button

bricks builder

Here goes your text ... Select any part of your text to access the formatting toolbar. Select any part of your text to access the formatting toolbar.
I am a button

bricks builder

Here goes your text ... Select any part of your text to access the formatting toolbar. Select any part of your text to access the formatting toolbar.
I am a button

bricks builder

Here goes your text ... Select any part of your text to access the formatting toolbar. Select any part of your text to access the formatting toolbar.
I am a button

bricks builder

Here goes your text ... Select any part of your text to access the formatting toolbar. Select any part of your text to access the formatting toolbar.
I am a button

bricks builder

Here goes your text ... Select any part of your text to access the formatting toolbar. Select any part of your text to access the formatting toolbar.
I am a button

Why Global Industrial Buyers Partner with HBYB Instrument

20+ years of advanced industrial flow measurement & monitoring

Accurate flow measurement depends on both technology and expertise. We combine practical engineering knowledge with reliable manufacturing to support demanding industrial applications.
Talk to Engineer
Engineering-Led Solutions
We analyze your process conditions—not just pipe size—to recommend the ideal vortex meter. This prevents costly "over-speccing" and ensures the device matches your real-world flow dynamics.
Reliable Manufacturing and Quality Control
Manufacturing excellence is our baseline. We utilize advanced calibration equipment to ensure every flow meter delivers repeatable, high-precision performance upon startup.
Agile Customization Support
From sensor material selection to specialized signal conditioning, we provide the flexibility to customize our flow meters to meet the demands of your unique pipeline layout.
Proven Global Track Record
Our flowmeters support mission-critical infrastructure in 62 countries. We leverage deep, real-world field experience to deliver stable measurement solutions for your specific process conditions.

Get Accurate Flow Measurement

Precision Flow Management Begins with Precise Engineering

Vortex measurement is only as good as its configuration. Our team ensures your meter is optimized for your process to deliver standardized, high-accuracy data every time.

Need Technical Support to Choose?

Use our resources to validate your decision—get the expert data you need to specify with absolute confidence.

Download Selection Guide
A technical guide to help you choose the right vortex flowmeter based on process conditions, installation constraints, and gas/steam characteristics.
Request Selection Help
Submit your application conditions
Share your medium, pressure, temperature, and pipe diameter. Our team returns optimized material and configuration suggestions within 24 hours.
Submit Application Data
Speak with Our Engineers
For complex steam applications, unusual process conditions, or urgent inquiries— call our engineering team directly. 24-hours response for urgent requirements.
